4K DisplayPort IP KVM Matrix Extender

Model No.: KFP286K

High Resolution: This DP IP KVM matrix extender supports up to 3840 x 2160@60Hz, and it support USB2.0 and 2 channel digital audio.
Low Latency: Support lossless and low latency video transmissions.
Transmission Rate: The USB transmission rate can be up to 480Mbit/s, which improves the speed of dealing with data. And the transmission is done through fiber and network.
Connections: Point-to-point (p2p) connection and Matrix connection.
User-friendly Funtions: It supports seamless switching and allow remote computer power on and off.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

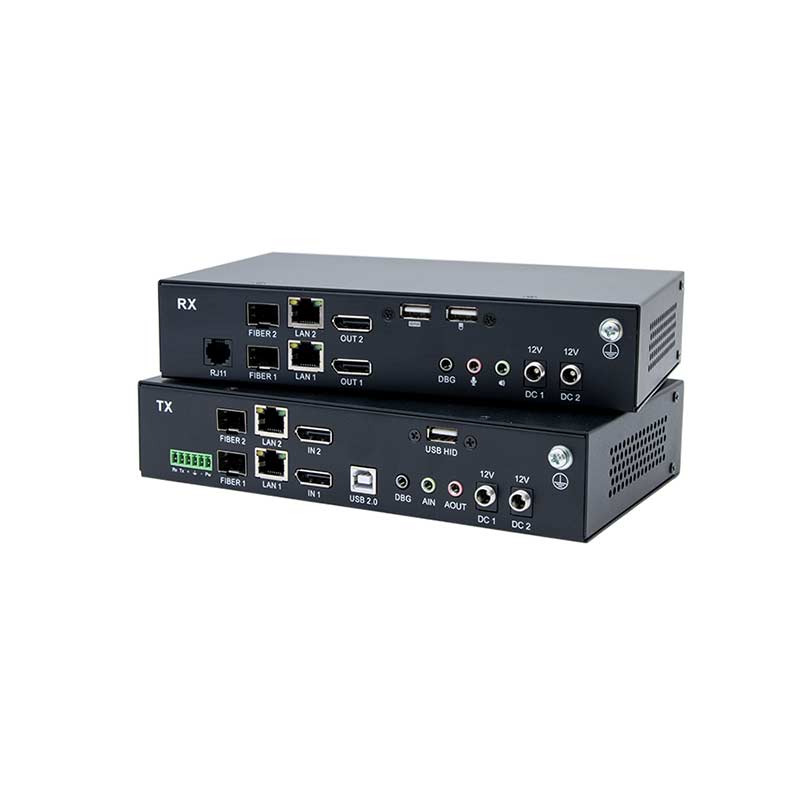

Kinan KFP286K IP KVM matrix extenders (KFP286_TX & KFP286_RX) are highly optimized with impressive features. The supported resolution is up to 3840 x 2160@60Hz. They support point-to-point (P2P) connection and matrix connection. And the transmission distance of the point-to-point connection is 200m. Additionally, the matrix switching system supports up to 9999 nodes by using a centralized management software, and it can support 40 nodes without using a centralized management software.

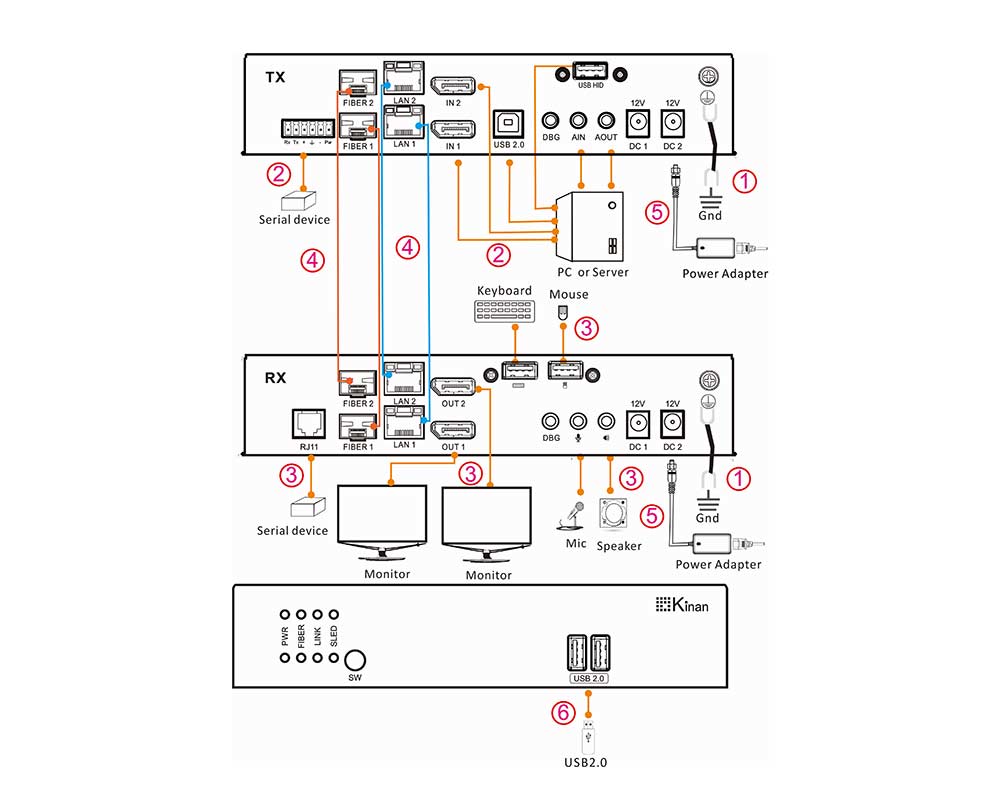

Diagram

Specification

Specifications		KFP286K _TX	KFP286K_RX
Connections	DisplayPort input	2	N/A
	DisplayPort output	N/A	2
	Power	2x 12V	2x 12V
	LAN port	2x RJ45	2x RJ45
	Optical Module	2x SFP+	2x SFP+
	Mic	3.5mm Stereo Jack (Green)	3.5mm Stereo Jack (Pink)
	Speaker	3.5mm Stereo Jack (Pink)	3.5mm Stereo Jack (Green)
	Square USB	1	N/A
	USB	1	4
Resolution		3840×2160@60Hz
Cable		CAT5e/6/7 or Optical Fiber Cable
I/R Value		DC12V / 3A	DC12V / 3A
Power consumption		15W	16W
Operating temperature		0—50 ℃
Storage temperature		-20—60 ℃
Humidity		0—80% RH, non-condensing
Material		Metal
Net weight(kg)		0.94 kg	0.94kg
Product dimension (W × D × H)		212mm x 124.3 mm x 44mm
Package dimension (W × D × H)		243mmx 209mm x 98mm	243mmx 209mm x 98mm
