32 Port Cat5 LCD KVM Switch with A 19″ Monitor

Model No.: LC1932

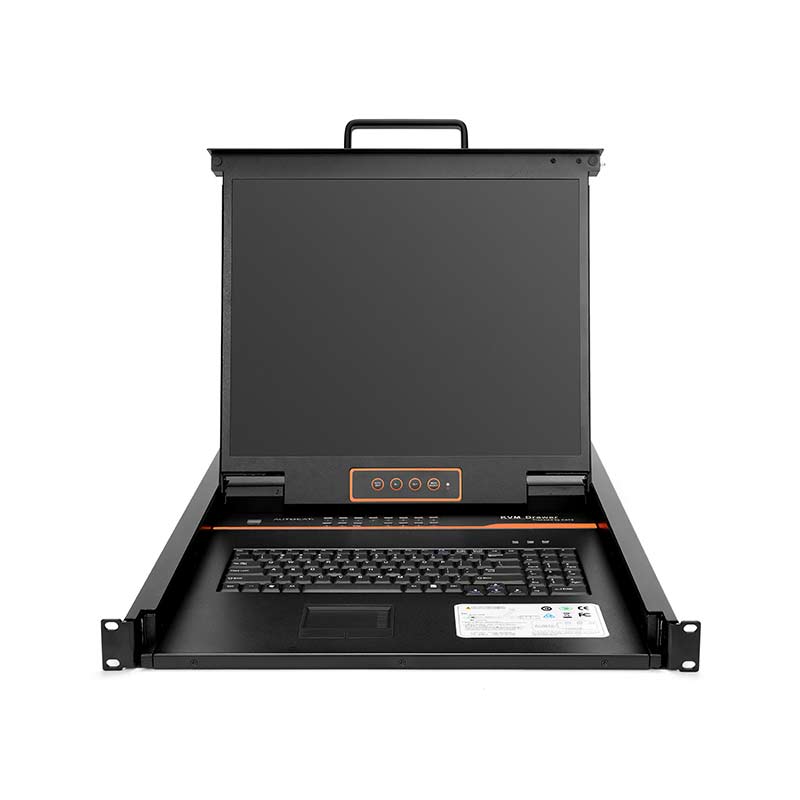

Hardware Structure: Created with a 19″ LCD monitor, ultra slim 99 keys keyboard (PS/2) with small numeric keyboard, and a touchpad.
Control of Computers: Control and manage up to 32 computers.
High Video Resolution: The max resolution it supports is 1280 x 1024 @60Hz.
Computer Switching Methods: Front panel LEDs, keyboard hotkey, and on-screen-display (OSD) menu.
User-friendly Viewing Angle: The LCD module of this LCD KVM switch can be opened up to 108 degrees to provide a great viewing experience.
Standard Cat5 connection: Connect to a server or computer via standard RJ-45 connectors and Cat5e/6 cables.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

Kinan LC1932, a 32-port Cat5 LCD KVM switch with a 19″ monitor, occupying only 1U height space. 32 computers can be controlled from this single KVM switch (keyboard, mouse, and monitor) conveniently.
Also, the installation of this LCD switch is very simple and easy, You just need to connect the cables to the ports of switch and its modules properly without sofrware configuration. When cascading to another 31 KVM Switches, a single LC1932 can control up to 1024 computers.
Kinan LC1932 can connect multiple computers with RJ-45 connector and CAT5 connecting cables. The Transmission distance is up to 100M, so it doesn’t need a KVM extender.

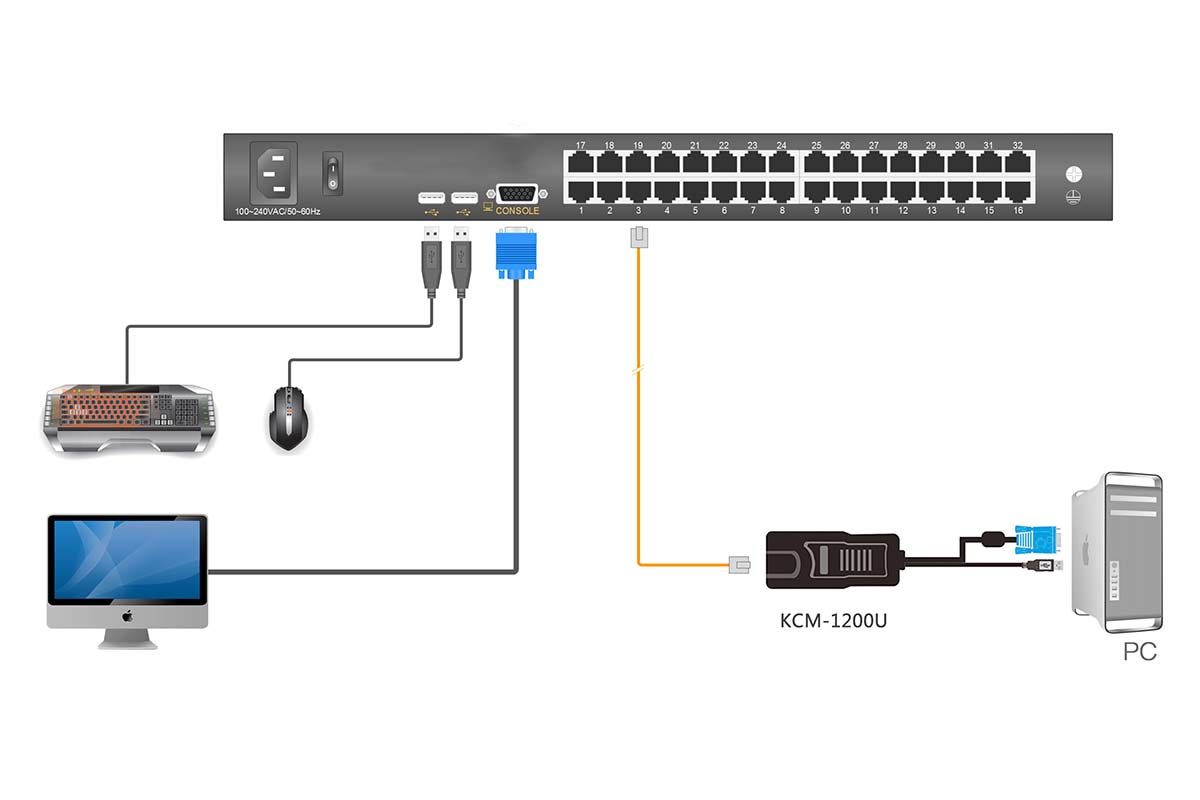

Diagram

Specification

Model		LC1932
Computer connections	Direct	32
	Max	1024
Port emulation	Keyboard, mouse	PS/2，USB
LCD monitor	LED model	SXGA TFT
	View area	19″
	Optimum resolution	1280×1024@60Hz
	Display color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	1000 : 1 （ T y p ）
	Pixel pitch(mm)	0.2928(H) × 0.2928(W)
Mouse	X/Y resolution	>1000 points / inch,（ 40 points/mm ）
	Touchpad with trackball	Eliminates the need for an external mouse
Keyboard		99 keys （82 keys main keyboard +17 independent small number pad）
Port selection		pushbuttons, hotkeys , OSD menu
Input power		100V- 240Vac , 50-60Hz , <1.5A
Power consumption		23W
Mounting distance		716~825mm ( L=262mm)
		Mounting rails can be customized for other mounting distance.
Operating temperature		0 — 50 ℃
Store temperature		-20 —60 ℃
Humidity		0—80% RH, non-condensing
Net weight		13.6kg
Product dimension (W × D × H)		448mm×605mm×42.5mm
Package dimension (W × D × H)		765mm615mm185mm
Optional power input		-36V～ -72V DC
