32-Port Cat5 LCD KVM over IP Switch 1-Local/2-Remote Access

Model No.: HT5832

Friendly Design: A console with an 18.5″ LCD monitor, built-in keyboard, and a sensitive touch pad, occupies only 1U space.
Computer Control: Up to 32 computers can be controlled at the same time.
Video Resolution: The remote console supports up to 1920 x 1080@60Hz, and the local console supports up to 1280 x 1024@60Hz.
Remote Control: 1 local user and 2 remote users are supported.
Switching Methods: Browser-based UI interface, hotkeys and push buttons.
Wide Compatibility: It is compatible with multiple operating systems like Windows, Linux, Unix, Mac, Solaris (Sun), Redhat, Ubuntu.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

HT5832 is a 32-port KVM over IP switch that occupies only 1U rack space. Designed with 32 ports, it allows users to control up to 32 computers simultaneously with a set of keyboard, mouse, and monitor. Switching options like keyboard hotkeys, OSD menu, and pushbuttons are provided. In addition, 1 local user and 2 remote users are allowed to manage computers at the same time. It can securely gain BIOS-level system access for maintenance, support or failure recovery over the Internet.

This Cat5 KVM over IP switch is easy to install without any complicated procedures or needed software. The users just need to connect the cables to the port of the switch correctly. It can connect multiple computers with compact RJ-45 connectors and Cat5e/6/7 cables, and the transmitting distance is up to 100m.

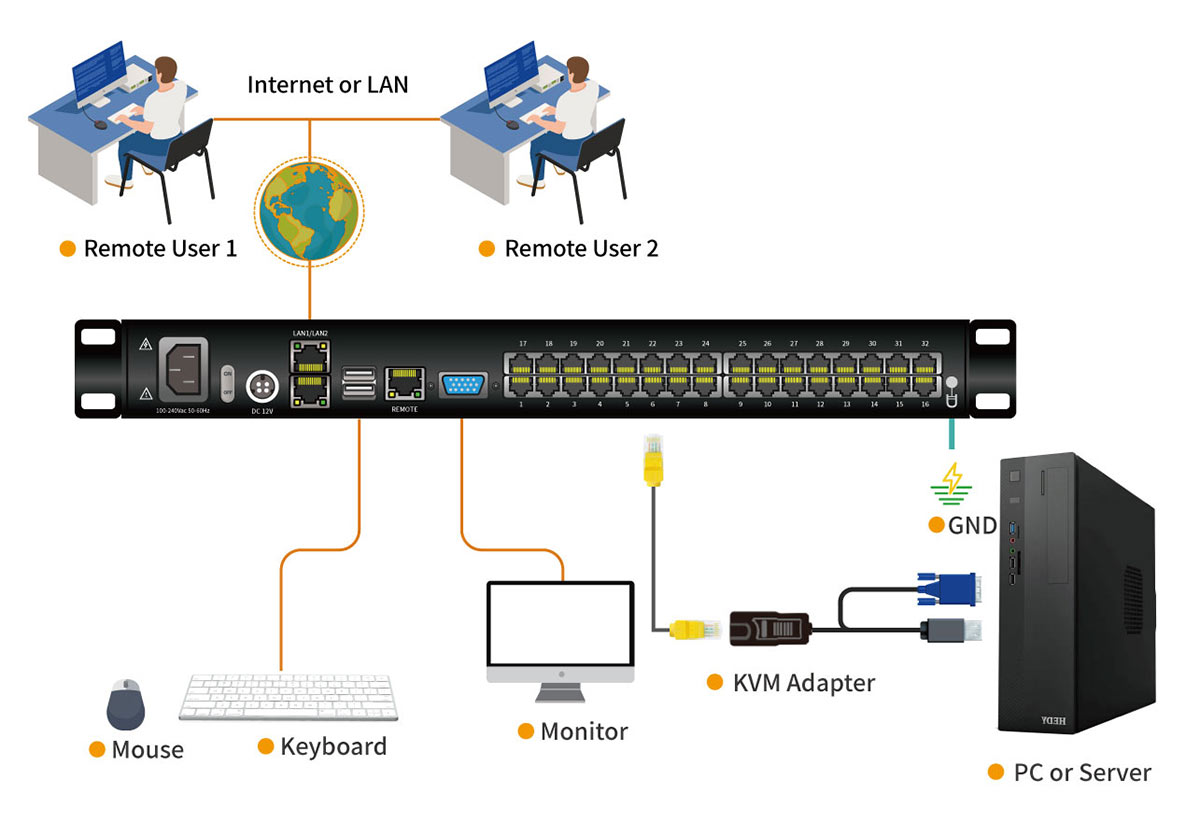

Diagram

Specification

Model		HT5832
Computer Connections	Direct	32
	Max	32
Port Selection	Keyboard, Mouse	Button, UI, Web, Hotkey
LED Monitor	Model	WXGA TFT
	View Area	18.51”
	Optimum Resolution	1366×768@60Hz
	Color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast Ratio	1000 : 1 （ T y p ）
	Pixel Pitch(mm)	0.300(H) × 0.300(W)
Mouse	X/Y Resolution	>1000 points / inch, (40 points/mm)
	Scroll Wheel	Supports Scroll Wheel function
Keyboard		99 keys (82 keyboard + 17 number pad)
Remote	Remote Control	KVM Control (A9ctiveX)
	Management	Web
	Security	DES Encrypted
	Resolution	1920×1080@60Hz
Power Input		100V- 240Vac , 50-60Hz , <1.5A
Mounting distance		686-770mm ( L=262mm)
		Mounting bracket can be customized for other mounting distance
Power Consumption		35W
Operating Temperature		0 — 50 ℃
Store Temperature		-20 —60 ℃
Humidity		0—80% RH, non-condensing
Net Weight		11.9kg
Product Dimension (W × D × H)		448mm×560mm×42.5mm
Package Dimension (W × D × H)		765mm×615mm×185mm
