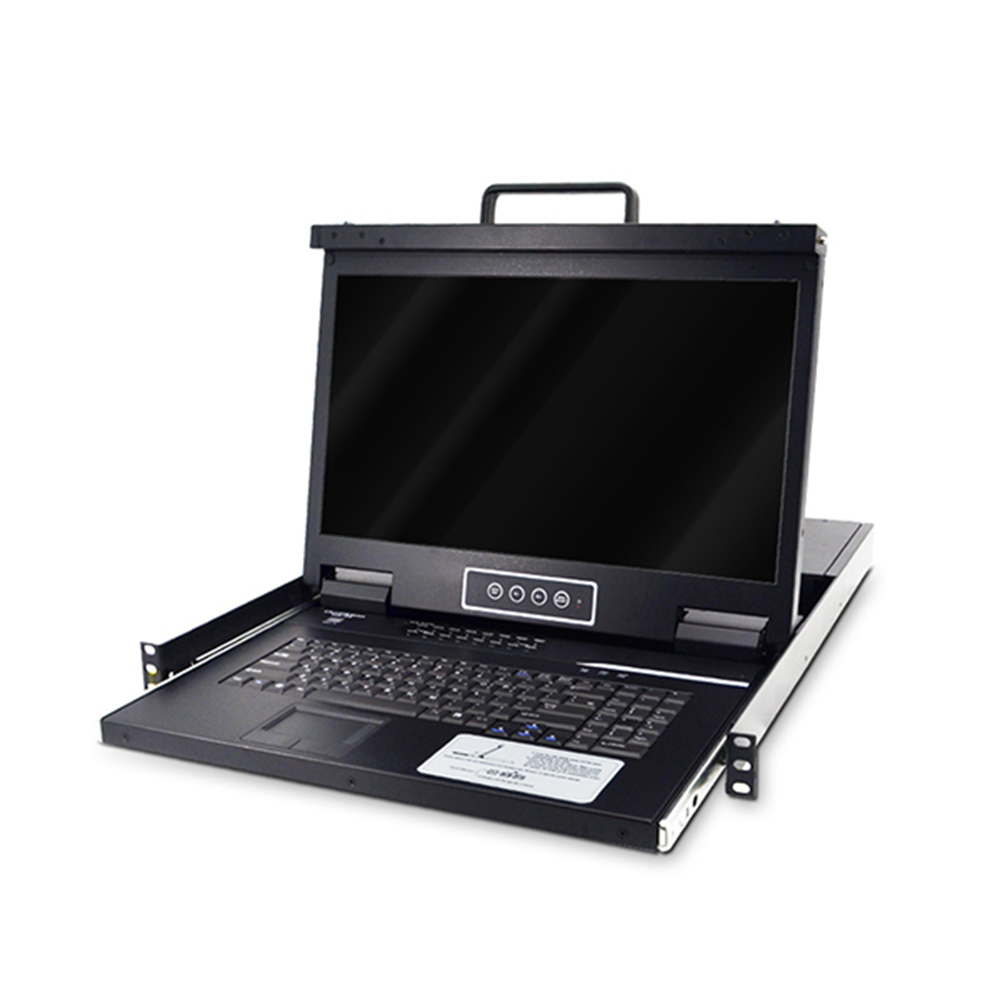

32포트 Cat5 LCD KVM 스위치 (18.5인치 모니터 포함)

모델 번호: KLC-1832

  • LED KVM 스위치로 32대의 컴퓨터 제어 가능
  • 19인치 1U 랙마운팅 가능
  • 최대 해상도 1366 x 768
  • Windows, Linux, Mac, Sun등 멀티플랫폼 지원
  • 전면 선택 버튼, 핫키, OSD를 이용한 포트 선택

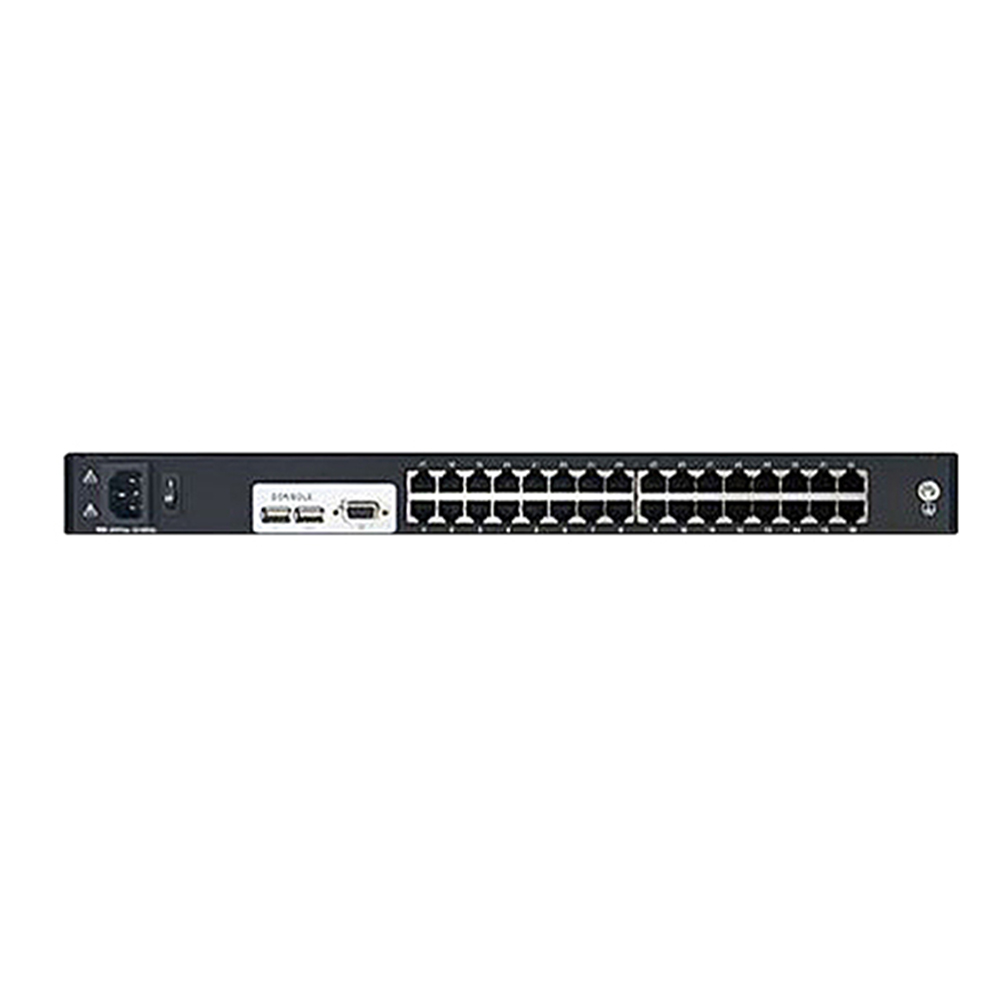

  • USB 키보드 / 마우스, VGA 콘솔 포트 제공
FCC
UKCA
CE
RoHS
특징
세부 사항
사양
종범
다운로드
관련 상품

개요

The Kinan LC1816 is a high-performance KVM switch designed to centrally manage up to 16 computers via its 16 Cat5 ports. Featuring a compact 1U rack-mountable design, it consolidates control of multiple computers through a single console (keyboard, mouse, and monitor). The integrated 18.5-inch LCD screen delivers crisp visuals with a resolution of 1366×768 at 60Hz, ensuring a clear and immersive workspace for users.

Installation of this LCD KVM switch is effortless – simply connect the cables to the appropriate ports and power on the device. Once operational, users can swiftly navigate between servers using hotkey shortcuts, front-panel LED indicators, or an intuitive on-screen display (OSD) menu, enhancing workflow efficiency.

Widely utilized in data centers, the LC1816 maximizes space utilization and simplifies infrastructure organization. Its simple design reduces cable clutter, facilitates orderly server placement, and enables technicians to identify and address malfunctioning equipment during maintenance checks.

Hardware Features

  • Adjustable 18.5″ LCD Display: The monitor tilts up to 108 degrees for flexible viewing angles.
  • Multi-Language Keyboard: A full-size 99-key keyboard supports English, Russian, German, French, UK, Spanish, and more.
  • Precision Touchpad: Features two tactile buttons and a scroll wheel for seamless, lag-free computer control.

Hardware Features

  • Adjustable 18.5″ LCD Display: The monitor tilts up to 108 degrees for flexible viewing angles.
  • Multi-Language Keyboard: A full-size 99-key keyboard supports English, Russian, German, French, UK, Spanish, and more.
  • Precision Touchpad: Features two tactile buttons and a scroll wheel for seamless, lag-free computer control.

Enhanced User Experience

  • Crisp Visuals: 1366×768 resolution at 60Hz ensures smooth, high-quality display performance.
  • Customizable Viewing: Freely adjust the LCD screen angle for optimal comfort.
  • Remote Monitoring: Operators can troubleshoot systems directly via the LCD screen, reducing the need for frequent data center access.
  • Cross-Platform Compatibility: Works seamlessly with Windows, Sun, Unix, Linux, and other operating systems.

Enhanced User Experience

  • Crisp Visuals: 1366×768 resolution at 60Hz ensures smooth, high-quality display performance.
  • Customizable Viewing: Freely adjust the LCD screen angle for optimal comfort.
  • Remote Monitoring: Operators can troubleshoot systems directly via the LCD screen, reducing the need for frequent data center access.
  • Cross-Platform Compatibility: Works seamlessly with Windows, Sun, Unix, Linux, and other operating systems.

Centralized Management

  • 16-Device Control: Manage up to 16 computers effortlessly using the LC1816 LCD KVM switch.
  • Intuitive Interface: A user-friendly UI provides clear visual navigation and system oversight.
  • Streamlined Workflows: Reduces clutter by eliminating redundant USB peripherals.
  • Robust Security: A two-tier password system restricts access to authorized personnel (4 users + 1 admin) for secure operation.

Centralized Management

  • 16-Device Control: Manage up to 16 computers effortlessly using the LC1816 LCD KVM switch.
  • Intuitive Interface: A user-friendly UI provides clear visual navigation and system oversight.
  • Streamlined Workflows: Reduces clutter by eliminating redundant USB peripherals.
  • Robust Security: A two-tier password system restricts access to authorized personnel (4 users + 1 admin) for secure operation.

세부 사항

사양

Model LC1816
Computer connections Direct 16
Max 512
Port emulation Keyboard, mouse PS/2, USB
LCD monitor LCD model WXGA TFT
View area 18.51”
Optimum resolution 1366×768@60Hz
Display color 16.7 M
Brightness 250cd/m²（ T y p ）
Contrast ratio 1000 : 1 （ T y p ）
Pixel pitch(mm) 0.300(H) × 0.300(W)
Mouse X/Y resolution >1000 points / inch,（ 40 points/mm ）
Roll wheel Supports scroll wheel function
Keyboard 99 keys (82 keys main keyboard +17 independent small number pad)
Port selection Front panel pushbuttons, hotkeys, OSD menu
Input power 100V- 240Vac , 50-60Hz , <1.5A
Power consumption 19W
Mounting distance 686-770mm ( L=262mm)
Mounting bracket can be customized for other mounting distance
Operating temperature 0 — 50 ℃
Store temperature -20 — 60 ℃
Humidity 0~80% RH, non-condensing
Net weight 11.8kg
Product dimension (W × D × H) 448mm×560mm×42.5mm
Package dimension (W × D × H) 765mm×615mm×185mm
Optional power input -36V~ -72V DC

패키지 내용물

  • 1x LCD KVM 스위치 (KLC-1832)
  • 1x 전원 코드 (지역별)
  • 1x 빠른 시작 가이드
  • 2x 장착 레일
  • 1x Cat5 차폐 네트워크 케이블
  • 1x 접지선

저희 제품에 대해 더 자세히 알고 싶으신가요? 자료를 다운로드하세요.

LC18 series User Manual-V2.5-202410

다운로드

LC1808-LC1816-LC1824-LC1832 Datasheet

다운로드
