24-Port Short Depth CAT5 18.5″ Widescreen LCD KVM Switch

Model No.: LC2824

Hardware Structure: Integrated KVM Console with 18.5″ widescreen LCD.
Control of Computers: A single console controls up to 24 computers.
High Video Resolution: The LCD screen of this switch supports up to 1920 x 1080 @60Hz.
Convenient Computer Switching: Front panel LEDs, keyboard hotkey combination or on-screen-display (OSD) menu.
Standard Cat5 Connection: Connect to a server or computer via standard RJ-45 connectors and Cat5e/6 cables.
Comfortable Viewing Angle: The LCD display module is flexible and the largest angle is 108 degrees.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

Kinan’s LC2824 integrates an 18.5” LCD monitor, keyboard/touchpad and a Cat5 KVM switch in a 1U rack mount housing. The LC2824 allows access and control up to 24 computers from a single console (keyboard, mouse, and monitor). When cascading to another 31 KVM Switches, a single LC2824 can control up to 768 computers.

The LC2824 has a built-in 18.5” LCD monitor that supports resolution up to 1920×1080@60Hz. For added convenience, two USB ports and one VGA port are included in the rear of the KVM unit to allow for connection of keyboard/mouse and external display.

With the LC2824, you can switch easily between computers by front panel pushbuttons, OSD (on-screen display) or keyboard hotkey command. To enhance security, the LC2824 provides two-level password security which prevents unauthorized users to viewing and controlling the connected computers. With RJ-45 connectors and Cat5e/6 cables connected to computers, the LC2824 helps extend the distance to the servers up to 100m.

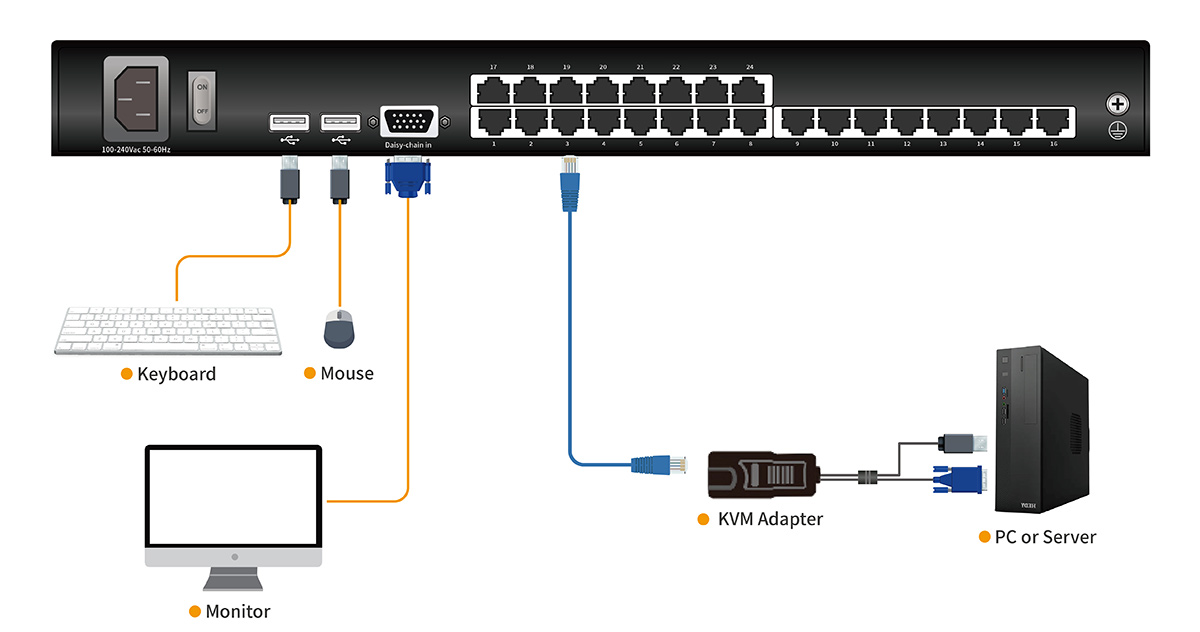

Diagram

Specification

Model		LC2824
Computer connections	Direct	24
Computer connections	Max	768
Port emulation	Keyboard, mouse	PS/2, USB
LCD monitor	LCD model	FHD TFT
	View area	18.47″
	Optimum resolution	1920×1080@60Hz
	Display color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	1000 : 1 （ T y p ）
	Pixel pitch(mm)	0.213(H) × 0.213(W)
Mouse	X/Y resolution	>1000 points / inch,（ 40 points/mm ）
Mouse	Roll wheel	Supports scroll wheel function
Keyboard		99 keys (82 keys main keyboard +17 independent small number pad)
Port selection		Front panel pushbuttons, hotkeys, OSD menu
Input power		100V- 240Vac, 50-60Hz, <1.5A
Power consumption		31W
Mounting distance		686-770mm (L=262mm)
Mounting distance		Mounting bracket can be customized for other mounting distance
Operating temperature		0 — 50 ℃
Store temperature		-20 — 60 ℃
Humidity		0~80% RH, non-condensing
Net weight		12kg
Product dimension (W × D × H)		448mm×560mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
Optional power input		-36V~ -72V DC
