24-Port Cat5 Dual Rail LCD KVM Switch with 19 in. LCD

Model No.: DL2924

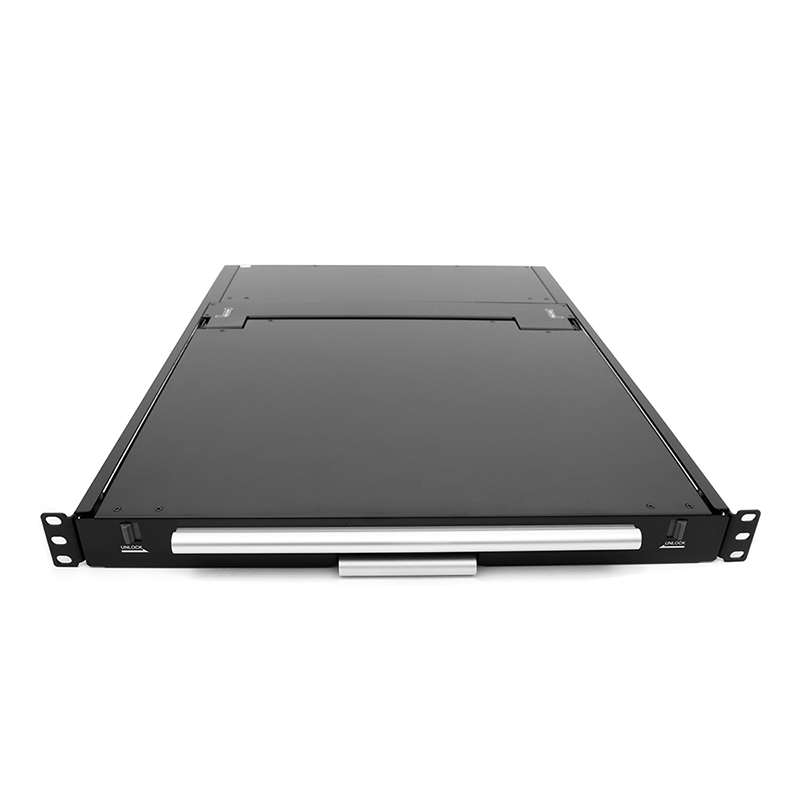

Hardware Structure: A short depth dual rail rack console featuring a 19″ LCD monitor with an integrated keyboard and touchpad, fits for all standard 19″ equipment cabinet.

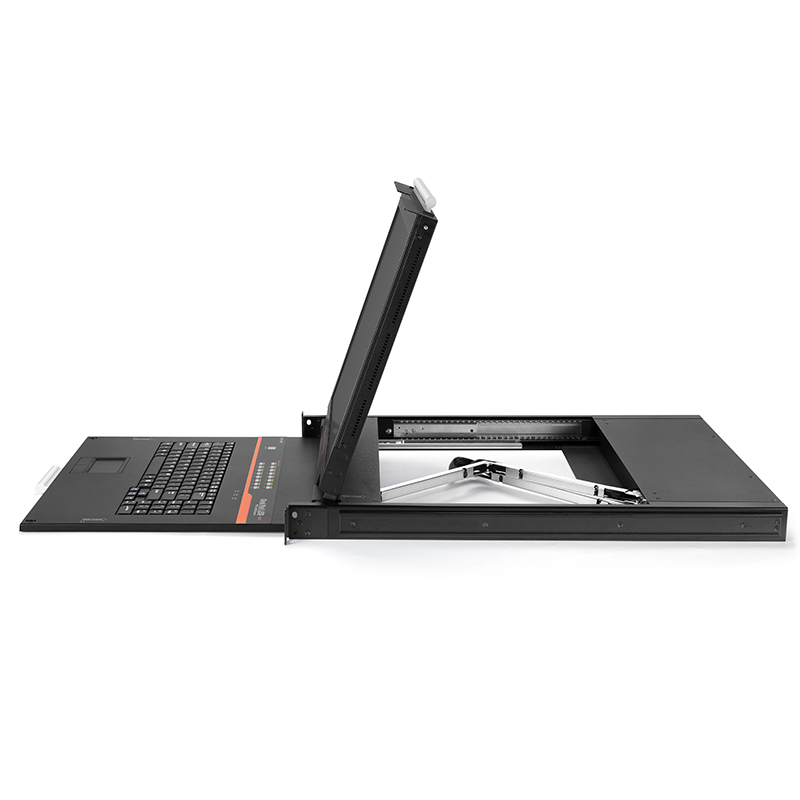

Convenient Design: The LCD panel and keyboard/touchpad modules slide independently of each other, the keyboard/touchpad module slides back to “hide away” when not in use, while the thin profile LCD monitor rotates back, flush against the rack.
High Video Resolution: The 19in. LCD screen supports video resolutions up to 1280 x 1024@60Hz.
Number of Computers: A single console controls up to 24 computers.
Flexible LCD Module: The LCD display module supports up to 108 degrees, and it can be adjusted independently with the help of dual rail.
Connection: Space saving Cat5 connection with CAT5/6 cable.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

Kinan’s DL2924 dual rail CAT5 keyboard mouse display switch integrates the LCD monitor, ultra-slim keyboard and touchpad in a dual rail housing that occupies only 1U height of space. With the dual rail drawer design, the LCD panel and keyboard/touchpad modules slide independently of each other, which saves much space.

The DL2924 24 port kvm switch allows access and control with up to 24 computers from a single console (keyboard, mouse, and monitor). The number of connected computers can be increased up to 768 by cascading up to 31 KC2132 KVM Switches. With RJ-45 interface and CAT5 cables to connect the server, the transmitting distance is up to 150m.

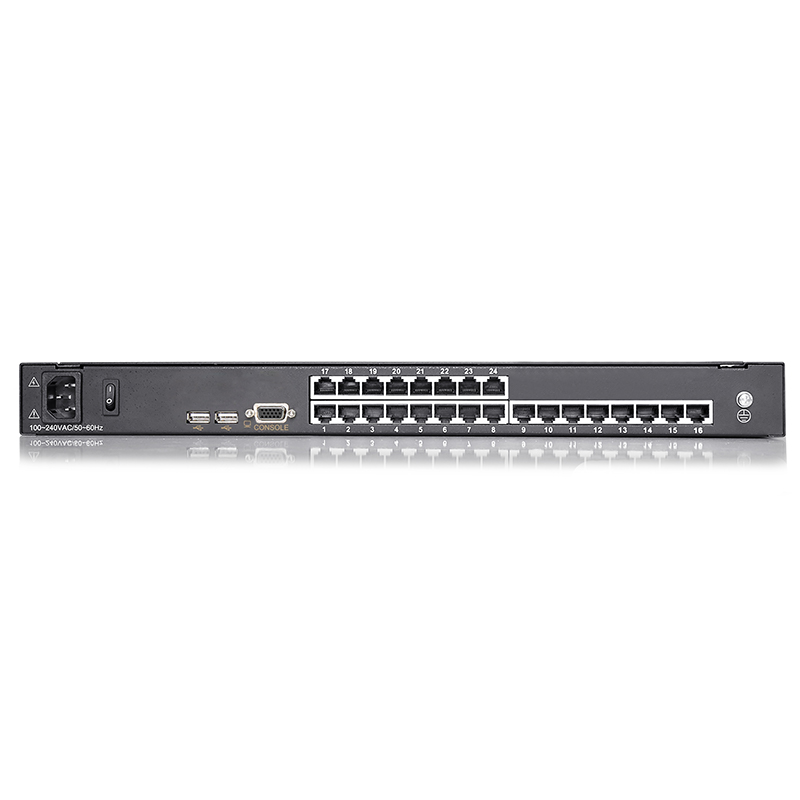

The DL2924 rack mount monitor keyboard has a built-in LCD monitor that supports resolution up to 1280×1024@60Hz. An extra console port is provided on the rear panel to manage the LCD KVM switch from an external console.

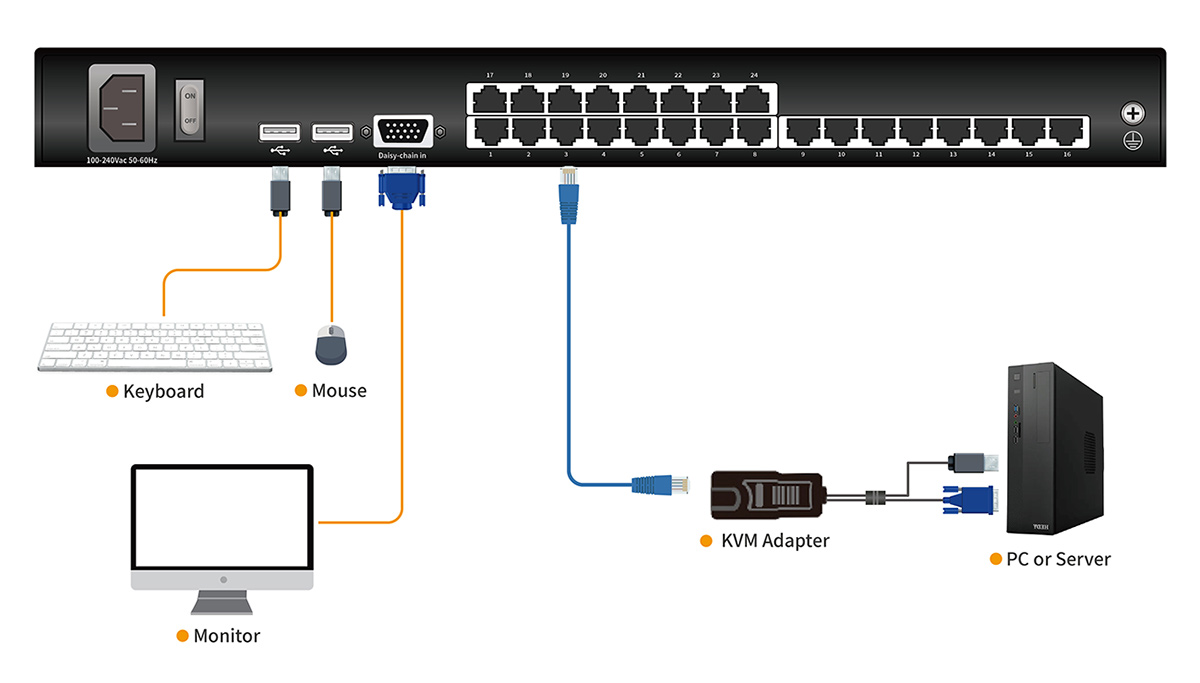

Diagram

Specification

Model		DL2924
Computer connections	Direct	24
Computer connections	Max	768
Port emulation	Keyboard, mouse	PS/2, USB
LCD monitor	LCD model	SXGA TFT
	View area	19 “
	Optimum resolution	1280×1024@60Hz
	Display color	16.7 M
	Brightness	250cd/m² (T y p)
	Contrast ratio	1000: 1 (T y p)
	Pixel pitch(mm)	0.2928 (H) × 0.2928 (W)
Mouse	X/Y resolution	>1000 points / inch, (40 points/mm)
Mouse	Touchpad with trackball	Eliminates the need for an external mouse
Keyboard		99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Port selection		Pushbuttons, hotkeys, OSD menu, mouse
Input power		100V – 240Vac, 50 ~ 60Hz, <1.5A
Power consumption		22W
Operating temperature		0 – 50 ℃
Store temperature		-20 – 60 ℃
Humidity		0 – 80% RH, non-condensing
Net weight		13.7 kg
Product dimension (W × D × H)		448mm×605mm×43.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
Optional power input		-36V– -72V DC
