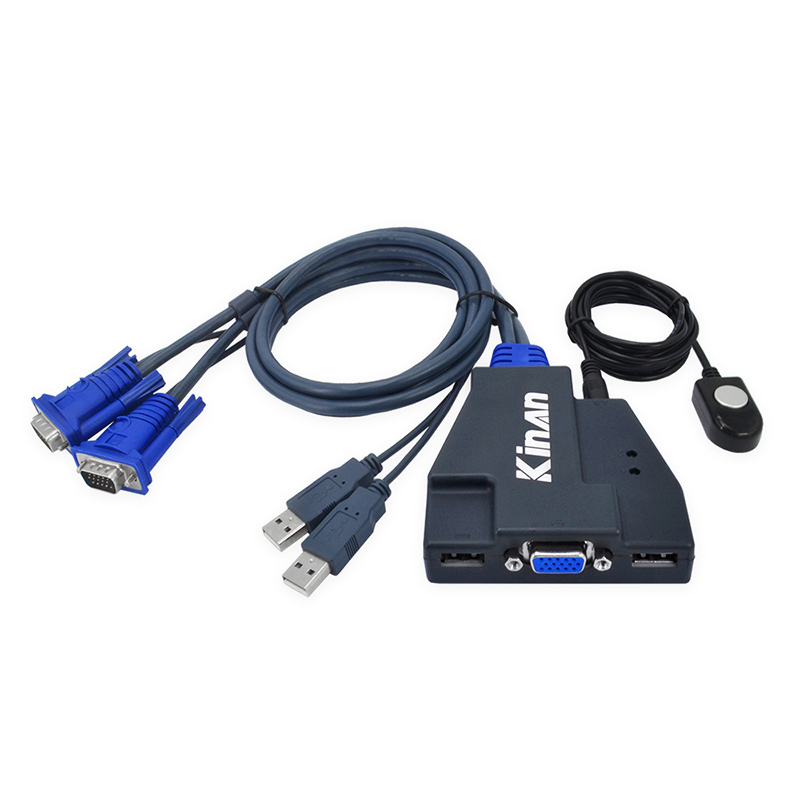

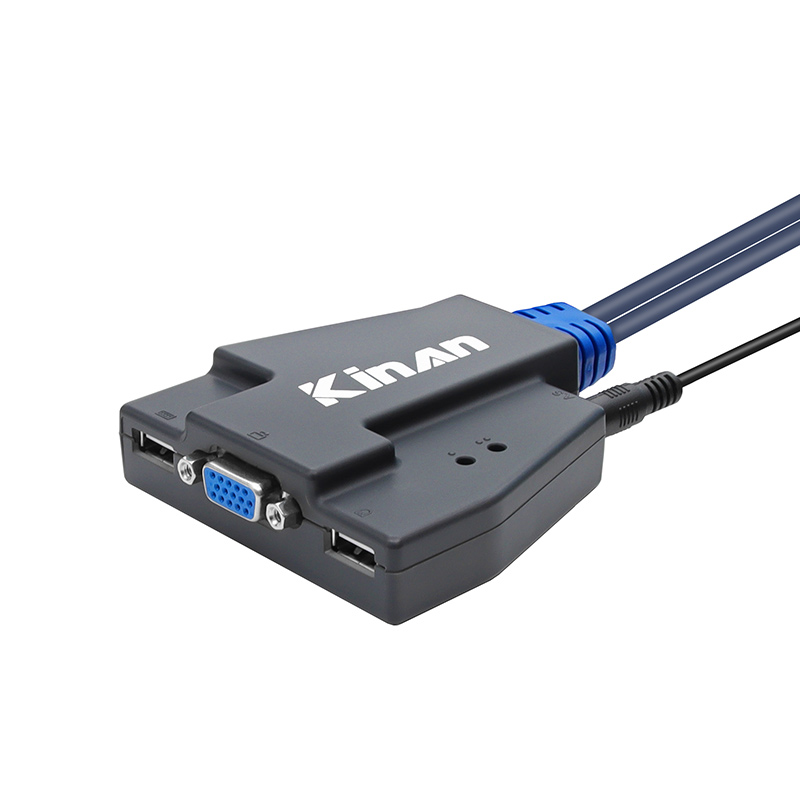

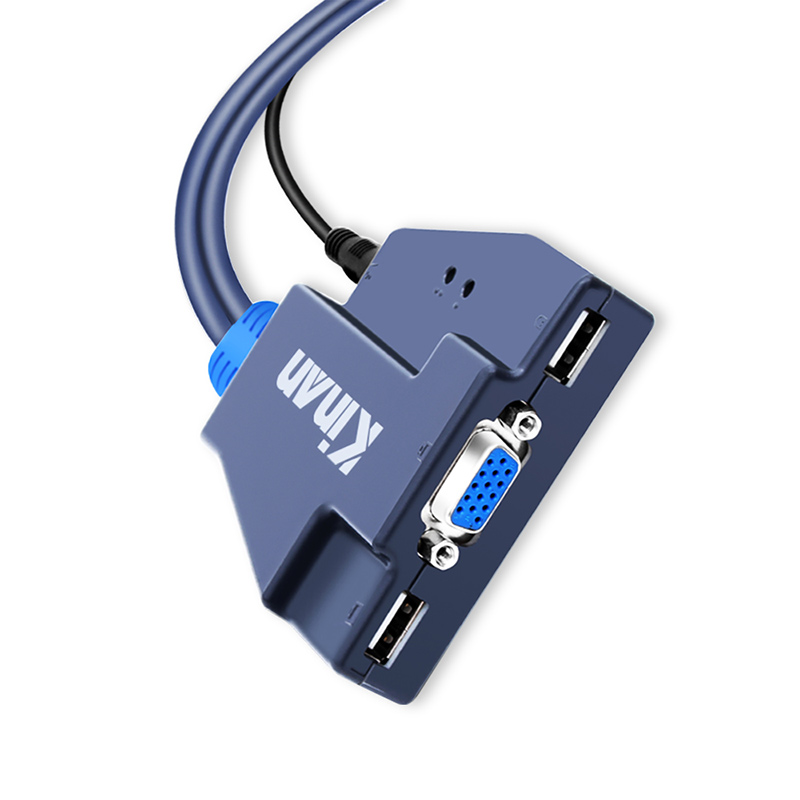

2 Port VGA Cable KVM Switch

Model No.: KA1302

  • Control of Computers: One set of keyboard mouse display control two computers.
  • Support High Resolution: The resolution it supports is up to 2048×1536; DDC2B.
  • Diverse Computer Switching Choices: Hotkey Scroll-Lock or remote switch button.
  • Daisy-chain Connection: Support daisy-chain and cascade connection.
  • Hot plugging: Free to add or remove computers without having to power down the switch.
  • Space-saving Design: It occypies little space and can be taken everywhere for its small size.

Overview

Small yet powerful, the KA1302 2 port USB VGA cable KVM Switch is an ideal solution for small businesses and home uses which allows users to control and manage 2 computers by using a single KVM. Switch between computers can be easily accomplished via hotkey Scroll-Lock or external switching button.

This KVM for laptop and desktop supports HD video resolution: 2048×1536 DDC2B. The KA1302 2 port VGA switch supports hot pluggable function — add or remove computers without having to power down the switch. Kinan’s KA1302 VGA KVM is compatible with Windows2000/XP/Vista, Linux, Mac and Sun and supports external USB device.

Diagram

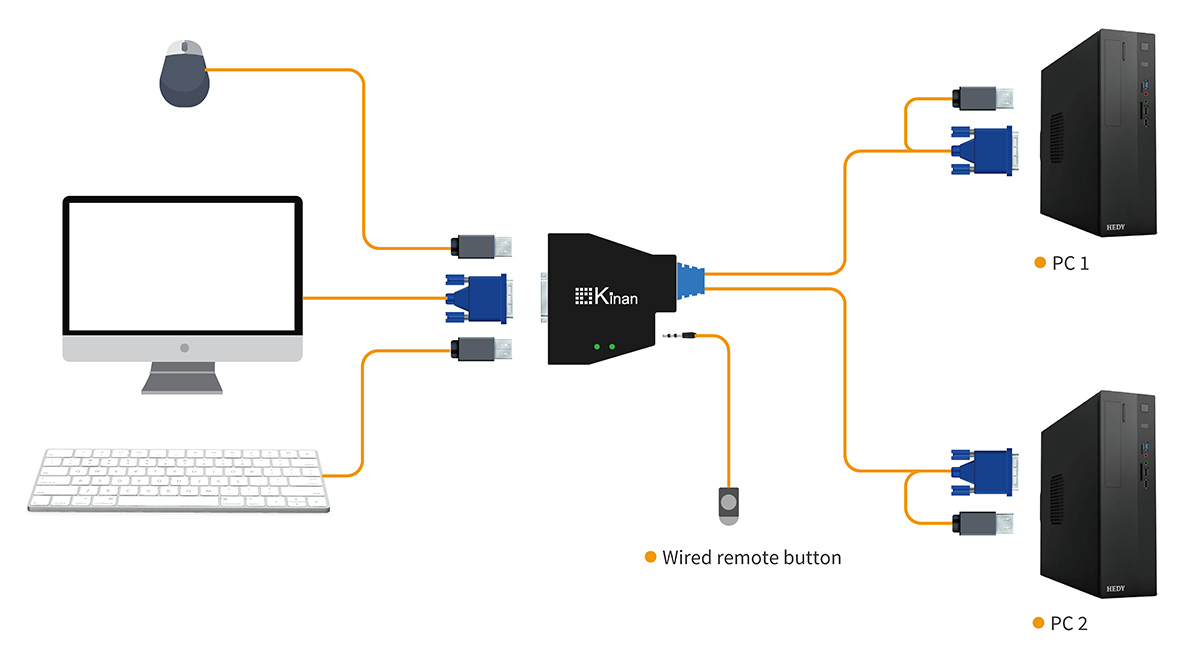

Connection Diagram KA1302-1

Specification

Model KA1302
Computer Connections Direct 2 (DB15 Female blue)
Maximum 2
Port Selection Hot key, Pushbuttons
Console Ports Video 1x HDB-15 Female(blue)
Keyboard 1x USB type A
Mouse 1x USB type A
PC Port Video 1x HDB-15 Female(blue)
Keyboard /Mouse 2x USB type A
LEDs Selected 2 (Green)
Cable Length KVM Cable 900mm
Button Cable 1800mm
Display resolution 2048×1536
Operating temperature 0— 50 ℃
Storage temperature -20 — 60 ℃
Humidity 0~80% RH, Non-condensing
Net Weight 0.25kg
Unit Dimensions (W × D × H) 78mm×80mm×21.7mm

Package Contents

  • 1x KA1302 Cable KVM Switch

Want to Learn More About Our Products? Download Resources.

KA1302-User Manual-V1.3

KA1302 Datasheet
