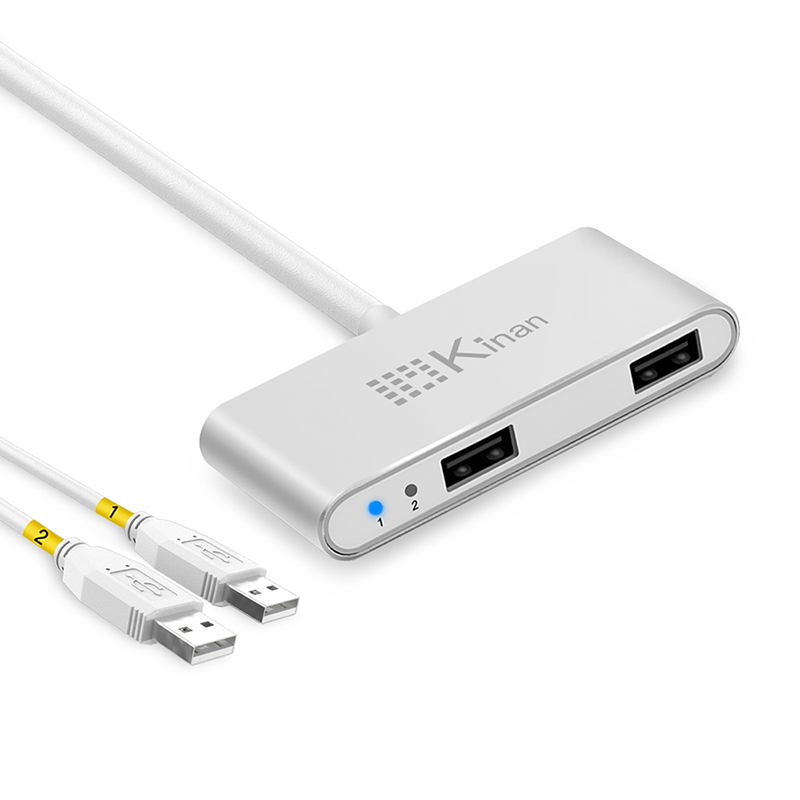

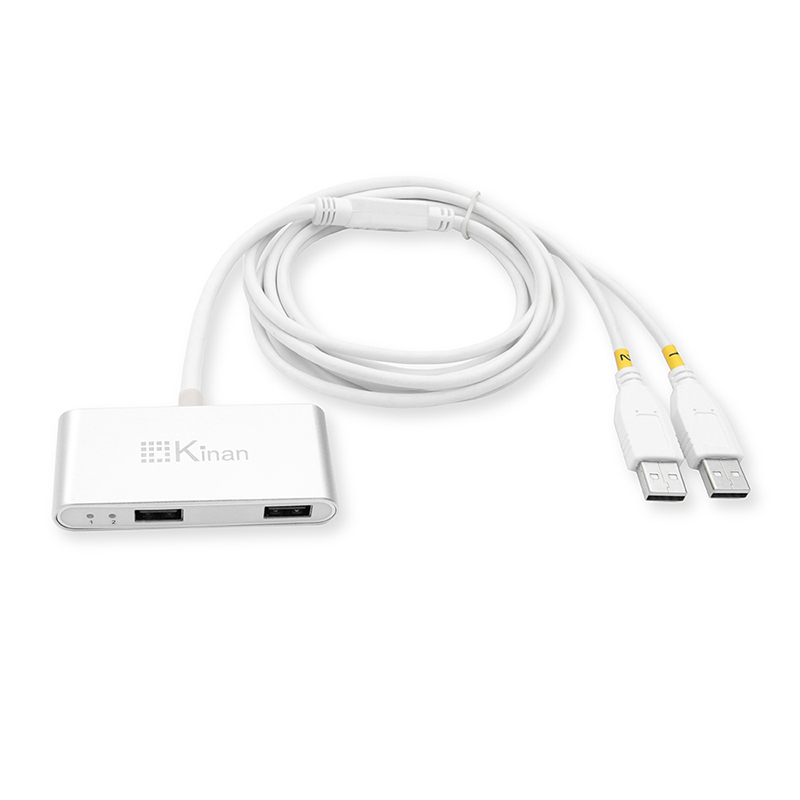

2 Port USB Cable KM Switch

Model No.: KM1302

Number of Computers: Control 2 computers with one set of USB keyboard and mouse
Boundless Switching: Simply move the mouse cursor between connected computers to switch the keyboard and mouse focus from one computer to the next.
Simple Installation: No Software Required.
User-friendly Design: USB powered and suitable for a wide range of peripherals.
Hot plugging: Users are free to add or remove servers directly without need to power off the KM switch.
Portability: It occupies little space for its small size, which allows users to carry it everywhere.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

The KM1302 is a 2-port keyboard-mouse switch that enables users to manage and control up to 2 computers with one set of keyboard and mouse. It supports seamless keyboard-mouse command on 2 computers from a single workstation.

The KM1302 is completely driverless, requiring no software. It is compatible with any PC and all major operating systems without the need for software downloads.

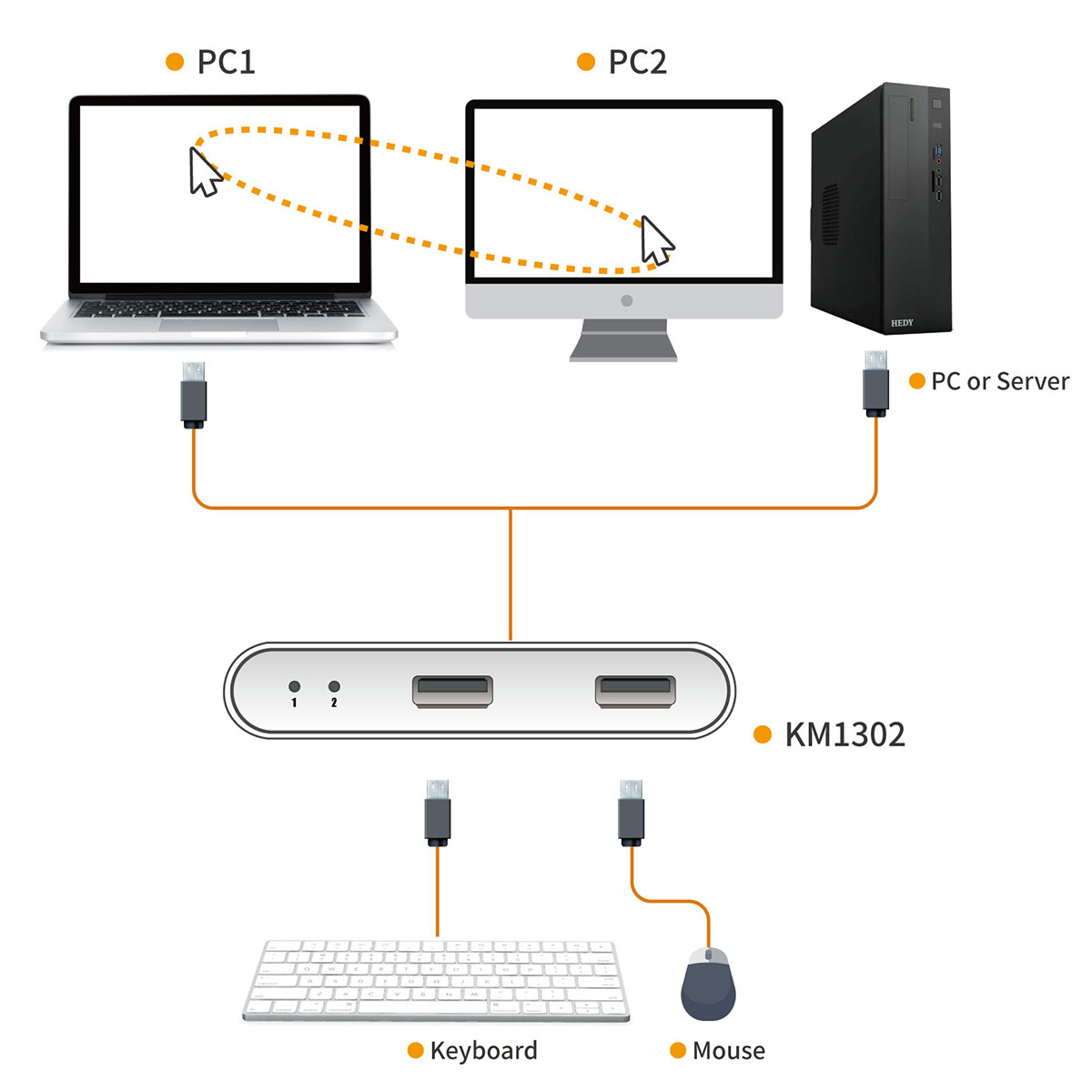

Diagram

Specification

Model		KM1302
Computer Connections	Direct	2
	Max	2
Unlock switching		Double click of a mouse’s center button
Console	Keyboard	1x USB type A
	Mouse	1x USB type A
Computer Ports	Keyboard/Mouse	2x USB type A
LEDs	Selected	2 (Green)
Cable length		1200mm
Operating Temperature		0-50℃
Storage Temperature		-20-60℃
Humidity		0-80%RH, Non-condensing
N.W.		0.11kg
Material		Aluminum Housing
		TPE for cable (Fire Rating: VW-1)
Product Dimension (W × D × H)		77mm×35mm×12mm
Package Dimension (W × D × H)		128mm×125mm×43mm
