2 Port HDMI® KVM Switch

Model No.: HD1102

Control of Computers: One USB console controls two HDMI interface computers.
High Video Resolution: The resolution of this two-port KVM switch is up to 4K (3840×2160 60Hz).
Optional Switching Methods: Front panel buttons and keyboard hotkeys.
Daisy Connection: Support daisy-chain and cascade connection.
Hot Plugging: Add or remove computers without having to power down the switch.
Versatility: It can be used in many scenarios like multimedia teaching, video conferencing, game rooms, etc.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

Kinan HD1102 2 port HDMI KVM switch is KVM switch with audio for small offices or home uses where users can get access to 2 computers by using a single mouse, keyboard and monitor. Users can switch between PCs or servers via front panel buttons and keyboard hotkeys.

Kinan’s HD1102 two-port KVM switch provides HDMI connections with superior video resolution up to 4K (3840 x 2160 @ 60 Hz). This KVM switch has 2 USB2.0 ports, allowing 2 computers to share U disk, scanner, printer, computer camera, etc., making your work more convenient and efficient.

This HDMI USB switch is compatible with multiplatform—Windows2000/XP/Vista, Linux, Mac, and etc. Small yet powerful, the HD1102 2 port KVM switch supports hot-pluggable function— add or remove computers without shutting down the switch.

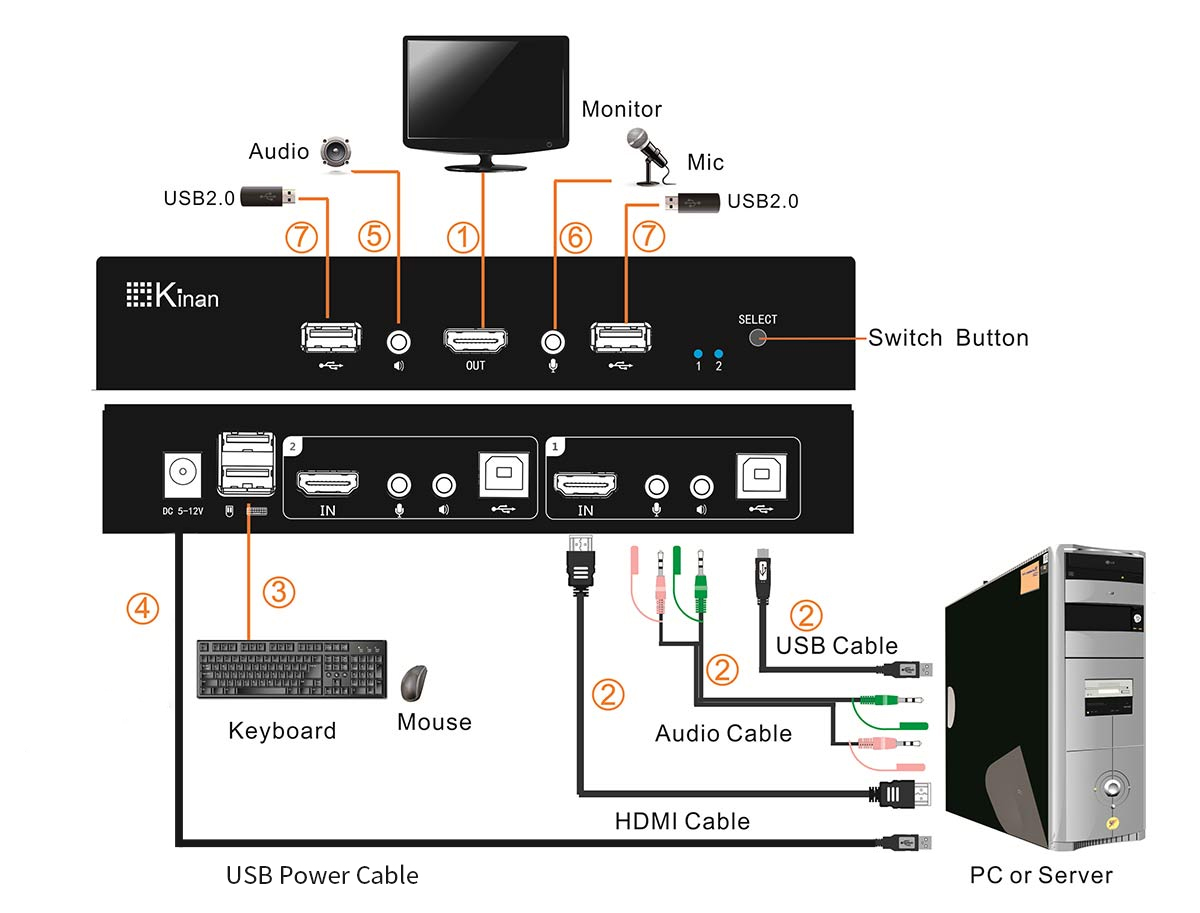

Diagram

Specification

Model			HD1102
Computer Connection			2
Port Selection			Hotkey, button
Connector	Console	Monitor	1x HDMI Type A
		Keyboard	1x double layer USB type A
		Mouse
		Mic	1x Min stereo port (pink)
		Speaker	1x Min stereo port (green)
	PC	Monitor	2x HDMI Type A
		Keyboard	2x USB type B
		Mouse
		Mic	2x Min stereo port (pink)
		Speaker	2x Min stereo port (green)
	USB2.0 port		2x USB type A
	Power		1x DC socket
Switch		Port Selection	1x button
LEDs		Selected	2 (Blue)
Resolution			3840×2160 @ 60 Hz
Power Consumption			2W
Power Input			5V- 12V DC
Operating Temperature			0 ~ 50 ℃
Storage Temperature			-20 ~ 60℃
Humidity			0~80% RH, non-condensing
Net Weight			0.4kg

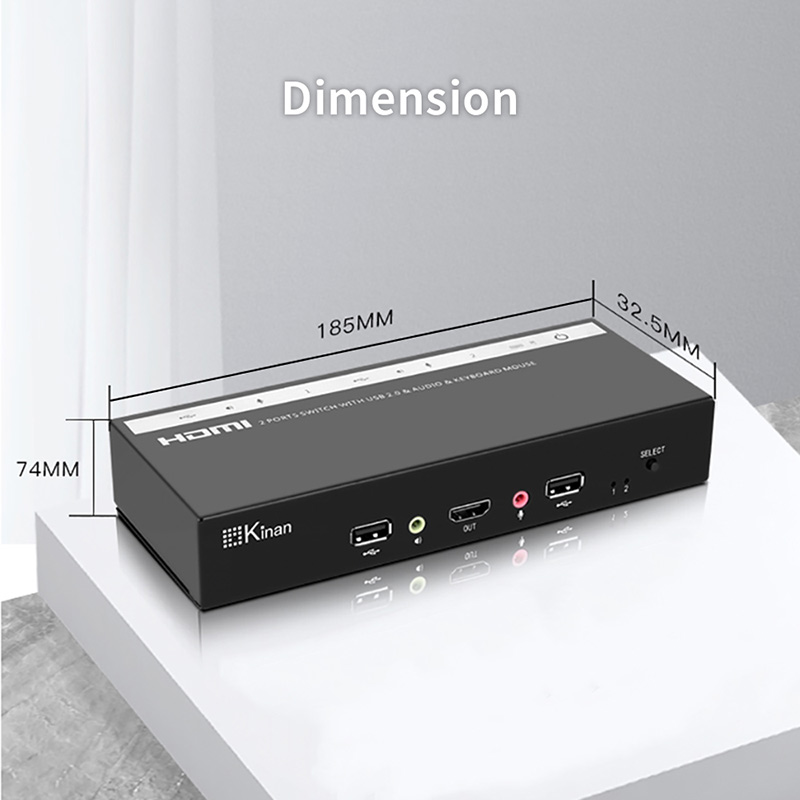

Dimension (W × D × H)			185mm × 74mm × 32.5mm
