Home » Desktop KVM Switches » 2-Port 4K USB2.0 Dual Monitor DisplayPort KVM Switch

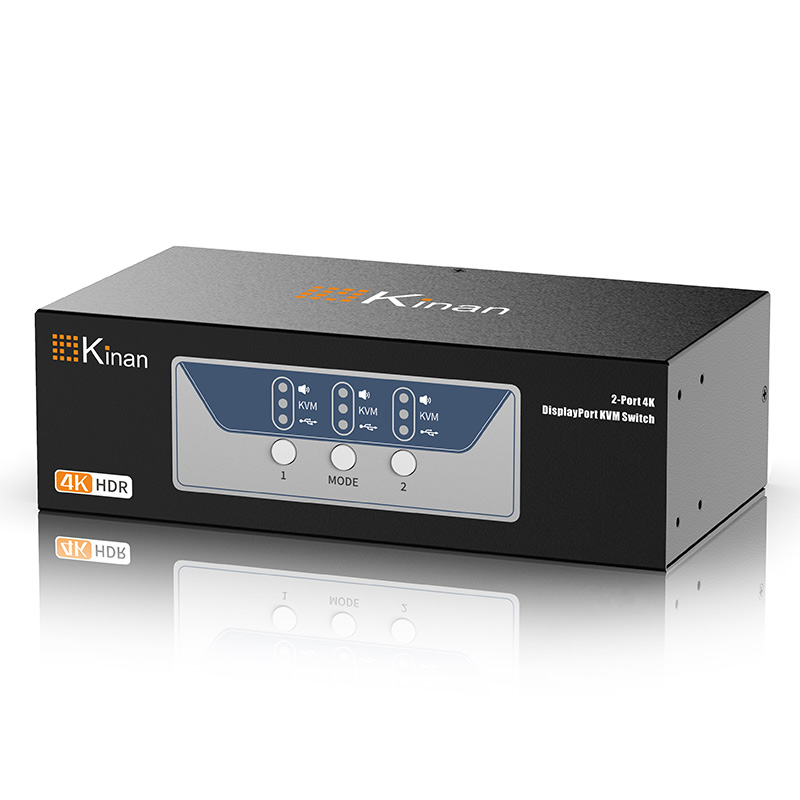

2-Port 4K USB2.0 Dual Monitor DisplayPort KVM Switch

Model No.: DM5202

Control of Computers: A single USB keyboard and mouse controls 2 computers with dual DisplayPort interface.
High Resolution: Supports 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60Hz) Ultra HD resolutions.
Computer Switching Options: Front panel buttons, keyboard hotkeys, mouse.
USB Devices Support: Provides a built-in USB 2.0 hub to connect USB peripherals.
Wide Compatibility: This displayport KVM switch supports many operating systems like Windows, Mac, and Linux, etc.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

DM5202 is a 2 in 2 out UHD KVM switch that allows users to access to two dual DP display port computers via a single USB keyboard and mouse. Both input and output support DisplayPort1.2. With a built-in 1 USB 2.0 hub and 2.1 channel audio for rich bass surround sound. It supports superior video quality up to 4K UHD @ 60 Hz and 4K DCI @ 60Hz, displaying vivid high-definition images and providing high-quality sound effects for music, movies and games.

The DM5202 supports supports switch via the front panel buttons, hotkeys and mouse. With a built-in USB 2.0 hub, the KVM switch supports connection to other USB peripheral devices.

The screen dynamic synchronization display can optimize display resolution, speed up switching between systems, and ensure that the screen can be displayed normally (when switching ports, the windows opened on the extended screen will not be restored to their default setting of the main screen). The independent (asynchronous) switching function supports switching keyboard/mouse, audio and USB HUB independently. This will eliminate the need to purchase a separate USB hub or a peripheral sharer, such as a print server, modem splitter, etc.

The DM5202 KVM switch combines Ultra HD 4K resolution, USB 2.0 hub and friendly operation to provide innovative desktop KVM switching technology.

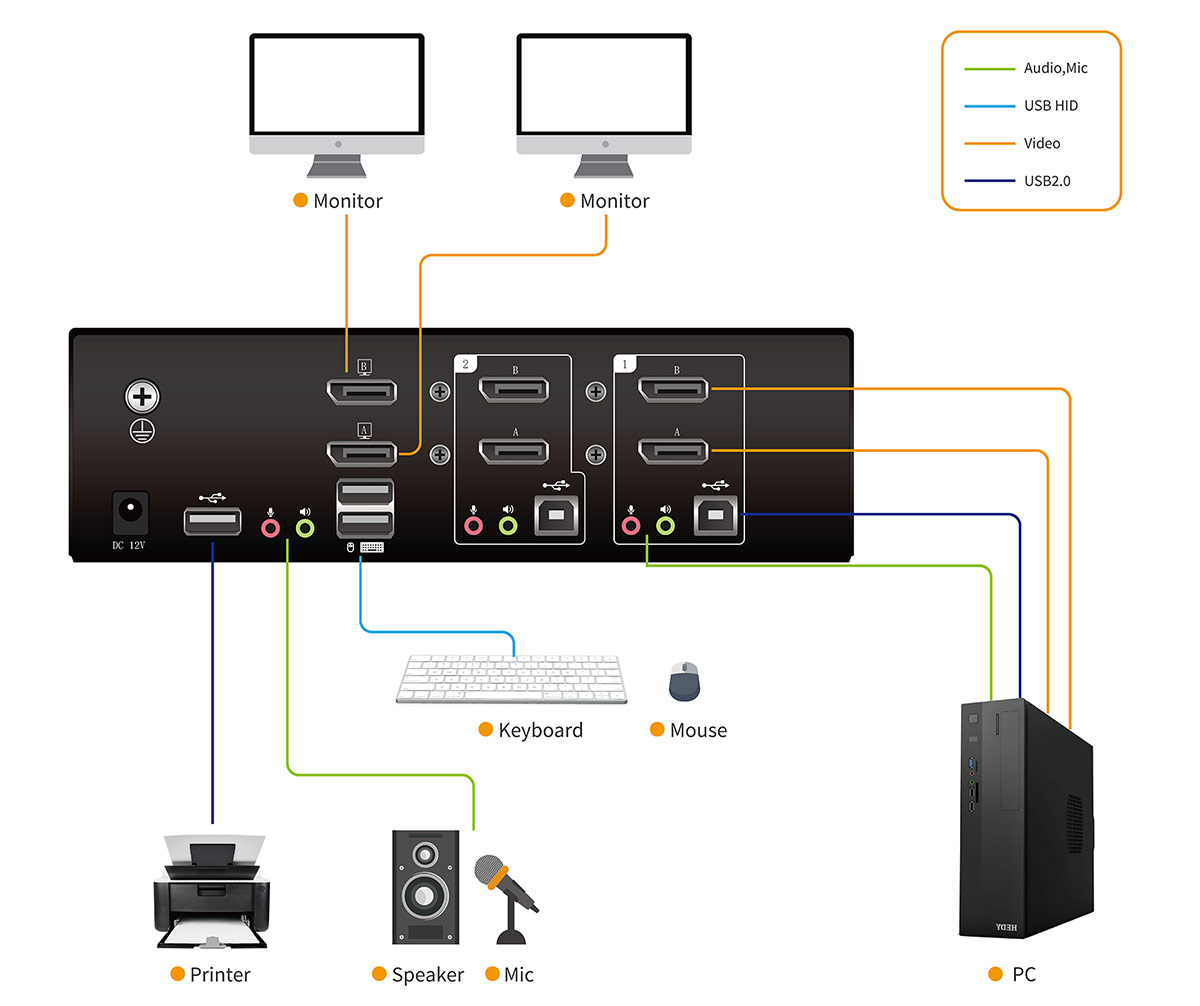

Diagram

Specification

Model			DM5202
Computer Connections			2
Port Selection			Pushbutton; Hotkey; Mouse
Connectors	Console	Monitor	2x DisplayPort
		Keyboard/mouse	2x USB type A（White）
		Microphone (Pink)	1x 3.5mm Audio Jack
		Speaker (Green)	1x 3.5mm Audio Jack
	KVM	Video input	4x DisplayPort
		USB input	2x USB2.0 type B（White）
		Microphone (Pink)	2×3.5mm Audio Jack
		Speaker (Green)	2x 3.5mm Audio Jack
	USB2.0 port		1x USB type A（White）
Switch	Menu selection		3x Buttons
LED	Audio Mic		3x (Green)
	KVM		3x (Green)
	USB		3x (Green)
Power Input			12V/ 2A
Video Resolution			4096×2160@60Hz (4K DCI/60Hz)
			3840×2160@60Hz (4K UHD/60Hz)
Power Consumption			4W
Environmental Requirement	Operating Temperature		0-50℃
	Storage Temperature		-20-60℃
	Humidity		0-80%RH, Non-condensing
Physical Features	Material		Metal
	Net Weight		1kg
	Product Dimension (W×D× H)		210mmx 109.2mm x 66mm
	Package Dimension (W×D× H)		395mm x 274mm x 110mm
