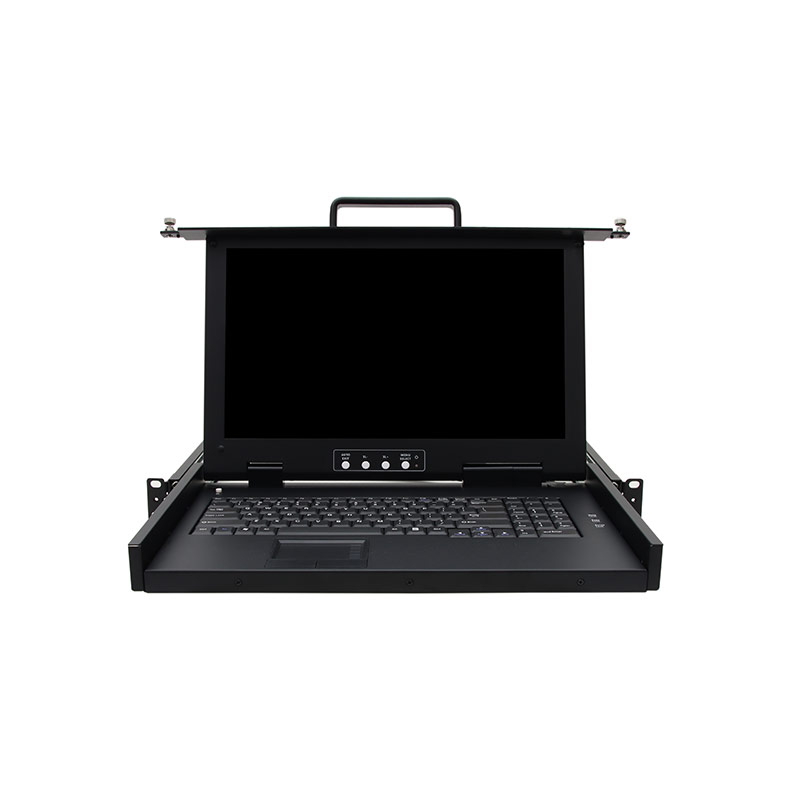

1U Short Depth Rack Mount 15.6″LCD KVM Console

Model No.: LH1601

Hardware Structure: 15.6″ FHD LCD display, 99-key keyboard, touchpad with two function buttons and scroll wheel
Space-saving Design: Rack-mountable in 1U system rack.
Advanced Functions: Auto USB interface detection; Energy-saving LCD display, the screen automatically shut down when closing the LCD monitor.
High Video Resolution: The resolution of the LCD screen is up to 1920 x 1080@60Hz.
Flexibility: The LCD display module is adjustable and the largest angle is 120 degreees.
Wide Compatibility: Compatible with Windows, Sun, Unix and Linux.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

The LH1601 1U rackmount console is the ideal solution for ETC specialized rack, 5G rack, network specialized rack and standard server rack. Featuring an integrated 15.6” LCD display, full-99 key keyboard and touchpad, all in a 1U rack-mountable housing, it supports the shortest mounting depth: 360mm.

This console is designed with two anti-vibration fixing screws on the front panel to prevent the console during transportation and operating.

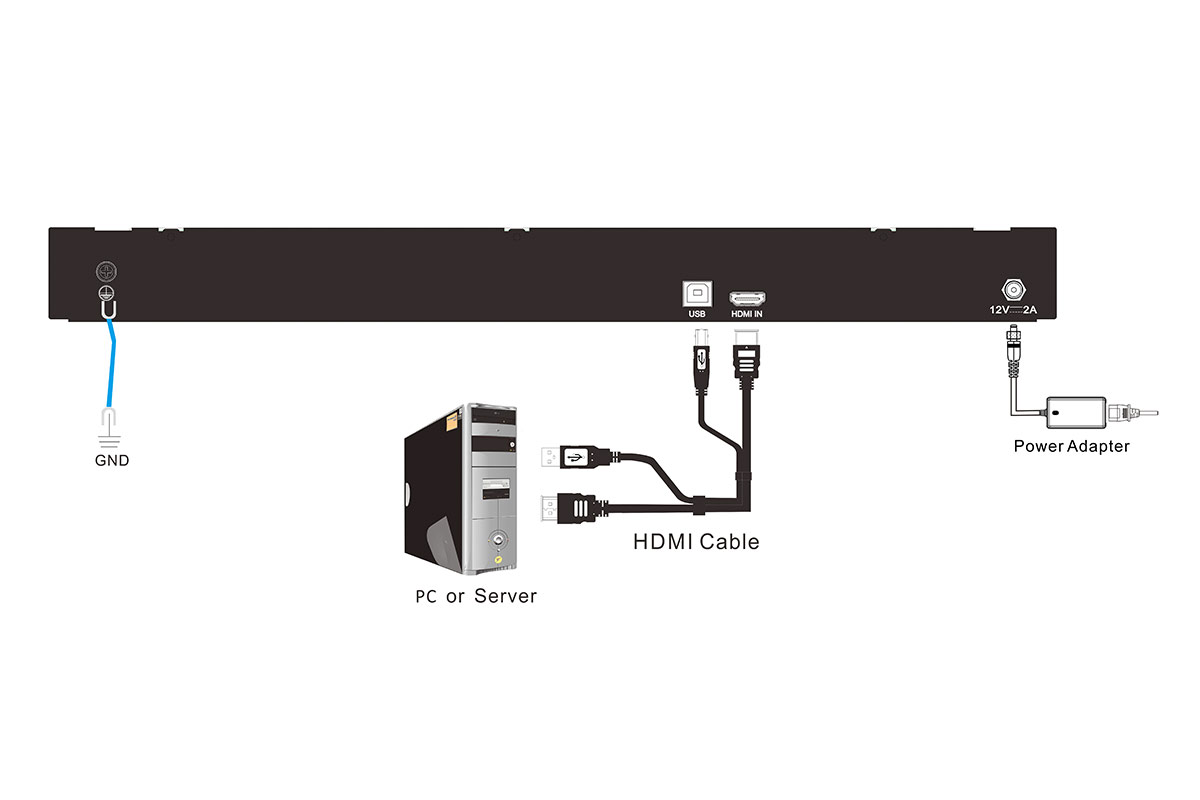

Diagram

Specification

Model		LH1601
Computer connections	Direct	1
Computer connections	Max	1
Port emulation	Keyboard, mouse	USB
LCD monitor	LCD model	FHD TFT
	View area	15.6 “
	Optimum resolution	1920 x 1080@60Hz
	Display color	16.2M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	800 : 1 （ T y p ）
	Pixel pitch(mm)	0.17925(H) × 0.17925(V)
Mouse	X/Y resolution	>1000 points /inch,( 40 points/mm )
Mouse	Scroll wheel	Supports scroll wheel function
Keyboard		99 keys
Keyboard		(82 keys main keyboard +17 independent small numeric keyboard)
Input power		DC12V /2A
Power consumption		9W
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non-condensing
Net weight		8.7kg
Product dimension (W ×D ×H)		448mm×360 mm×42.5mm
Package dimension (W× D× H)		600mm×538mm×160mm
