1U Rackmount 19″ DVI LCD KVM Console

Model No.: LD1901

Hardware Structure: A short depth single rail rack console featuring a 19″ LCD monitor with an integrated keyboard and touchpad, fits for all standard 19″ equipment cabinet.
Simple & Space-saving Design: Easy to install and simple to operate. It slides neatly into a 1U rack space when not in use.
Standard DVI Connection: Connect to a server or computer via standard DVI connector.
High Video Resolution: The 19in. LCD screen supports video resolutions up to 1280 x 1024@60Hz.
Adjustable LCD Display Module: It supports up to 108 degrees, which is a good viewing angle for users.
Easy to Use: This DVI LCD KVM console can be connected to only a server or a switch with multiple ports.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

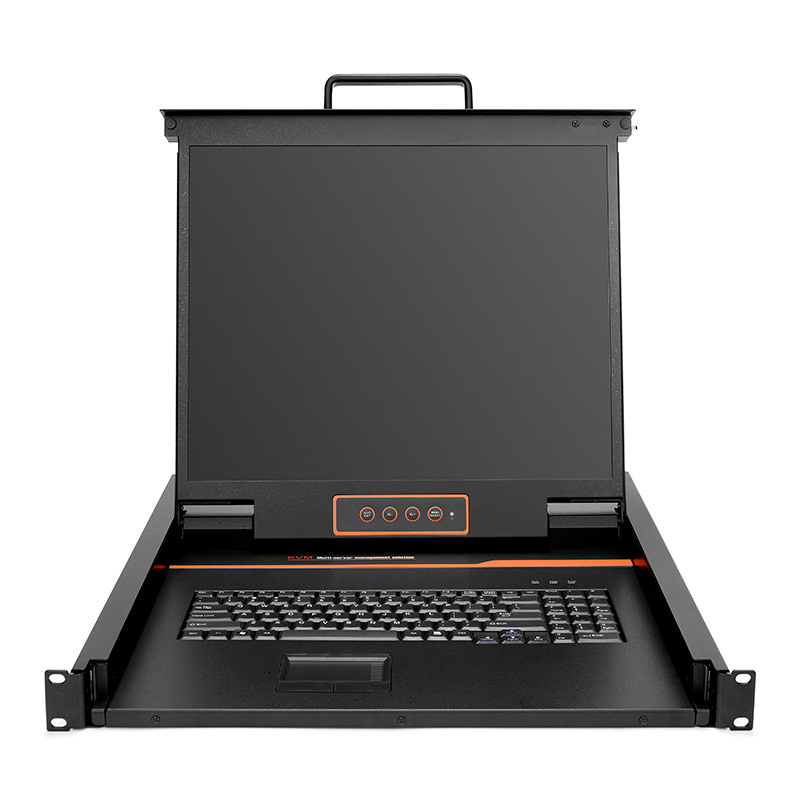

Kinan’s LD1901 is a rack mount monitor KVM that features an integrated 19″ LCD monitor, full 99-key keyboard and touchpad in a 1U compact housing. The included cable allows for connection to a USB computer or KVM. Features a 19-inch LCD TFT panel, the LD1901 supports resolutions of up to 1280×1024@60Hz.

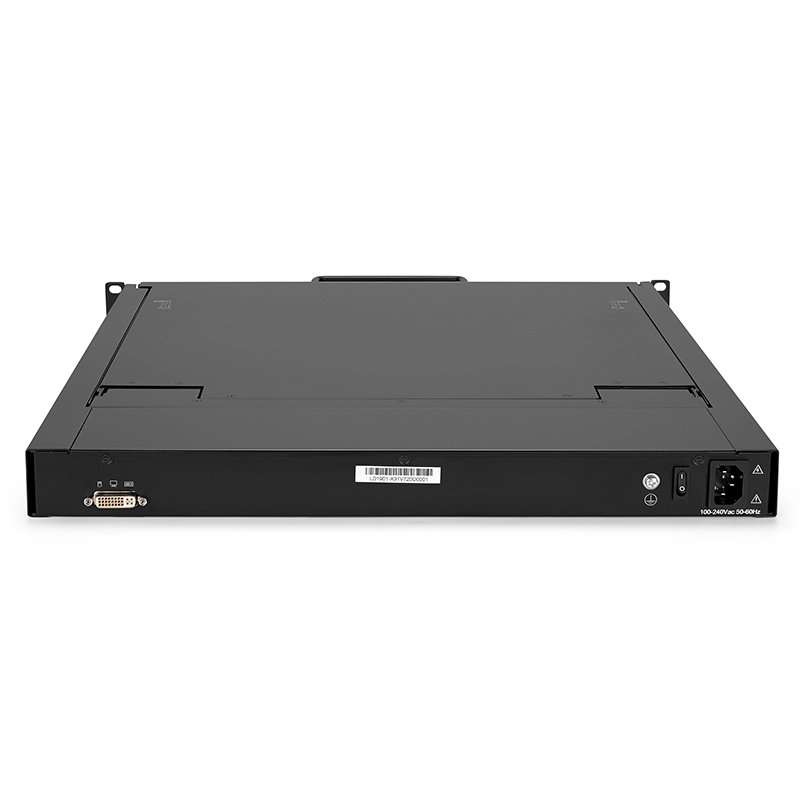

The LD1901 rack mount KVM console features a single DVI port, which can be connected directly to a server or PC, or to a KVM switch to control multiple systems. The kvm switch with monitor serves as the monitoring and managing console for standard KVM Switches.

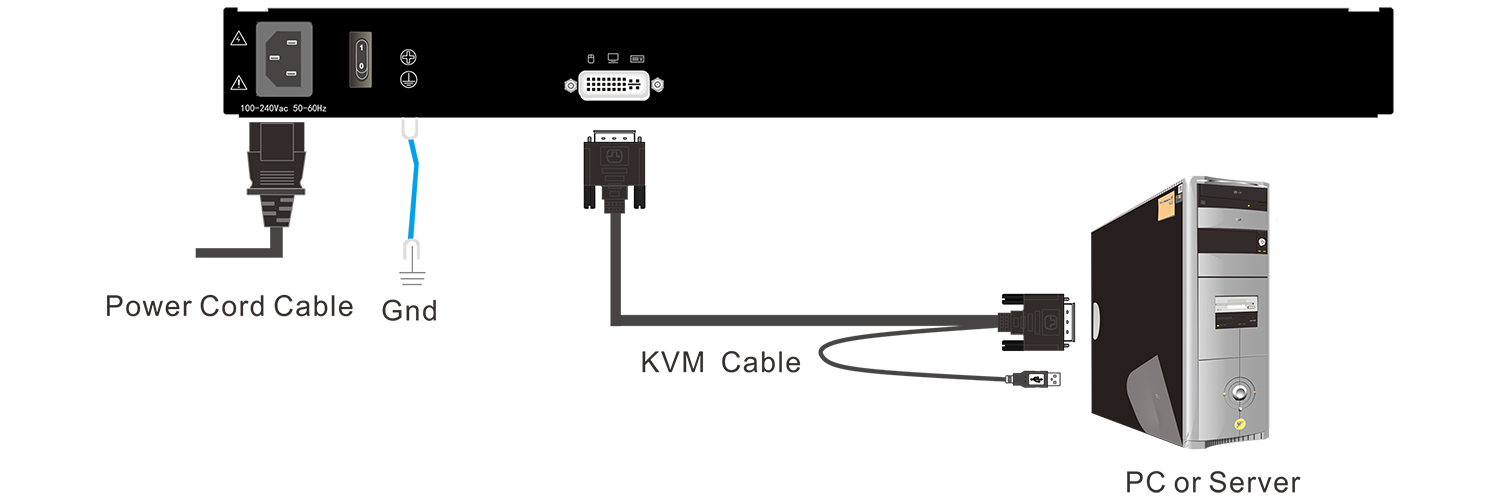

Diagram

Specification

Model		LD1901
Computer Connections	Direct	1
Computer Connections	Max	1
Port emulation	Keyboard, mouse	USB
LED monitor	LED model	SXGA TFT
	View area	19 “
	Optimum resolution	1280×1024@60Hz
	Display color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	1000 : 1 （ T y p ）
	Pixel pitch(mm)	0.2928(H) × 0.2928(W)
Mouse	X/Y resolution	>1000 points / inch, (40 points/mm)
Mouse	Scroll wheel	Support scroll wheel function
Keyboard		99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Input power		100V-240Vac, 50-60Hz, <1.5A
Power consumption		17W
DVI Signal		DVI-D
Operating temperature		0 ─ 50 ℃
Store temperature		-20 ─ 60 ℃
Humidity		0─80% RH, non-condensing
Net weight		12 kg
Product dimension (W × D × H)		448mm×505mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
