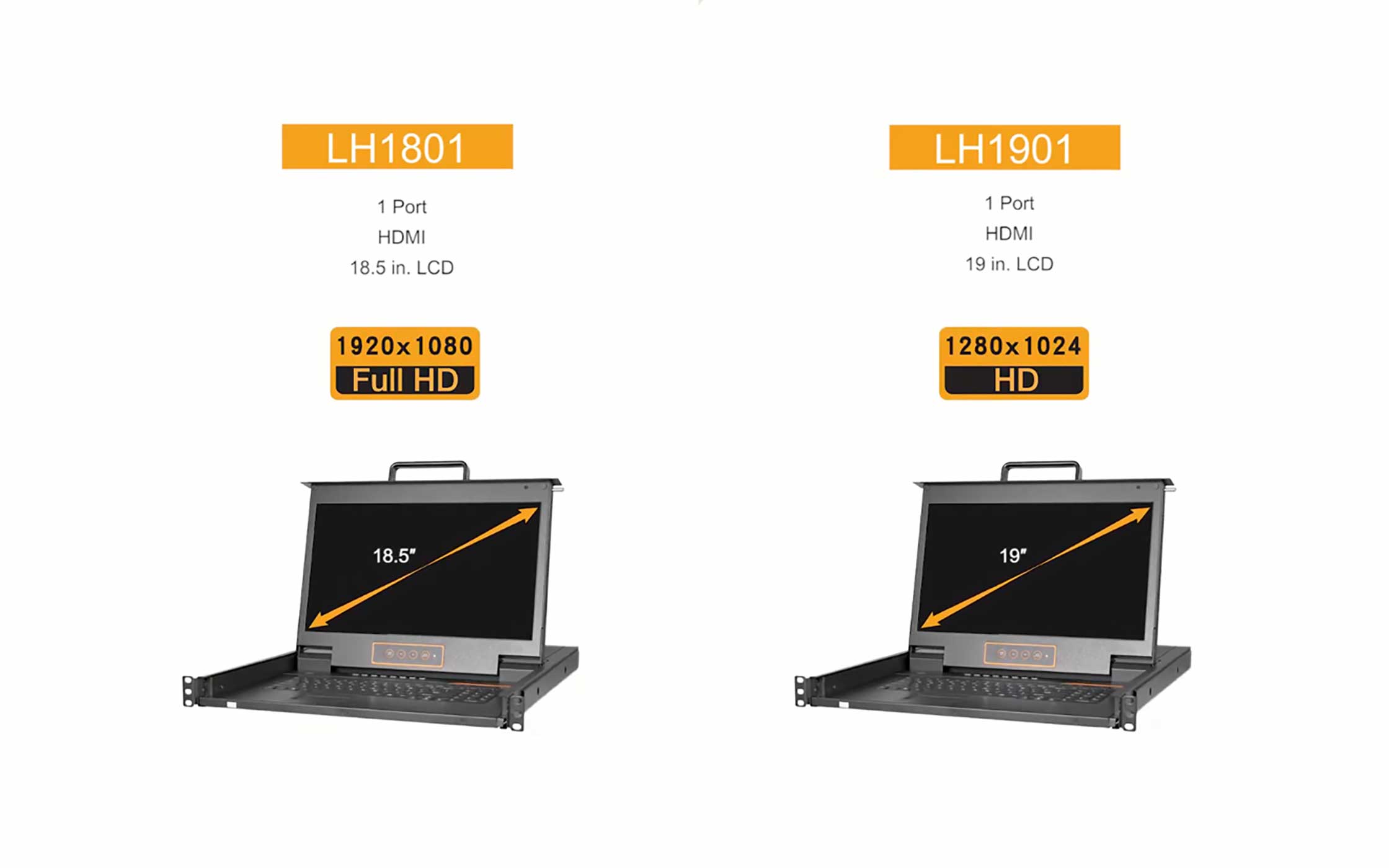

1U Rackmount 18.5″ Widescreen HDMI® LCD KVM Console

Model No.: LH1801

Hardware Structure: A short depth single rail rack console featuring an 18.5″ LCD monitor with an integrated keyboard and touchpad, fits for all standard 19” equipment cabinet.
Simple Design: Easy to install and simple to operate. It slides neatly into a 1U rack space when not in use.

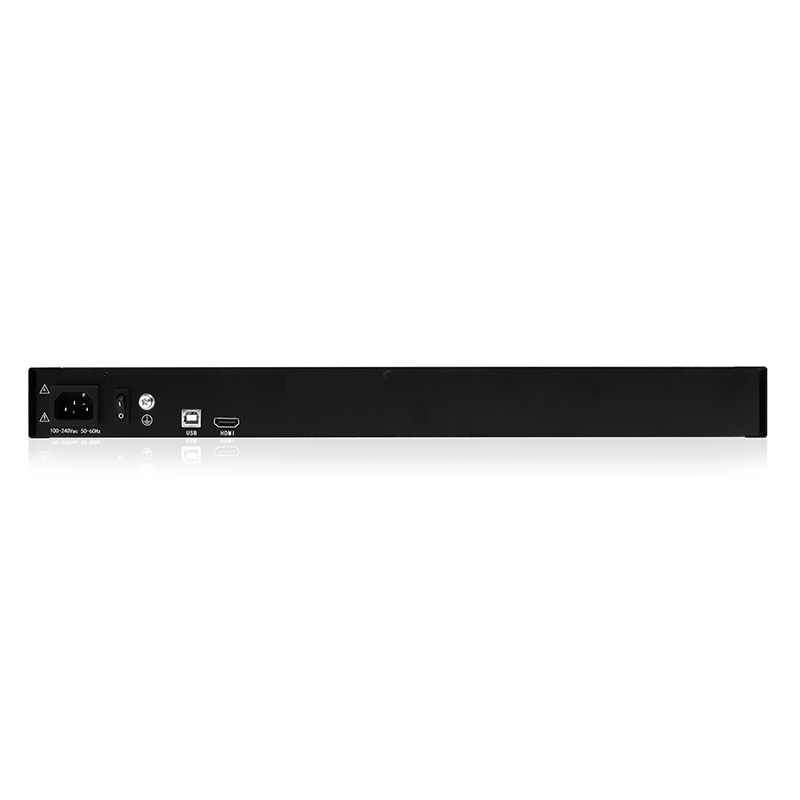

Standard HDMI connection: Connect to a server or computer via standard HDMI connector.
High Video Resolution: The 18.5″ LCD screen supports video resolutions up to 1920 x 1080@60Hz.
Adjustable LCD Display Module: LCD module can be opened up to 108 degrees to provide a comfortable viewing experience.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

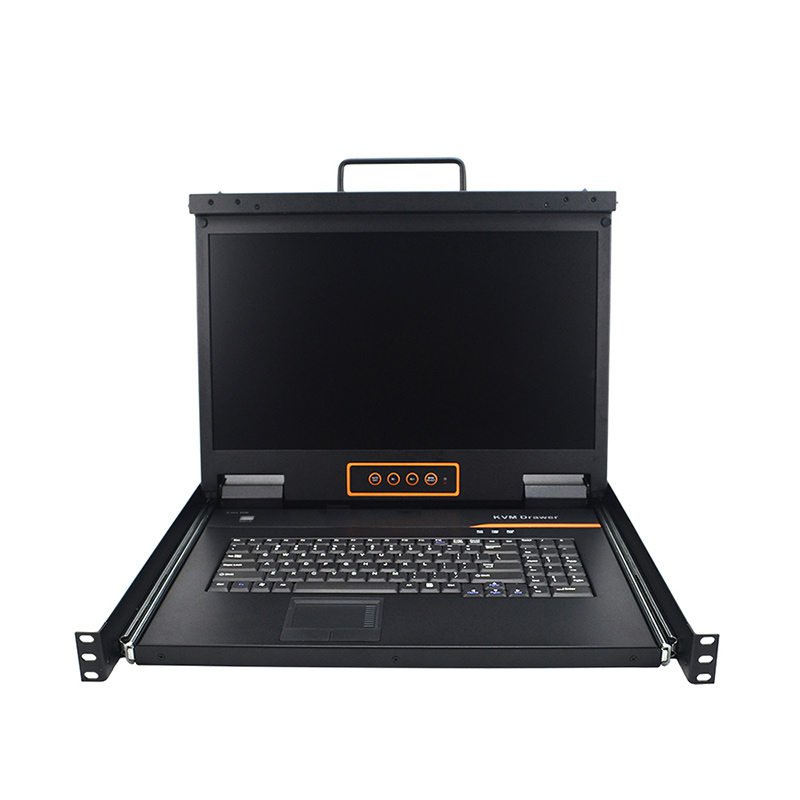

Kinan’s LH1801 rackmount monitor keyboard mouse features an integrated 18.5″ LCD monitor, full 99-key keyboard and touchpad in a 1U compact design. The included cable allows for connection to a USB computer or KVM. Features an 18.5-inch FHD LCD panel, the LH1801 supports resolutions of up to 1920×1080@60Hz.

The LH1801 HDMI kvm console features a single HDMI port, which can be connected directly to a server or PC, or to a KVM switch to control multiple systems. The kvm switch with LCD display serves as the monitoring and managing console for standard KVM Switches.

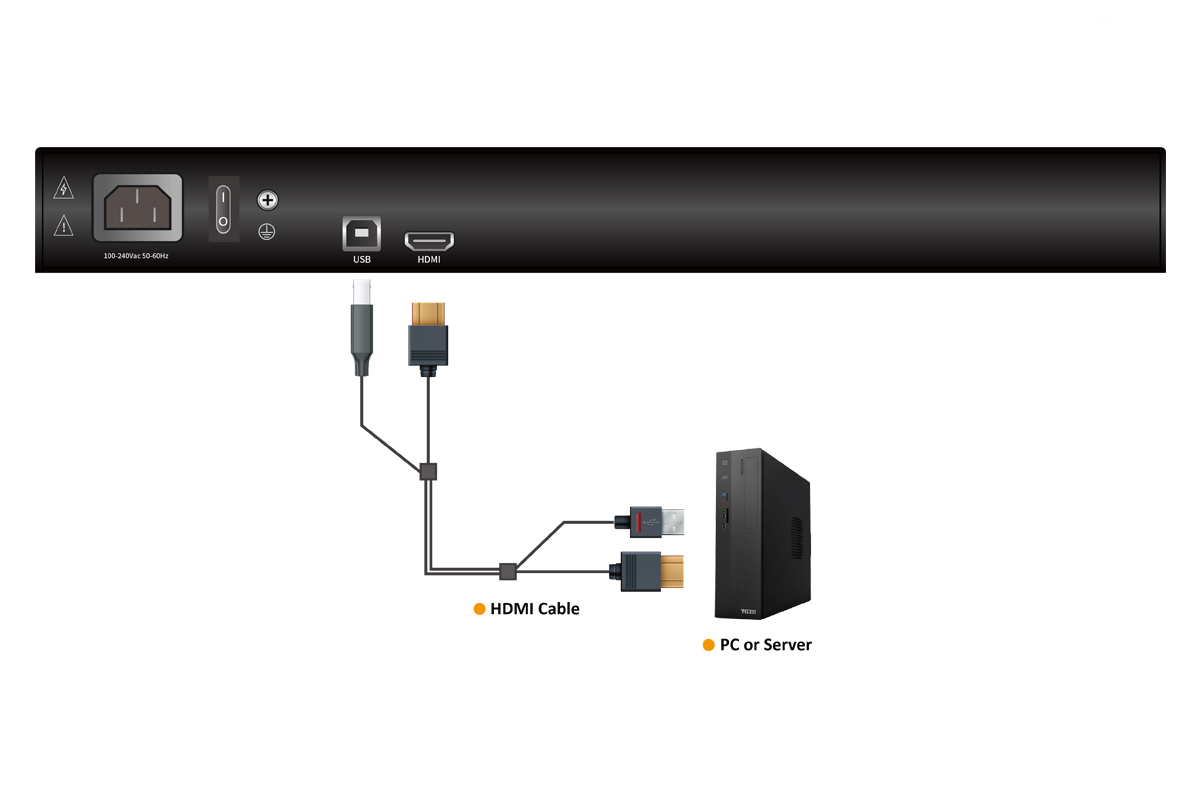

Diagram

Specification

Model		LH1801
Computer Connections	Direct	1
Computer Connections	Max	1
Port emulation	Keyboard, mouse	USB
LCD monitor	LCD model	FHD TFT
	View area	18.47″
	Optimum resolution	1920×1080@60Hz
	Display color	16.7 M
	Brightness	250cd/ m² (T y p)
	Contrast ratio	1000: 1 (T y p)
	Pixel pitch(mm)	0.213(H) ×0.213(W)
Mouse	X/Y resolution	>1000 points / inch, (40 points/mm)
Mouse	Scroll wheel	Support scroll wheel function
Keyboard		99 keys
Keyboard		(82 keys main keyboard +17 independent small numeric keyboard)
Input power		100V-240Vac, 50-60Hz, <1.5A
Power consumption		19W
Mounting distance		686-770mm (L=262mm)
Mounting distance		Mounting bracket can be customized for Other mounting distance
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non-condensing
Net weight		12.2kg
Product dimension (W× D×H)		448mm×560mm×42.5mm
Package dimension (W× D×H)		765mm×615mm×185mm
Optional power input		-36V— -72Vdc
