1U Rackmount 17.3″ Widescreen HDMI® LCD KVM Console

Model No.: LH1701

Hardware Structure: A short depth single rail rack console featuring a 17.3″ LCD monitor with an integrated keyboard and touchpad, fits for all standard 19” equipment cabinet.

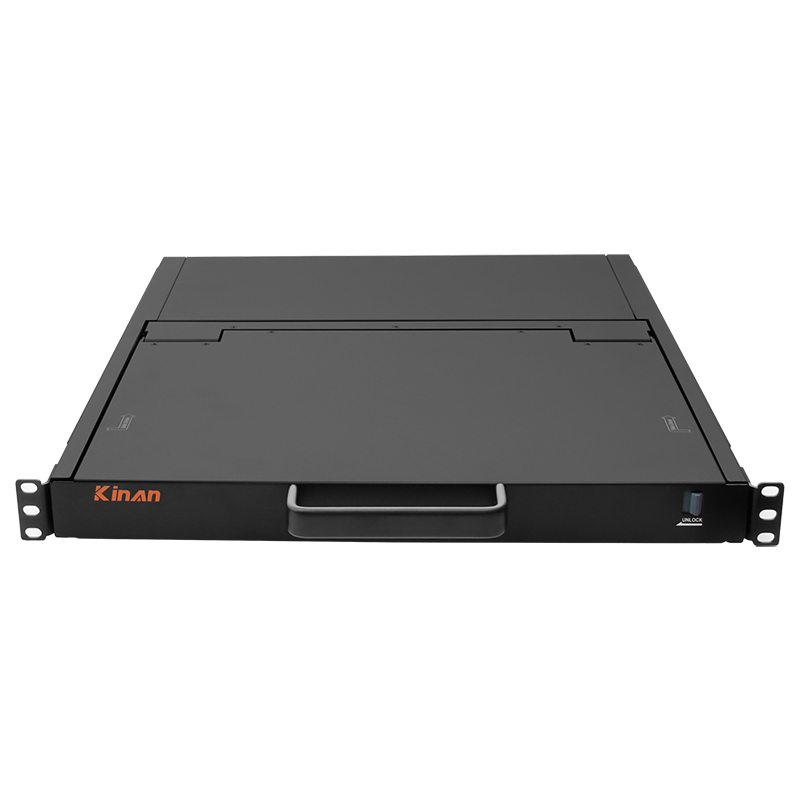

User-friendly Design: Easy to install and simple to operate. It slides neatly into a 1U rack space when not in use.
Standard HDMI Connection: Connect to a server or computer via standard HDMI connector.
High Video Resolution: The 17.3″ LCD screen supports video resolutions up to 1920 x 1080@60Hz.
Free Connection: It can connect to a server directly or a switch with multiple ports.
Flexible LCD Display Module: LCD module can be opened up to 108 degrees to provide a comfortable viewing experience.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

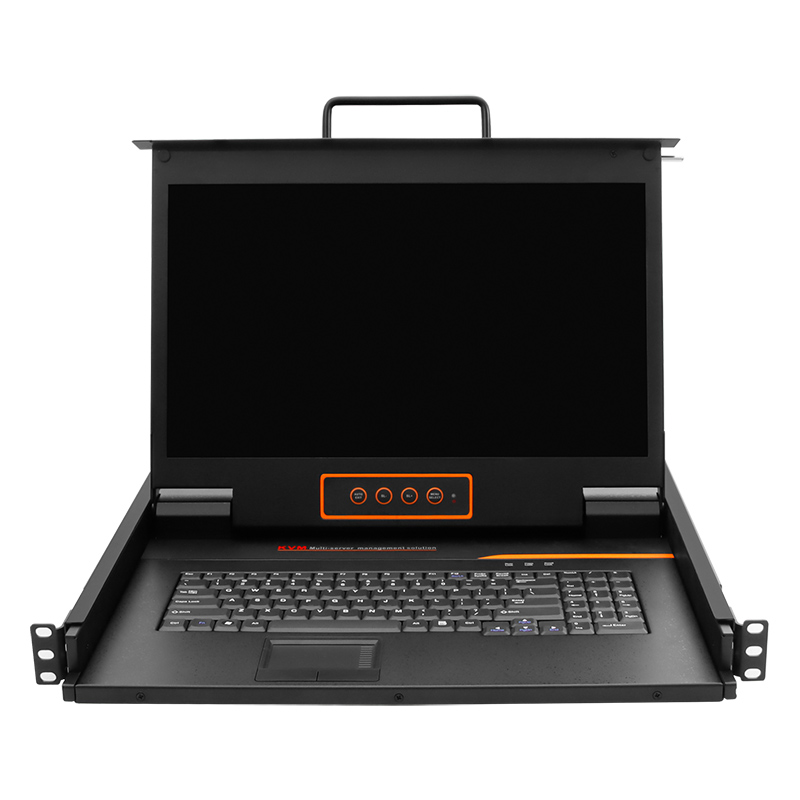

Kinan’s LH1701 is a 1U kvm console featuring an integrated 17.3″ LCD monitor, full 99-key keyboard and touchpad in a single rail housing that occupies only 1U of rack space. The included cable allows for connection to a USB computer or KVM. Features a 17.3-inch LCD TFT panel, the LH1701 supports high video quality up to 1920×1080@60Hz.

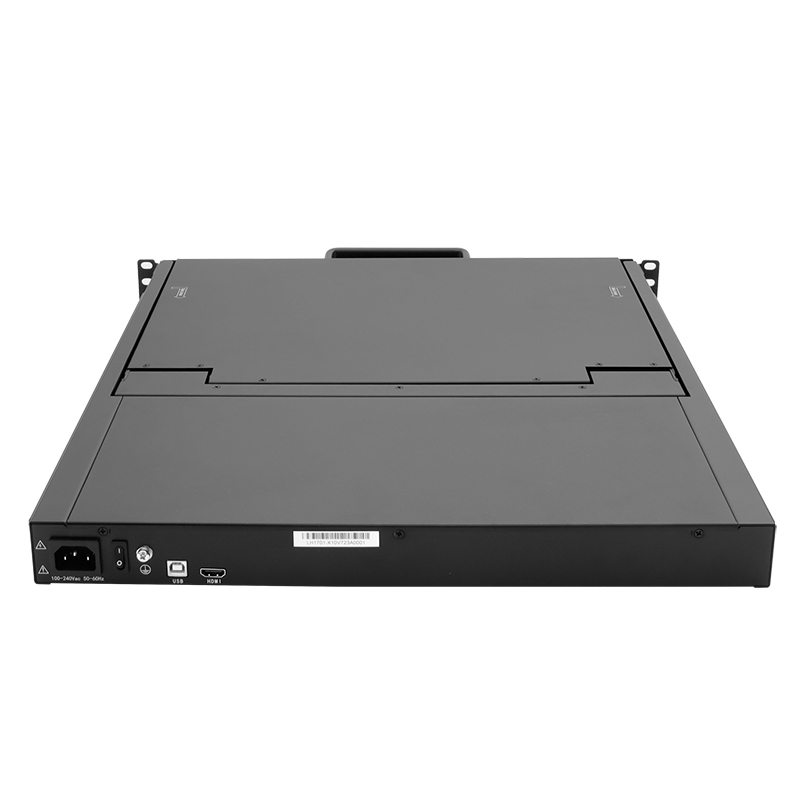

The LH1701 rackmount kvm features a single HDMI port, which can be connected directly to a server, PC, or a KVM switch to control multiple systems. The kvm monitor serves as the monitoring and managing console for standard KVM Switches.

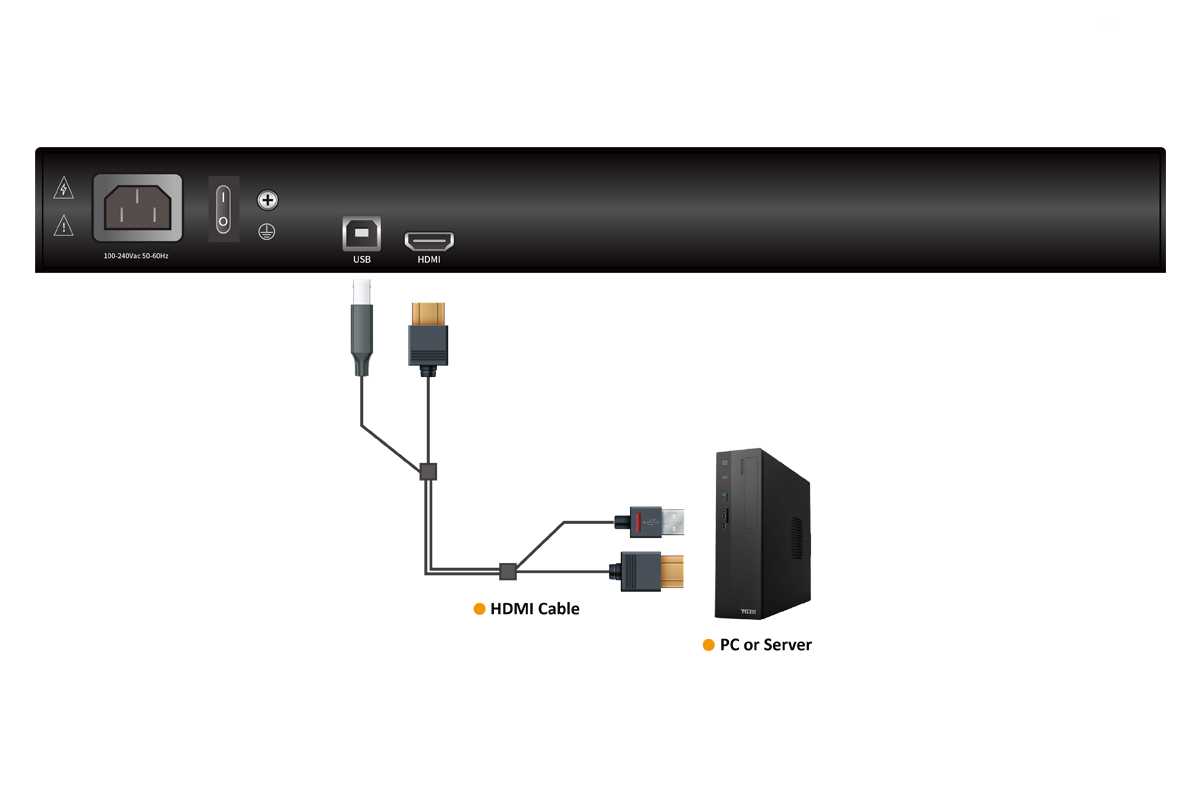

Diagram

Specification

Model		LH1701
Computer Connections	Direct	1
Computer Connections	Max	1
Port emulation	Keyboard, mouse	USB
LCD monitor	LCD model	FHD TFT
	View area	17.3″
	Optimum resolution	1920×1080@60Hz
	Display color	16.7 M
	Brightness	250cd/m² (T y p)
	Contrast ratio	800: 1(T y p)
	Pixel pitch(mm)	0.1989(H) × 0.1989(W)
Mouse	X/Y resolution	>1000 points / inch, (40 points/mm)
	Touchpad with	Eliminates the need for an external mouse
	trackball	Eliminates the need for an external mouse
Keyboard		99 keys (82 keys main keyboard+17 independent small number pad)
Input power		100V-240Vac, 50~60Hz, <1.5A
Power consumption		10W
Operating temperature		0—50 ℃
Storage temperature		-20— 60 ℃
Humidity		0—80% RH, non-condensing
Net weight		10.5 kg
Product dimension (W × D × H)		448mm×525.6mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
Optional power input		-36V— -72Vdc
