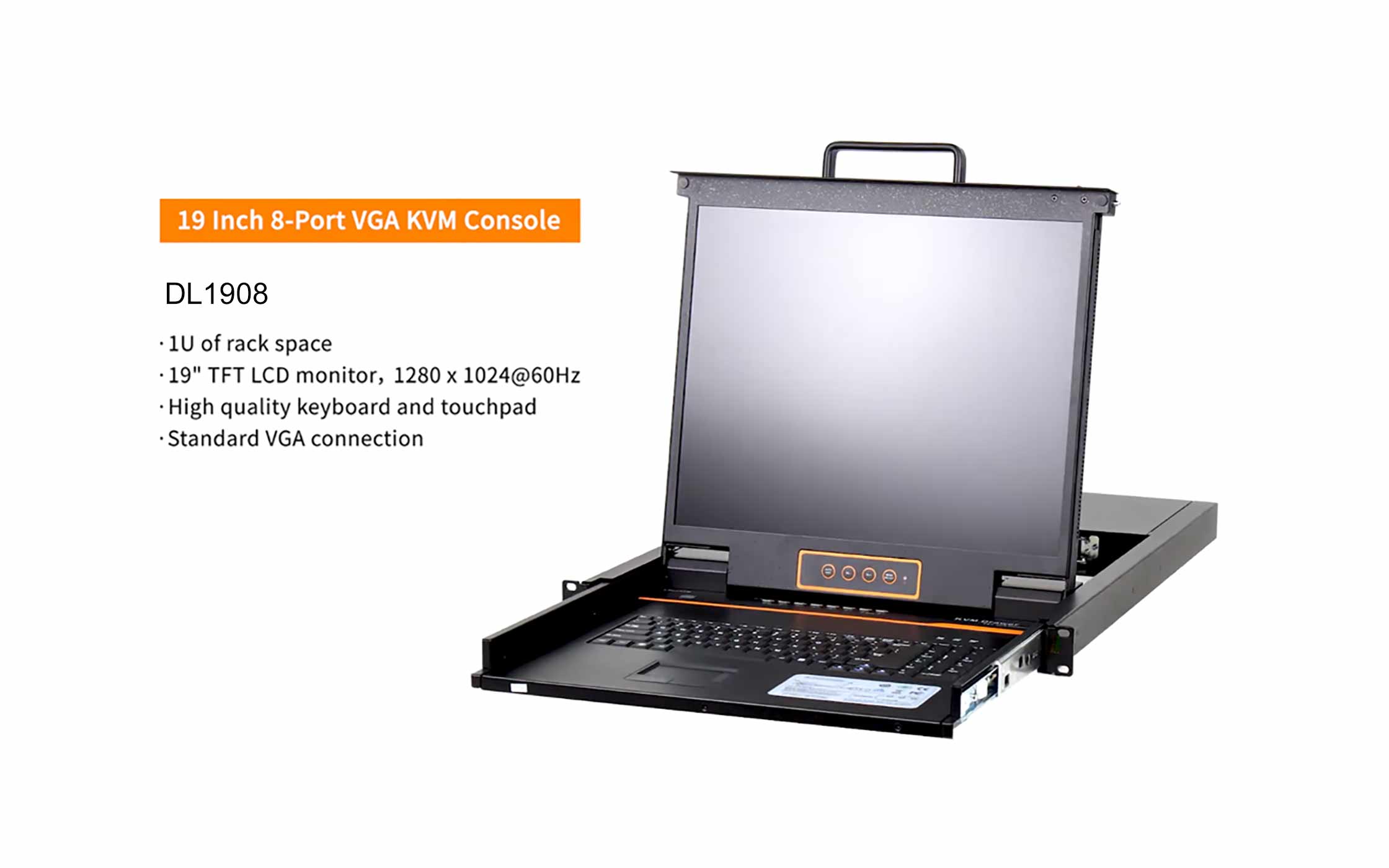

19″ Rack Mount Dual Rail 8 Port LCD KVM Switch

Model No.: DL1908

Hardware Structure: A short depth dual rail rack console featuring a 19″ LCD monitor with an integrated keyboard and touchpad, fits for all standard 19” equipment cabinet.

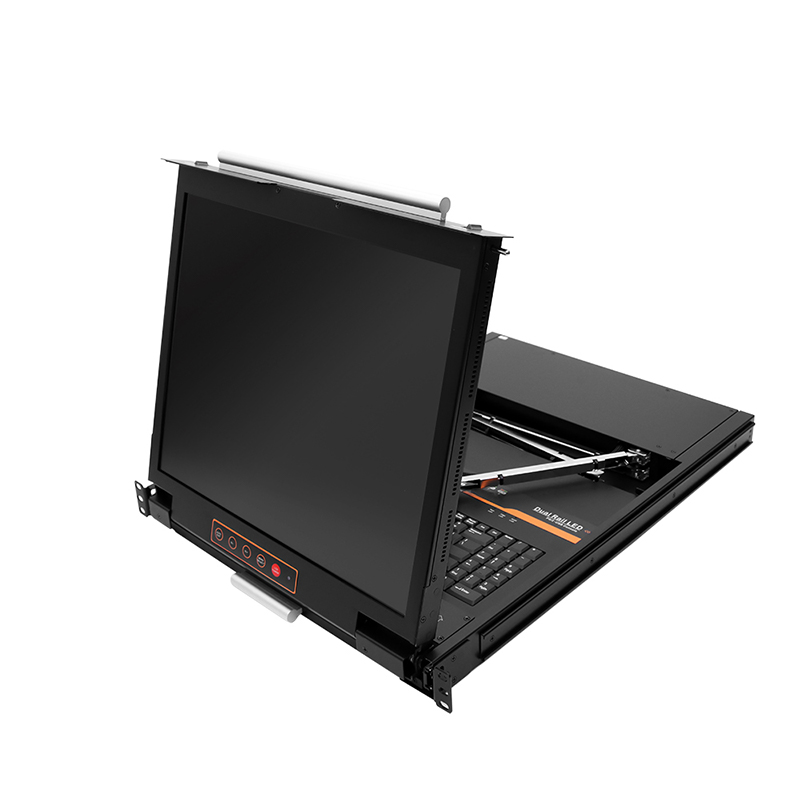

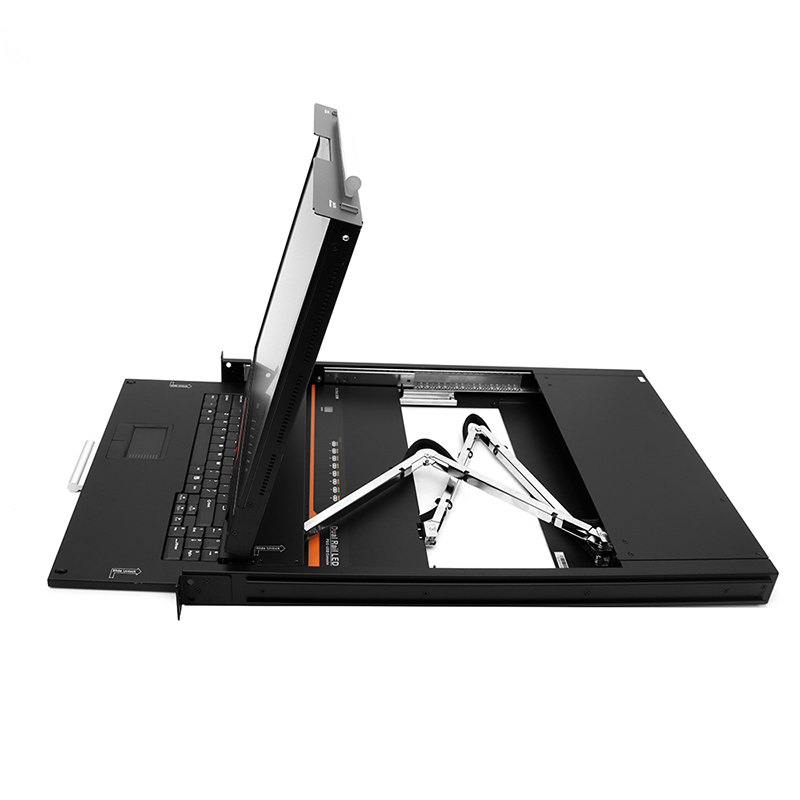

User-friendly Design: The LCD panel and keyboard/touchpad modules slide independently of each other, the keyboard/touchpad module slides back to “hide away” when not in use, while the thin profile LCD monitor rotates back, flush against the rack.
High Video Resolution: The 19in. LCD screen supports video resolutions up to 1280 x 1024@60Hz.
Control of Computers: A single console controls up to 8 computers.
Easy to View: The users can easily watch something on the screen because the LCD module can be opened up to 108 degrees.
High Security: Only authorized users view and control computers.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

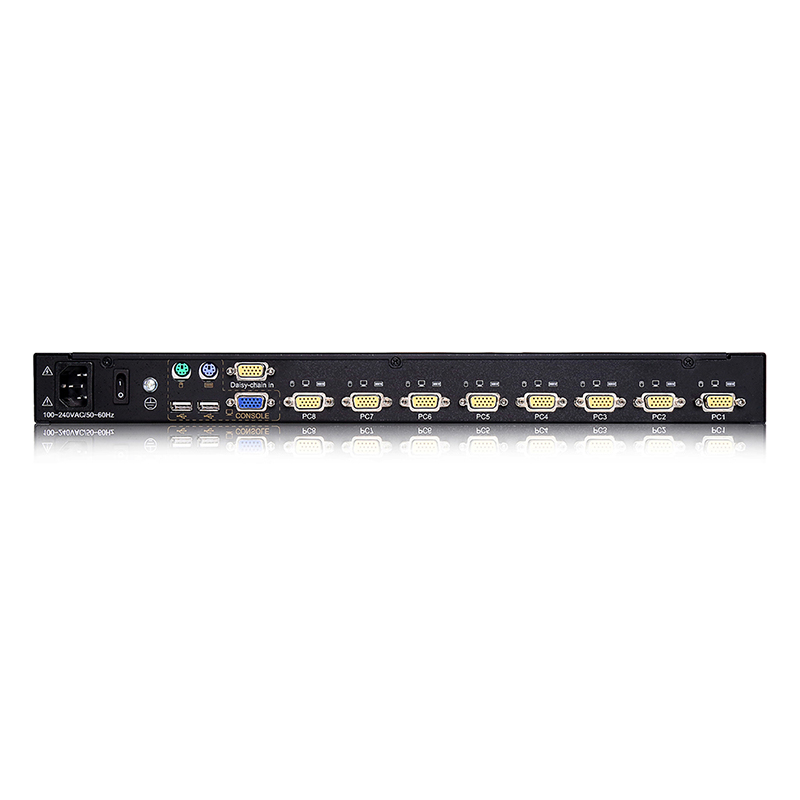

The DL1908 dual rail LCD KVM Switch is a control unit that allows access and control up to 8 computers from a single console. An extra console port is provided on the rear panel to manage the LCD KVM switch from an external console.

The 19″ LCD monitor and keyboard/touch pad modules slide independently of each other. By cascading 31 additional switches, as many as 256 computers can be controlled from a single keyboard-monitor-mouse console.
The DL1908 LCD KVM Switch has a built-in LCD monitor that supports resolution up to 1280×1024@60Hz.

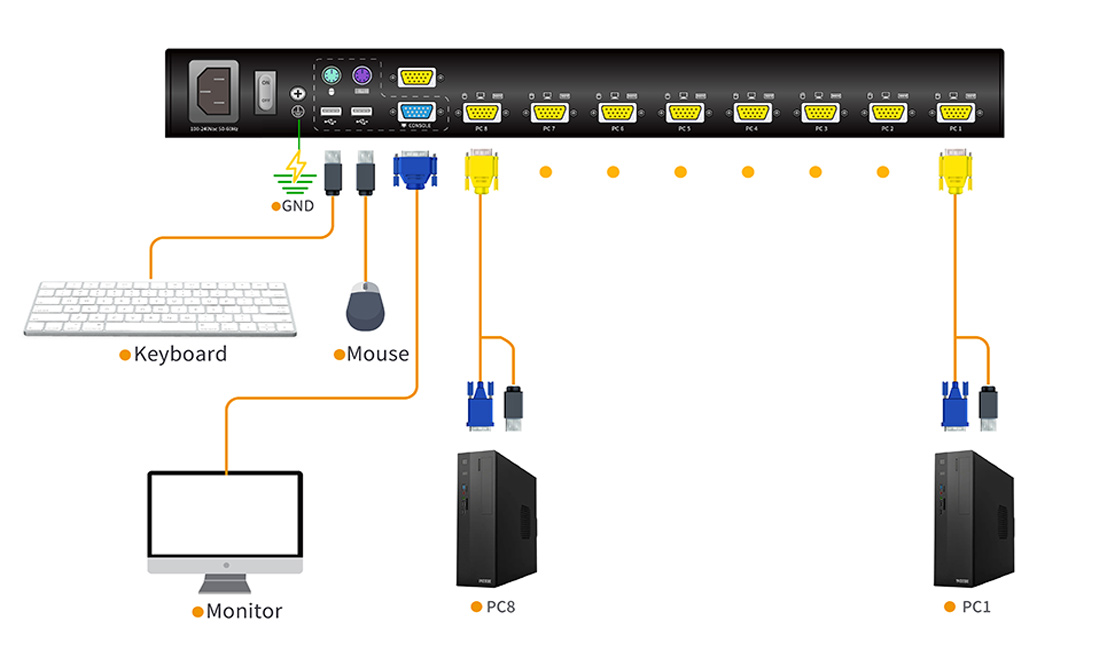

Diagram

Specification

Model		DL1908
Computer connections	Direct	8
Computer connections	Max	256
Port emulation	Keyboard, mouse	PS/2, USB
LCD monitor	LCD Model	SXGA TFT
	View area	19″
	Optimum resolution	1280×1024@60Hz
	Display color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	1000 : 1 （ T y p ）
	Pixel pitch(mm)	0.2928(H) × 0.2928(W)
Mouse	X/Y resolution	>1000 points /inch, (40 points/mm)
Mouse	Roll wheel	Supports scroll wheel function
Keyboard		99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Port selection		hotkeys, OSD menu
Input power		100V- 240Vac, 50-60Hz, <1.5A
Power consumption		21W
Mounting distance		610~950mm (L=420mm)
Mounting distance		Mounting rails can be customized for other mounting distance.
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non condensing
Net weight		13.6kg
Product dimension (W × D × H)		448mm×605mm×43.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
Optional power input		-36V– -72V DC
