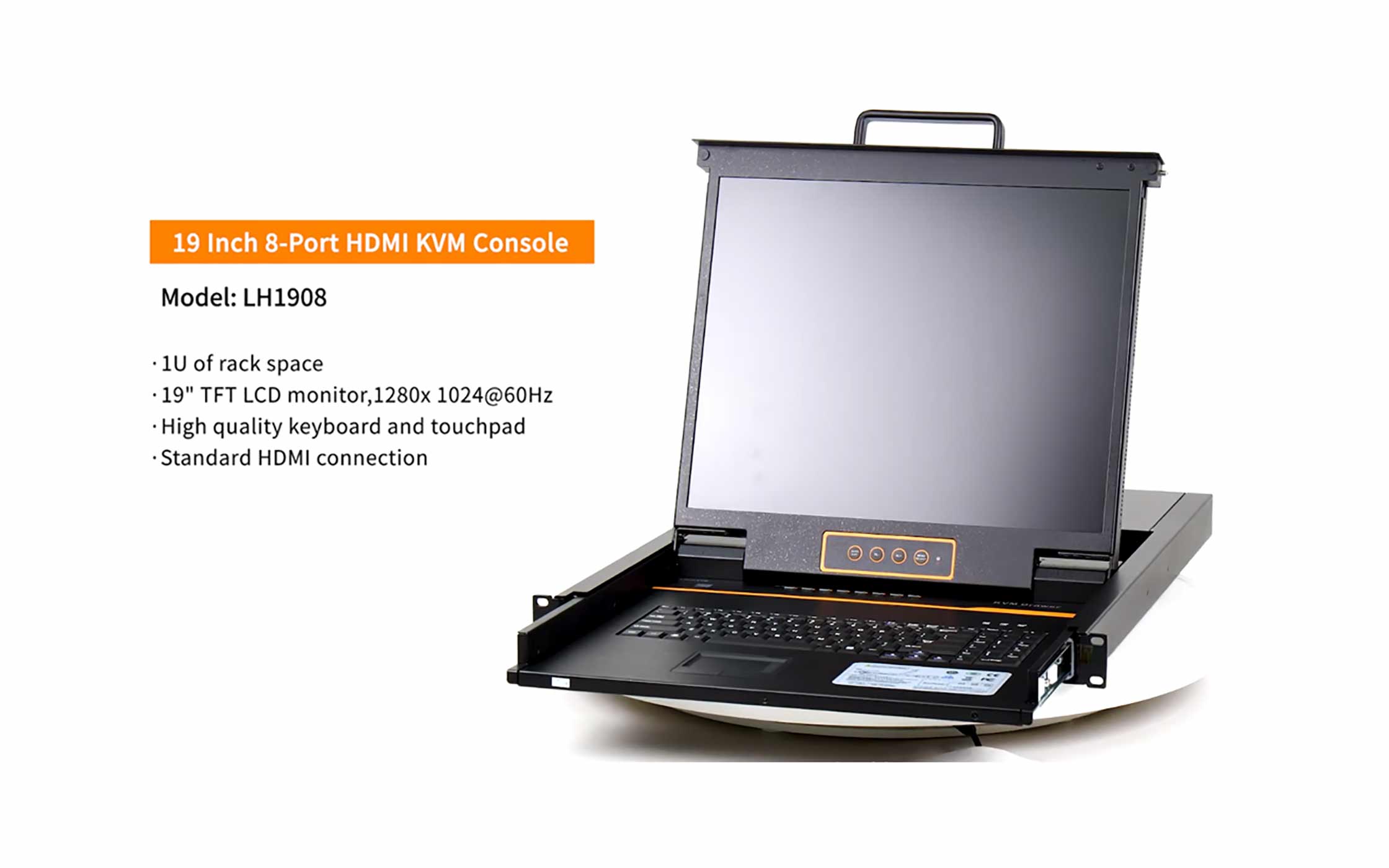

19″ 8 Port HDMI® Rackmount LCD KVM Switch

Model No.: LH1908

Hardware Structure: A rackmount switch with a 19″ LCD monitor.
Number of Computers: Allow users to control up to 8 computers from a single console.
High Video Resolution: The maxium resolution is 1280 x 1024 @60Hz.
Diverse Switching Methods: Front panel LEDs, hotkeys and on-screen-display(OSD) menu for switching computers.
Standard HDMI Connection: Connect to a server or computer via standard HDMI connectors.
Support Hot Plugging: The users can simply add or remote servers directly without need for powering off the LCD KVM switch.
Convenient Viewing Experience: The flexible LCD module (up to 108 degrees) provides ultimate convenience for users.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

The Kinan LH1908 HDMI rackmount LCD KVM switch is designed with a 19″ LCD monitor, bulit-in keyboard, and touchpad, occupying only 1U space. With this switch, users can control up to 8 computers from a single console (keyboard, mouse and monitor).

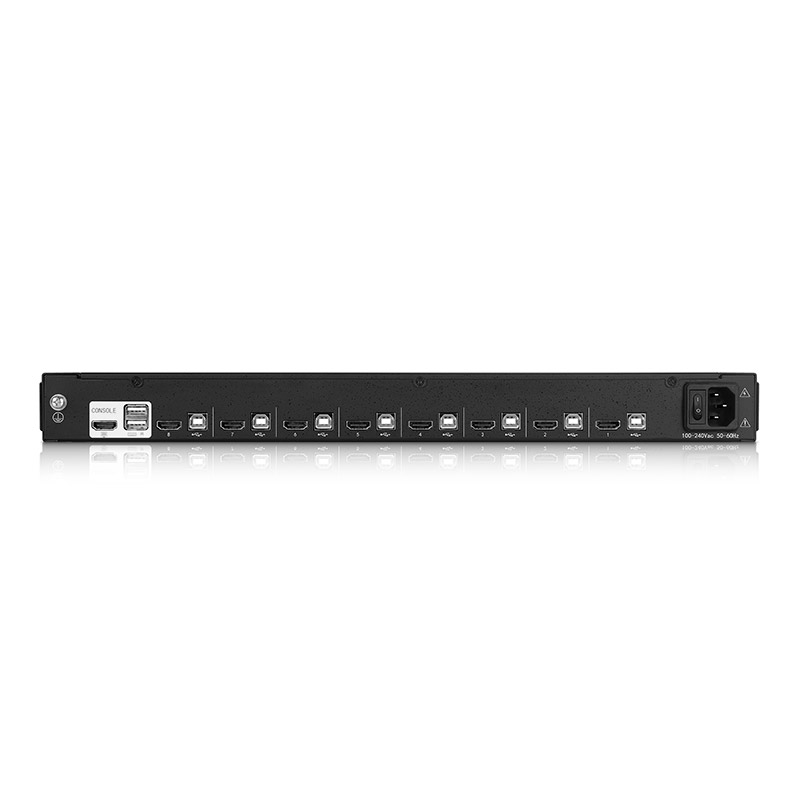

The LCD monitor of this rackmount LCD KVM switch supports resolution up to 1280×1024@60Hz. Switching target computers by three switching methods including front panel pushbuttons, hotkeys, and on-screen-display(OSD) menu. The KVM switch supports USB connections for the computers. An extra HDMI port allows an additional HDMI monitor to be connected.

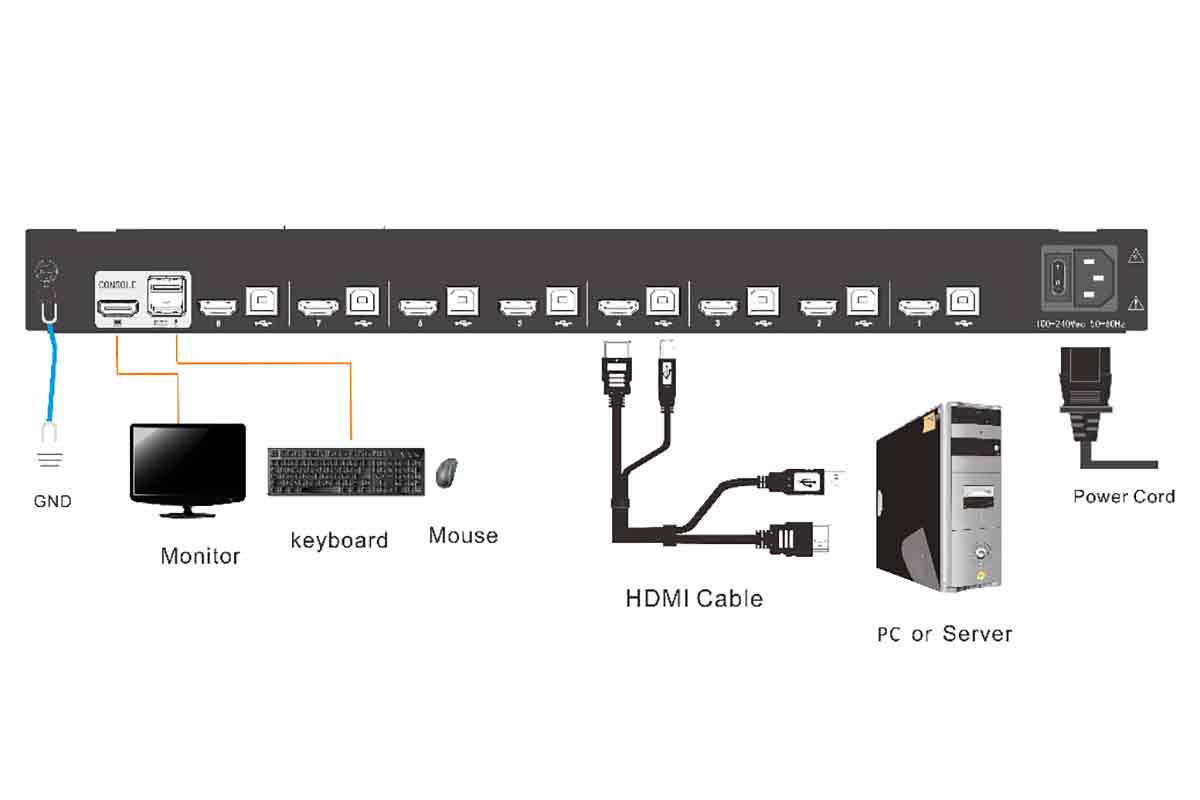

Diagram

Specification

Function		LH1908
Computer connections	Direct	8
Computer connections	Max	8
Port emulation	Keyboard, mouse	USB
LED monitor	LED model	SXGA TFT
	View area	19″
	Optimum resolution	1280×1024@60Hz
	Display color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	1000 : 1 （ T y p ）
	Pixel pitch(mm)	0.2928(H) × 0.2928(W)
Mouse	X/Y resolution	>1000 points /inch,( 40 points/mm )
Mouse	Roll wheel	Supports scroll wheel function
Keyboard		99 keys
Keyboard		(82 keys main keyboard +17 independent small numeric keyboard)
Port selection		Front panel pushbuttons,hotkeys,OSD menu
Input power		100V- 240Vac , 50-60Hz , <1.5A
Power consumption		23W
Mounting distance		716~825mm ( L=262mm)
Mounting distance		Mounting rails can be customized for other mounting distance.
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non condensing
Net weight		13.4kg
Product dimension (W × D × H)		448mm×605mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
Optional power input		-36V— -72V DC
