19″ 8 Port DVI Rackmount LCD KVM Switch

Model No.: LD1908

Hardware Structure: A 1U rackmounted KVM switch with a 19″ widescreen monitor.
Number of Computers: Allow users to control up to 8 computers from a single console.
High Video Resolution: The supported resolution is up to 1280 x 1024@60Hz.
Optional Computer Switching Methods: Front panel LEDs, keyboard hotkeys, and on-screen-display (OSD) menu.
Standard DVI connection: Connect to a server or computer via standard DVI connectors.
Support Hot Plugging: Add or remove computers without having to power down the switch.
Comfortable Viewing: The flexible LCD module can be opened up to 108 degrees to provide users with an enjoyable viewing experience.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

Kinan LD1908 DVI rackmount LCD KVM switch consists of a 19″ widescreen monitor, a keyboard, and a touchpad, occupying only 1U height space. This single console (keyboard, mouse, and monitor) allows users to access to and control up to 8 computers conveniently. The built-in LCD monitor supports high resolution up to 1280 x 1024@60Hz. The easy switching methods includes front panel pushbuttons, keyboard hotkeys and on-screen-display (OSD) menu.

This Kinan LCD KVM switch is easy to install. With its user-friendly design, the users just need to plug the cables into the propriate ports of the servers or computers without any software or compatibility issue. The mounting rails can be adjusted according to the deepth of the cabinet and the installation position depends on the clients’ requirement.

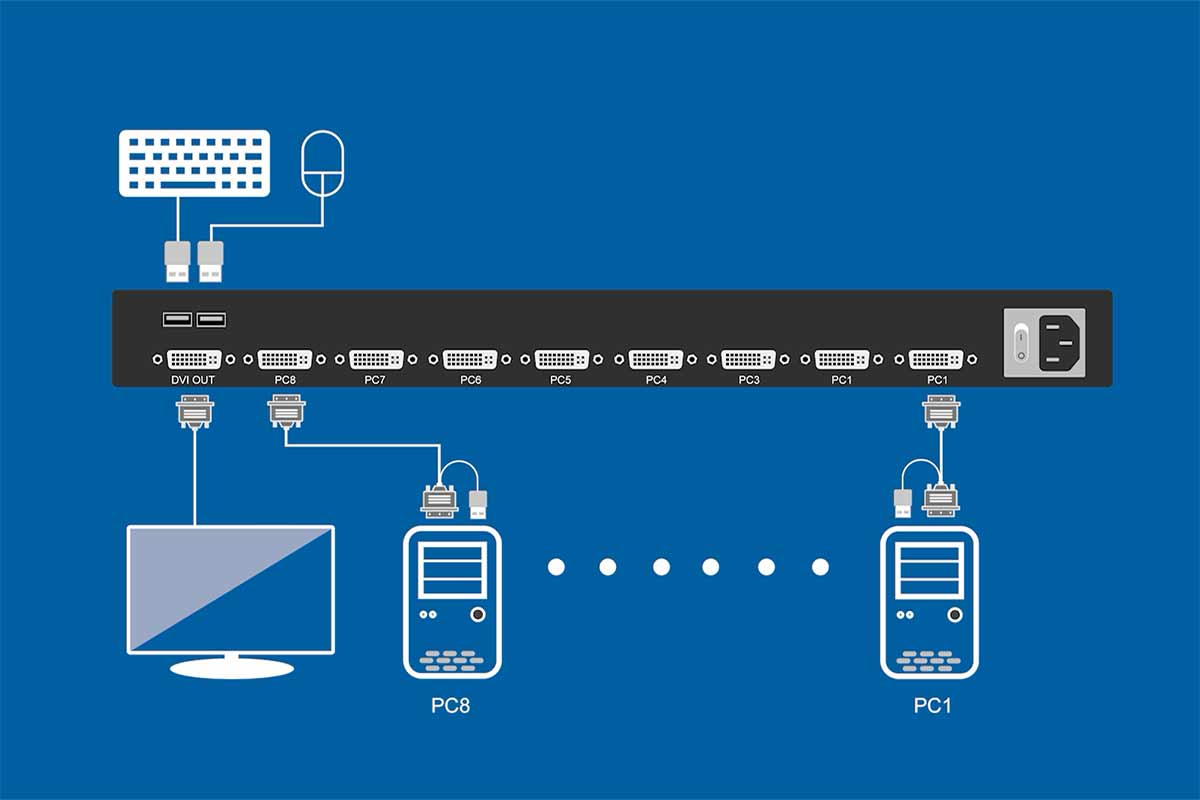

Diagram

Specification

Function		LD1908
Computer connections	Direct	8
	Max	8
Port emulation	Keyboard, mouse	USB
LED monitor	LED model	SXGA TFT
	View area	19″
	Optimum resolution	1280×1024@60Hz
	Display color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	1000 : 1 （ T y p ）
	Pixel pitch(mm)	0.2928(H) × 0.2928(W)
Mouse	X/Y resolution	>1000 points /inch,( 40 points/mm )
	Roll wheel	Supports scroll wheel function
Keyboard		99 keys
		(82 keys main keyboard +17 independent small numeric keyboard)
Port selection		Front panel pushbuttons, hotkeys, OSD menu
Input power		100V- 240Vac , 50-60Hz , <1.5A
Power consumption		23W
Mounting distance		716~825mm ( L=262mm)
		Mounting rails can be customized for other mounting distance.
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non condensing
Net weight		13.4kg
Product dimension (W × D × H)		448mm×605mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
Optional power input		-36V— -72V DC
