19″ 4 Port USB VGA LCD KVM Switch

Model No.: XL1904

Hardware Structure: Integrated KVM Console with a 19″ LCD monitor.
Type of Ports: Designed with VGA and USB port.
Control of Computers: A single console controls up to 4 computers.
High Video Resolution: The Resolution is up to 1280 x 1024 @60Hz
User-friendly LCD Module: LCD module can be opened up to 108 degrees to provide a comfortable viewing angle.
Convenient Computer Switching: via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD) menu.
Daisy Connection: The users can control up to 128 servers.
Easy to Use: It can be used simply by connecting cables to right ports directly.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

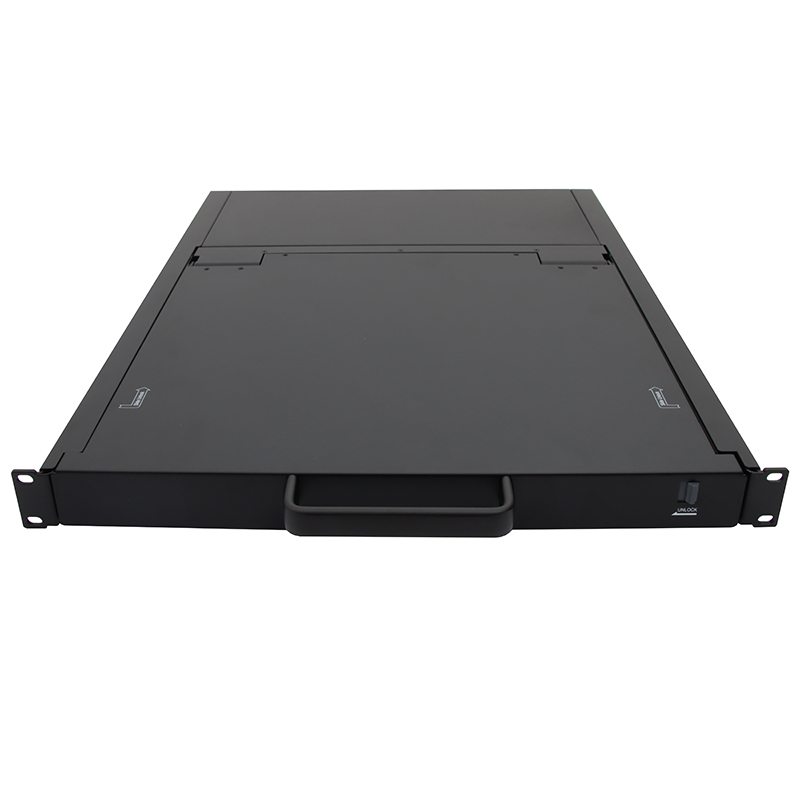

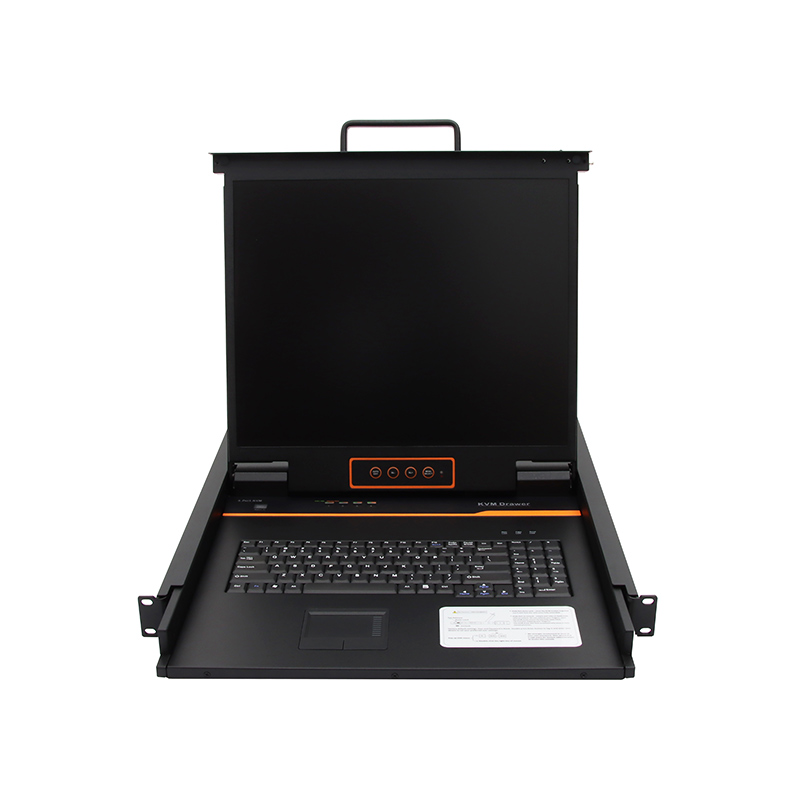

The Kinan XL1904 KVM console features an integrated 19″ LCD screen, keyboard and touchpad in a single console that occupies only 1U of rack space. It allows access and control up to 4 computers from a single console (keyboard, mouse and monitor). The number of connected computers can be increased up to 128 by daisy-chaining up to 31 KVM Switches.

This USB VGA KVM switch has a built-in LCD monitor that supports resolution up to 1280×1024@60Hz. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD).

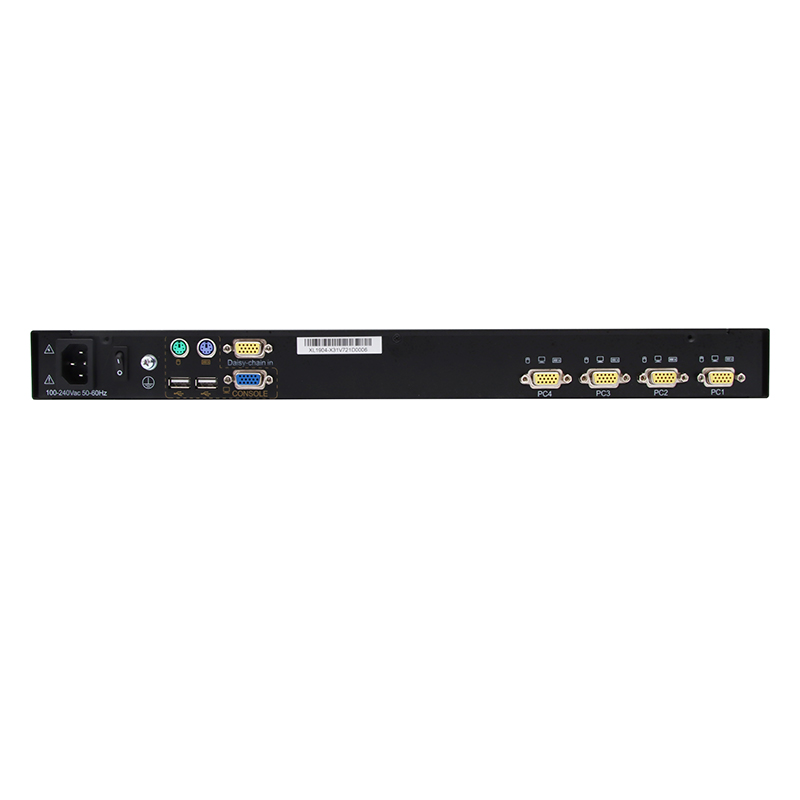

The LCD KVM switch supports USB connection for the computers. An extra HDB15 port allows an additional VGA monitor to be connected.

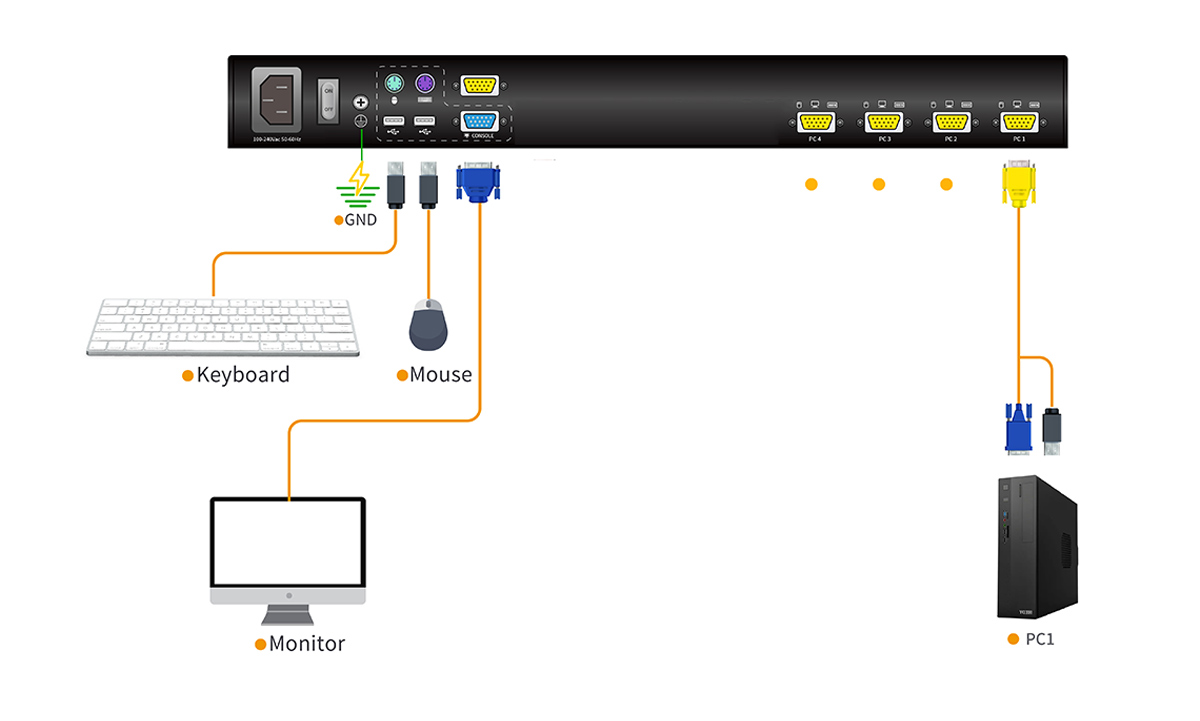

Diagram

Specification

Model		XL1904
Computer connections	Direct	4
Computer connections	Max	128
Port emulation	Keyboard, mouse	USB
LCD monitor	LCD model	SXGA TFT
	View area	19″
	Optimum resolution	1280×1024@60Hz
	Display color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	1000 : 1 （ T y p ）
	Pixel pitch(mm)	0.2928(H) × 0.2928(W)
Mouse	X/Y resolution	>1000 points / inch, (40 points/mm)
Mouse	Touchpad	Eliminates the need for an external mouse
Keyboard		99 keys (82 keys main keyboard +17 independent small number pad)
Port selection		pushbuttons, hotkeys, OSD menu
Input power		100V- 240Vac, 50~60Hz, <1.5A
Power consumption		20W
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non- condensing
Net weight		13.2kg
Product dimension (W × D × H)		448mm×605mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
