19″ 16 Port DVI Rackmount LCD KVM Switch

Model No.: LD1916

Hardware Structure: An LCD KVM switch with a 19″ widescreen monitor.
Control of Computers: Support the control of 16 computers.
High Video Resolution: The supported resolution is up to 1280 x 1024@60Hz.
Multiple Computer Switching Methods: Front panel LEDs, keyboard hotkeys, and on-screen-display (OSD) menu.

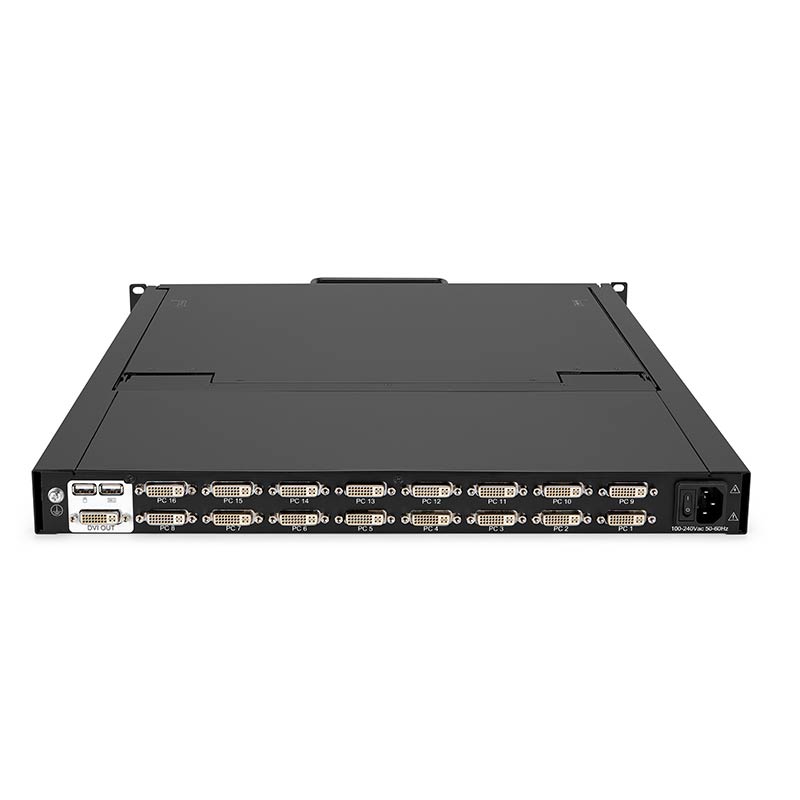

Standard DVI Connection: Connect to a server or computer via standard DVI connectors.
Support Hot Plugging: Add or remove computers without having to power down the switch.
Flexible LCD Display Module: It can be opened up to 108 degrees to provide a comfortable viewing experience for users.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

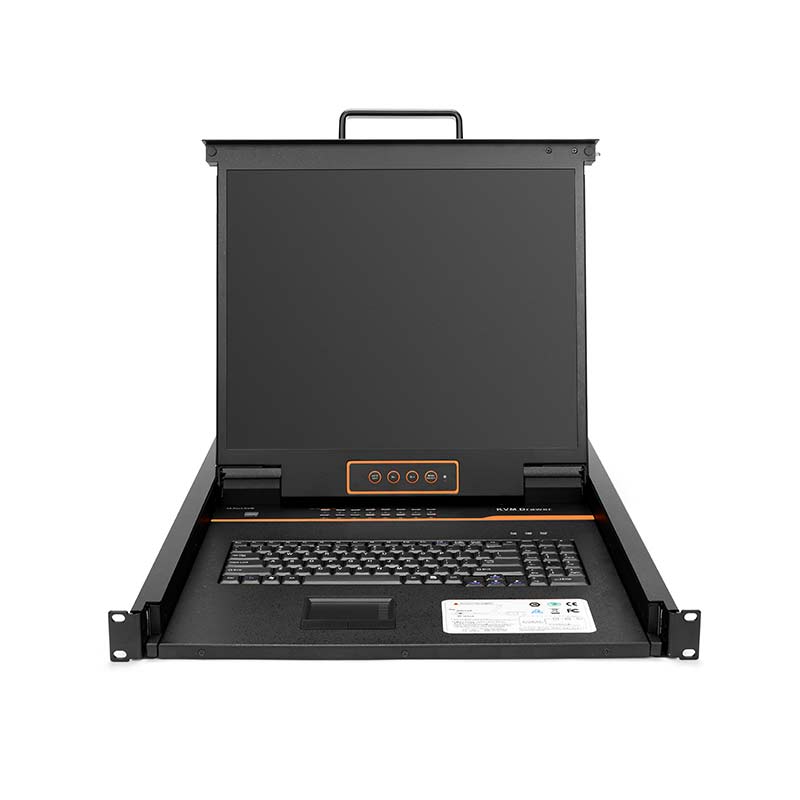

Kinan LD1916 DVI rackmount LCD KVM switch integrates a 19″ monitor, a keyboard and a touchpad in 1U height space. It allows users to control up to 16 computers by switching the signals of the connected computers. The user-friendly switching methods includes keyboard hotkeys, front panel pushbuttons, and on-screen-display(OSD) menu. In addition, the resolution of the built-in screen is up to 1280 x 1024@60Hz.

The outstanding feature of this LCD KVM switch is that this device is easy to install because of its user-friendly design. The users just need to plug the cables into the ports of the target servers properly without any software or compatibility issue. What’s more, you can freely add or remove servers without need to prower off the switch.

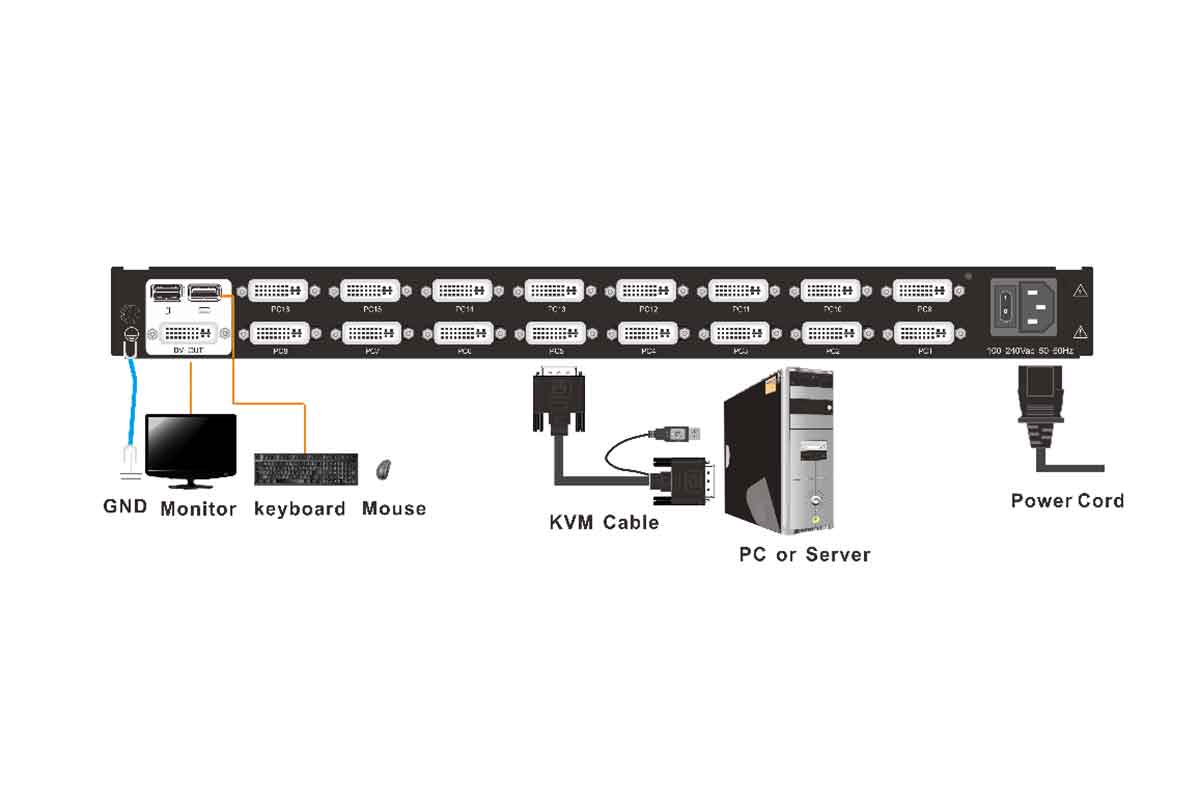

Diagram

Specification

Function		LD1916
Computer connections	Direct	16
Computer connections	Max	16
Port emulation	Keyboard, mouse	USB
LED monitor	LED model	SXGA TFT
	View area	19″
	Optimum resolution	1280×1024@60Hz
	Display color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	1000 : 1 （ T y p ）
	Pixel pitch(mm)	0.2928(H) × 0.2928(W)
Mouse	X/Y resolution	>1000 points /inch,( 40 points/mm )
Mouse	Roll wheel	Supports scroll wheel function
Keyboard		99 keys
Keyboard		(82 keys main keyboard +17 independent small numeric keyboard)
Port selection		Front panel pushbuttons, hotkeys ,OSD menu
Input power		100V- 240Vac , 50-60Hz , <1.5A
Power consumption		25W
Mounting distance		716~825mm ( L=262mm)
Mounting distance		Mounting rails can be customized for other mounting distance.
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non condensing
Net weight		13.6kg
Product dimension (W × D × H)		448mm×605mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
Optional power input		-36V— -72V DC
