19″ 16 Port Cat5 LCD IP KVM Switch 1-Local / 1-Remote Access

Model No.: HT1916

Hardware Structure: A remote access KVM switch with a 19″ LCD monitor.
High Video Resolution: The local console supports up to 1280 x 1024@60Hz, and the remote console resolution supports up to 1920 x 1080@60Hz.
Easy and Simple Installation: this IP KVM switch is easy to install by connecting right cables to ports directly and properly.
Real-time Remote Control: Allow 1 local user and 1 remote user to control the computers, port share mode allows local and remote users to gain access to a server simultaneously
Support Diverse Servers: Support servers with VGA/DVI/HDMI/DP ports.
Transmitting Distance: It is up to 100m when this IP switch is connected to computers via RJ-45 connectors and Cat5e/6/7 cables.
Power Supply Redundancy: Avoid interruption.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

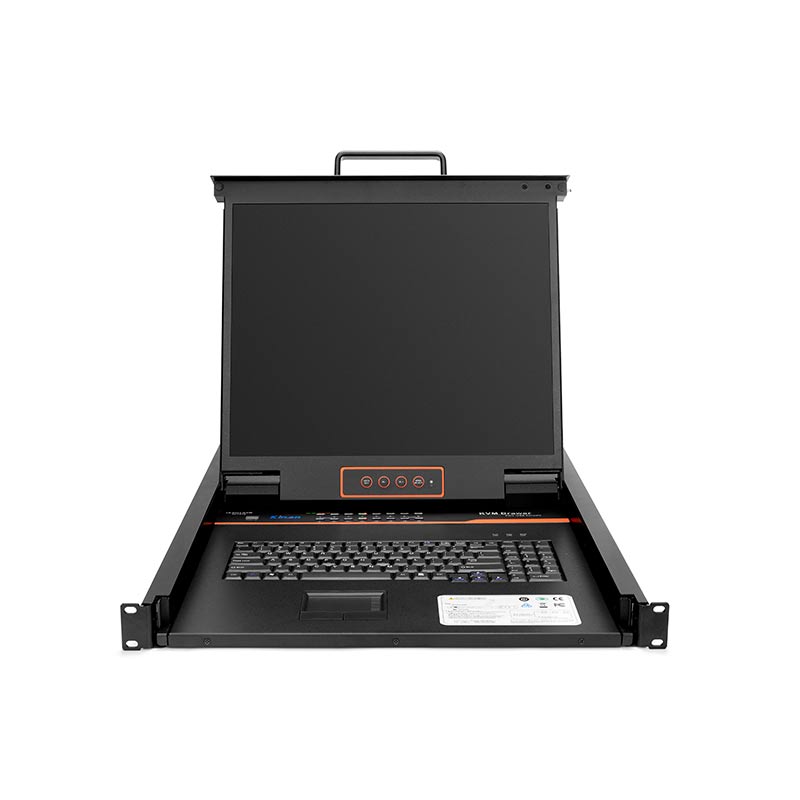

With an integrated 19″ LCD monitor, keyboard, and touchpad in a 1U rack-mountable housing, the Kinan HT1916 IP KVM switch with 16 ports is a control unit that allows secure access to 16 computers from a single KVM console. Its IP-based connectivity allows 1 local and 1 remote operators to monitor and access the computers concurrently. With TCP/IP communications protocol, you can access the connected servers from any computer on the LAN, WAN, or the Internet.

It’s easy for users to install this remote Cat5 LCD IP KVM switch. First plug the cables into the ports of the servers or computers properly without need for software, complicated installation procedures, and compatibility issues. And connecting computers with the RJ-45 connectors and Cat5e/6 cables makes the transmitting distance up to 100m.

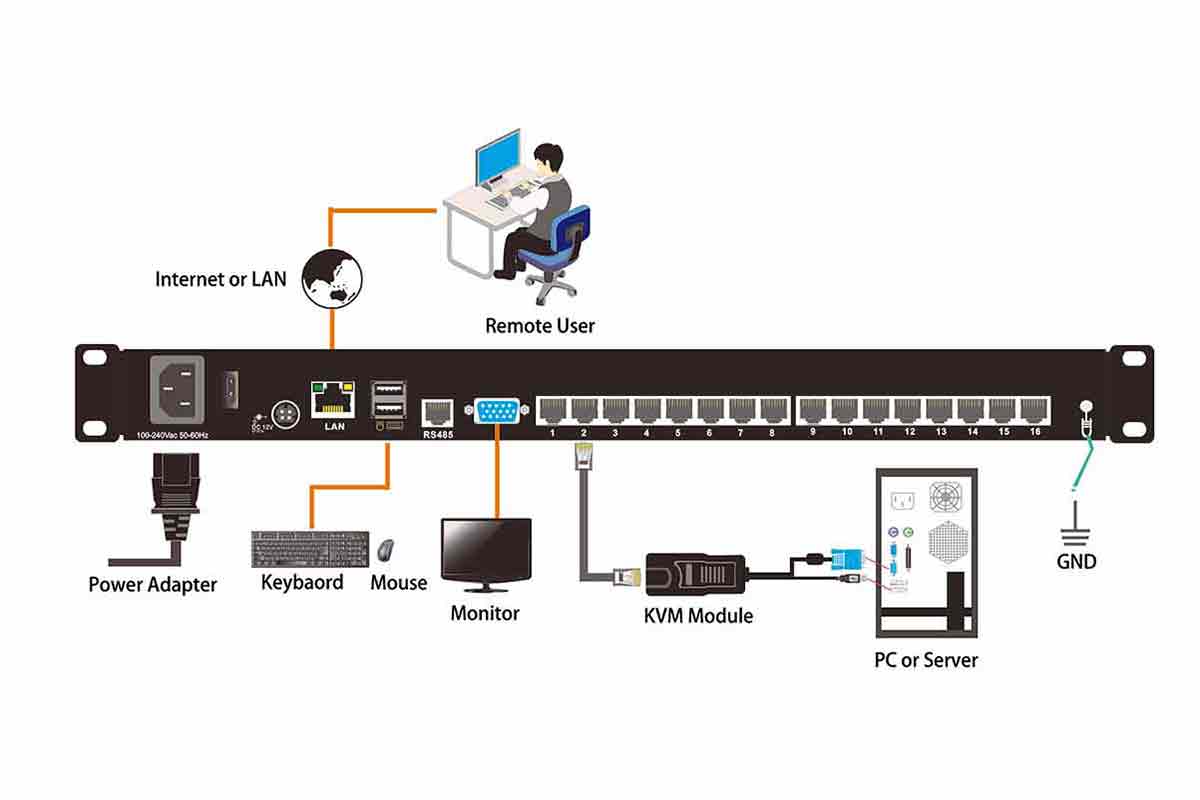

Diagram

Specification

Model		HT1916
Computer	Diret	16
Connections	Max	16
Port Selection	Keyboard, Mouse	Button, UI, Web, Hotkey
LED Monitor	Model	SXGA TFT
	View Area	19″
	Optimum Resolution	1280 x 1024@60Hz
	Color	16.7M
	Brightness	250 cd/m²
	Contrast Ratio	1000:01:00
	Pixel Pitch(mm)	0.2928(H) × 0.2928(W)
Mouse	X/Y Resolution	>1000 points / inch, (40 points/mm)
	Scroll Wheel	Supports Scroll Wheel function
Keyboard		99 keys (82 keyboard + 17 number pad)
Remote	Remote Control	KVM Control (ActiveX)
	Management	Web
	Security	DES Encrypted
	Resolution	1920×1080@60Hz
Power Input		100V- 240Vac, 50-60Hz, <1.5A
Power Consumption		25W
Operating Temperature		0 — 50 ℃
Store Temperature		-20 —60 ℃
Humidity		0~80% RH, non-condensing
Net Weight		13.4kg
Product Dimension(W x D x H)		448mm × 605mm × 42.5mm
Package Dimension(W x D x H)		765mm × 615mm × 185mm
