19″ 32 Port Cat5 LCD KVM over IP Switch 1-Local / 1-Remote Access

Model No.: HT1932

Hardware Structure: A remote KVM switch with a 19″ LCD monitor.
High Video Resolution: The local console resolution is up to 1280 x 1024 @60Hz, and the remote console resolution is up to 1920 x 1080@60Hz
Power Supply Redundancy: The KVM over IP switch can run normally without interruption.
Real-time Remote Access: Support 1 local user and 1 remote user, port share mode allows local and remote users to gain access to a server simultaneously
Support Hot Plugging: Servers can be added or removed freely and directly.
User-friendly Installation: It is easy to install by connecting cables properly.
Support Diverse Servers: Support servers with VGA/DVI/HDMI/DP ports.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

The Kinan HT1932 1-local/1-remot Cat5 LCD IP KVM switch is designed with a 19″ LCD monitor, keyboard, and touchpad in a 1U height mountable housing. With 32 ports, it allows 1 local and 1 remote users to control up to 32 computers freely and easily without time and distance limits.

What’s more, this remote KVM switch’s IP-based connectivity allows local and remote users to access and monitor the computers independently and simultaneously. With TCP/IP communications protocol, the users also can access to the connected servers from any computer on the LAN, WAN, or the Internet. The Video quality and video tolerance can be adjusted to optimize the data transfer speed up to 30 FPS. The video resolution is up to 1280 x 1024 @60Hz for local console and remote console resolution is up to 1920×1080@60Hz.
Importantly, it’s easy to set up the remote kvm, just plug the cables properly without need for software, complicated installation precedures, and compatibility issues.

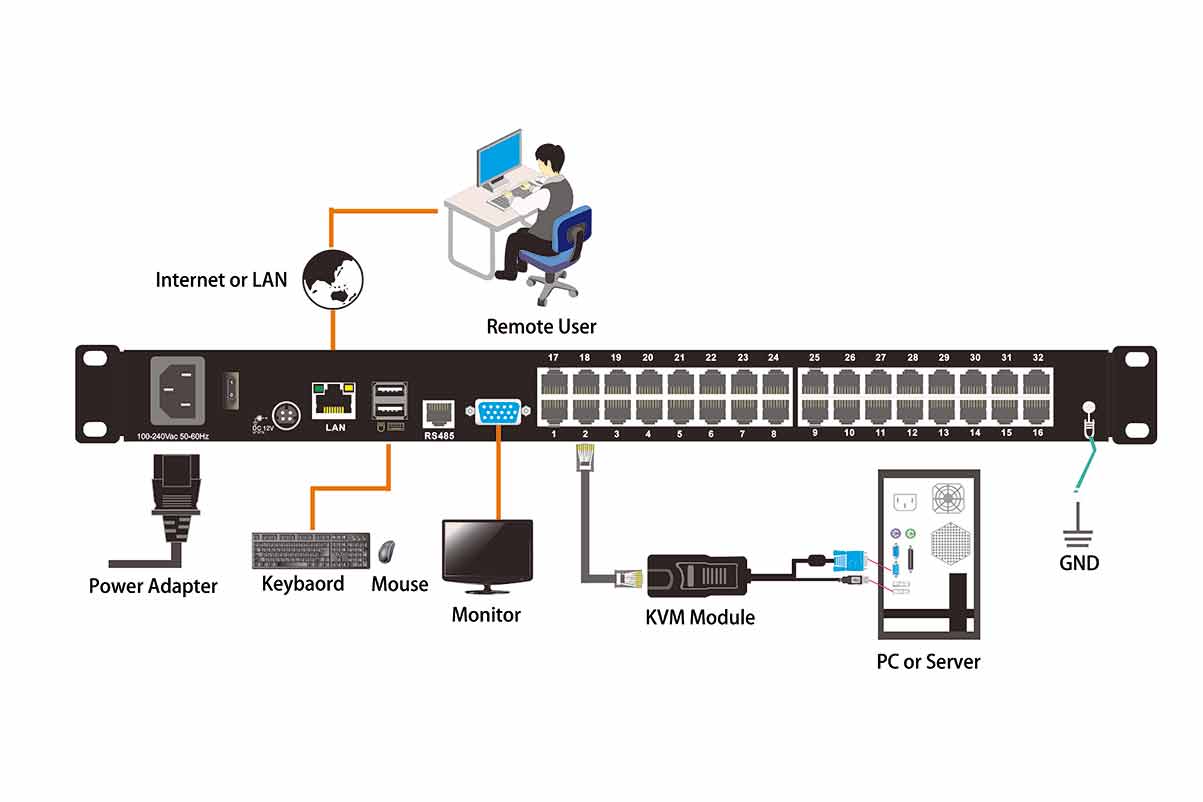

Diagram

Specification

Model		HT1932
Computer	Direct	32
Connection	Max	32
Port Selection	Keyboard,Mouse	Button,UI,Web,Hotkey
LED monitor	Model	SXGA TFT
	View Area	19″
	Optimum Resolution	1280 x 1024@60Hz
	Color	16.7M
	Brightness	250cd/m²
	Contrast Ratio	1000:01:00
	Pixel Pitch(mm)	0.2928(H) x 0.2928 (W)
Mouse	X/Y Resolution	>1000 points/inch, (40 points/mm)
	Scroll Wheel	Supports Scroll Wheel Function
Keyboard		99 keys (82 keyboard + 17 number pad)
Remote	Remote Control	KVM Control (ActiveX)
	Management	Web
	Security	DES Encrypted
	Resolution	1920 x 1080@60Hz
Power Input		100V-240Vac, 50-60Hz, <1.5A
Power Consumption		29W
Operating Temperature		0-50℃
Store Temperature		-20 —60 ℃
Humidity		0~80% RH, non-condensing
Net Weight		13.6kg
Product Dimension (W x D x H)		448mm × 605mm × 42.5mm
Package Dimension (W x D x H)		765mm × 615mm × 185mm
