19″ 24-Port Cat5 LCD KVM over IP Switch 1-Local / 1-Remote Access

Model No: HT1924

Hardware Structure: A KVM over IP switch consists of a 19″ LCD monitor, a built-in keyboard, and a touchpad.
Superior Video Resolution: Up to 1280 x 1024 @60Hz for local console, up to 1920 x 1080@60Hz for remote console.
Power Supply Redundancy: Provide guarantee for normal operation.
Real-time Remote Access: Support 1 local user and 1 remote user, port share mode allows local and remote users to gain access to a server simultaneously
Support Hot Plugging: Add and remove servers freely for continuous control.
User-friendly Installation: It is easy to install by connecting cables properly.
Support Diverse Servers: Support servers with VGA/DVI/HDMI/DP ports.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

Kinan HT1924 Cat5 KVM over IP switch is designed with a user-friendly 19″ LCD monitor and 24 Cat5 ports, allowing 1 local and 1 remote users to control up to 24 computers or servers simultaneously and independently, which can eliminate the need for equipping each computer with a keyboard and mouse. Using a standard Internet browser can gain BIOS level access for maintenance, support or failure recovery over the Internet.

The superior resolution of the local console is up to 1280 x 1024@60Hz, and that of the remote console is up to 1920 x 1080@60Hz. The EDID Emulation can achieve video resolution optimization, which is useful for video synchronization. And the data transfer speed is up to 30 FPS.

It is easy for users to install this IP KVM switch in the cabinet by connecting the cables to ports properly. No complicated procedure is required. Users can easily use it by sliding the keyboard out and opening the LCD monitor. Also, it can be stored in a 1U rack space when users don’t use.

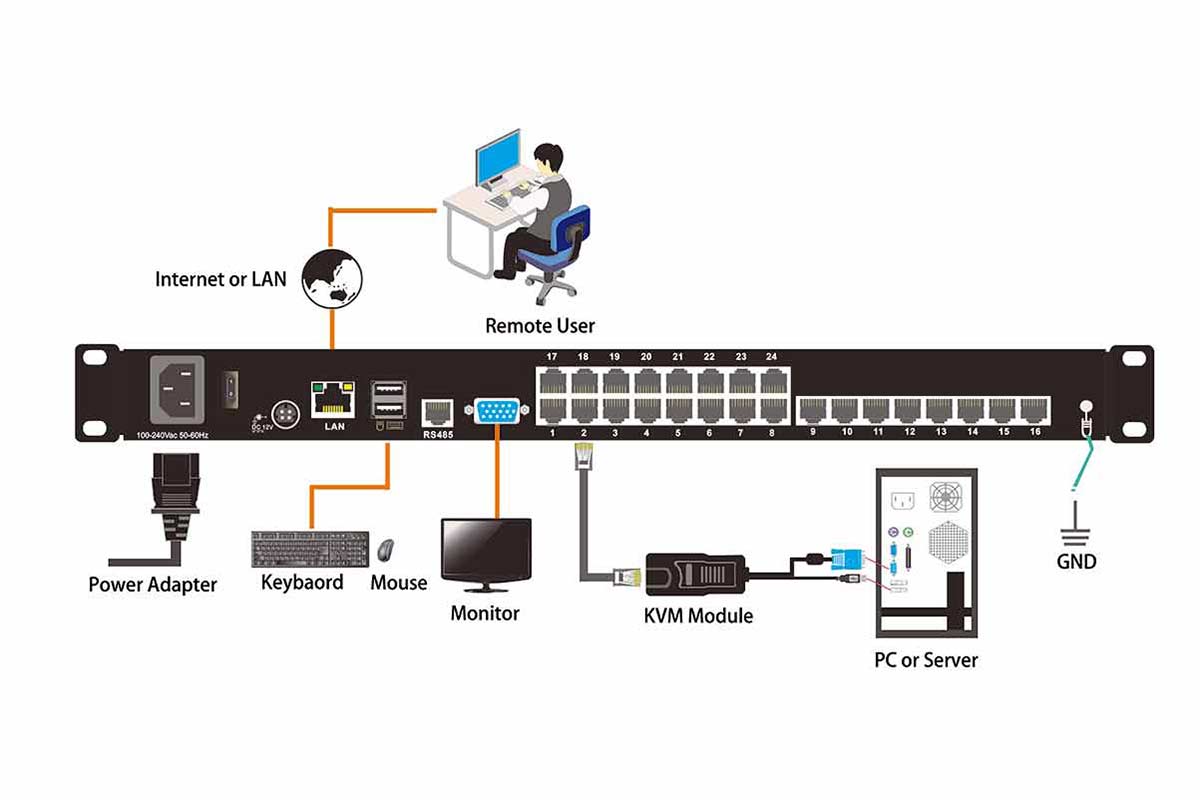

Diagram

Specification

Model		HT1924
Computer Connection	Direct	24
	Max	24
Port Selection	Keyboard,Mouse	Button,UI,Web,Hotkey
LED monitor	Model	SXGA TFT
	View Area	19″
	Optimum Resolution	1280 x 1024@60Hz
	Color	16.7M
	Brightness	250cd/m²
	Contrast Ratio	10000：1
	Pixel Pitch(mm)	0.2928(H) x 0.2928 (W)
Mouse	X/Y Resolution	>1000 points/inch, (40 points/mm)
	Scroll Wheel	Supports Scroll Wheel Function
Keyboard		99 keys (82 keyboard + 17 number pad)
Remote	Remote Control	KVM Control (ActiveX)
	Management	Web
	Security	DES Encrypted
	Resolution	1920 x 1080@60Hz
Power Input		100V-240Vac, 50-60Hz, <1.5A
Power Consumption		27W
Operating Temperature		0-50℃
Store Temperature		-20 —60 ℃
Humidity		0~80% RH, non-condensing
Net Weight		13.6kg
Product Dimension (W x D x H)		448mm × 605mm × 42.5mm
Package Dimension (W x D x H)		765mm × 615mm × 185mm
