19″ 16 Port CAT5 LCD KVM over IP Switch 1-Local / 2-Remote Access

Model No.: HT5916

Hardware Structure: Integrated KVM Console with 19″ LCD monitor.
Control of Computers: Control up to 16 servers simultaneously.
High Video Resolution: The resolution is up to 1920×1080@60Hz for remote console, local console resolution is up to 1280 x 1024@60Hz.
Power Supply Redundancy: Make sure the operation of the KVM over IP switch.
Remote Access: Support 1 local user and 2 remote users.
Support Diverse Servers: Support servers with VGA/DVI/HDMI/DP port.
Viewing Experience: Open the LCD KVM module up to 108 degrees to have a view easily.
Support Hot Plugging: Free to add or remove servers without need for powering off the switch.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

Featuring an integrated LCD monitor, keyboard, and touchpad in a 1U rack-mountable housing, the HT5916 LCD KVM over IP Switch is a control unit that allows secure access to 16 computers from a single KVM console. It features IP-based connectivity that allows local and remote operators to monitor and access the computers. With TCP/IP communications protocol, it can be accessed from any computer on the LAN, WAN or Internet.

It’s easy to install this Kinan KVM switch over IP, just plug the cable properly without software, complicated installation procedures, and compatibility issues. And then connect computers with compact RJ-45 connectors and Cat 5e/6 cable. The transmitting distance is up to 100m.

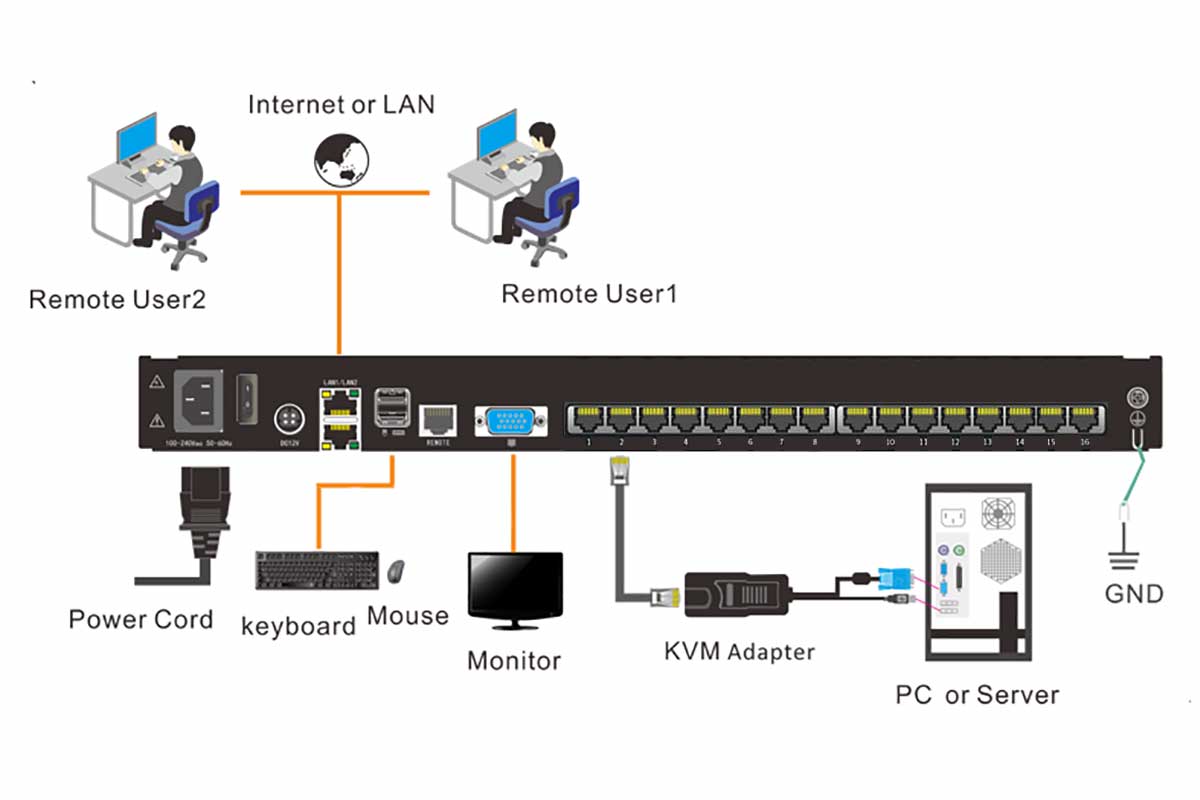

Diagram

Specification

Model		HT5916
Computer Connections	Direct	16
	Max	16
Port Selection	Keyboard, Mouse	Button, UI, Web, Hotkey
LCD Monitor	Model	SXGA TFT
	View Area	19″
	Optimum Resolution	1280×1024@60Hz
	Color	16.7 M
	Brightness	250 cd/m²
	Contrast Ratio	1000:01:00
	Pixel Pitch(mm)	0.2928(H) × 0.2928(W)
Mouse	X/Y Resolution	>1000 points / inch, (40 points/mm)
	Scroll Wheel	Supports Scroll Wheel function
Keyboard		99 keys (82 keyboard + 17 number pad)
Remote	Remote Control	KVM Control (ActiveX)
	Management	Web
	Security	DES Encrypted
	Resolution	1920×1080@60Hz
Power Input		100V- 240Vac, 50-60Hz, <1.5A
Power Consumption		29W
Operating Temperature		0 — 50 ℃
Store Temperature		-20 —60 ℃
Humidity		0~80% RH, non-condensing
Net Weight		13.4kg
Product Dimension (W × D × H)		448mm × 605mm × 42.5mm
Package Dimension (W × D × H)		765mm × 615mm × 185mm
