18.5″ 8-Port DVI LCD KVM Switch

Model No.: LD1808

Hardware: Integrated KVM Console with a 18.5″ widescreen LCD monitor in 1U height space.
Control of Computers: Control up to 8 computers from a single console.
High Video Resolution: Up to 1920 x 1080 @60Hz.
Optional Switching Methods: Users can control multiple computers via several methods including front panel LEDs, keyboard hotkeys and on-screen-dispaly(OSD) menu.
Standard DVI connection: Connect to a server or computer via standard DVI connectors.
High Flexibility: The LCD monitor can be opened up to 108 degrees, which is a good viewing angle for users.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

Kinan LD1808 is an 8-port DVI LCD KVM switch designed with a widescreen monitor, a built-in keyboard, and a touchpad in a space-saving 1U height unit, which allows users to use each component independently. The KVM monitor can be closed and the whole switch can be pushed into the cabinet when users don’t need to use.

LCD1808 KVM switch with 8 ports allows users to control and manage up to 8 computers or servers easily. They can switch freely to target computers or servers from a single console (keybaord, mouse and monitor). And the flexible 18″ screen is convenient for users to monitor data directly in data centers. The maxium resolution it supports is 1920 x 1080@60Hz. What’s more, optional switching methods including front panel LEDs, keyboard hotkeys, and on-screen-display(OSD) menu are supported.

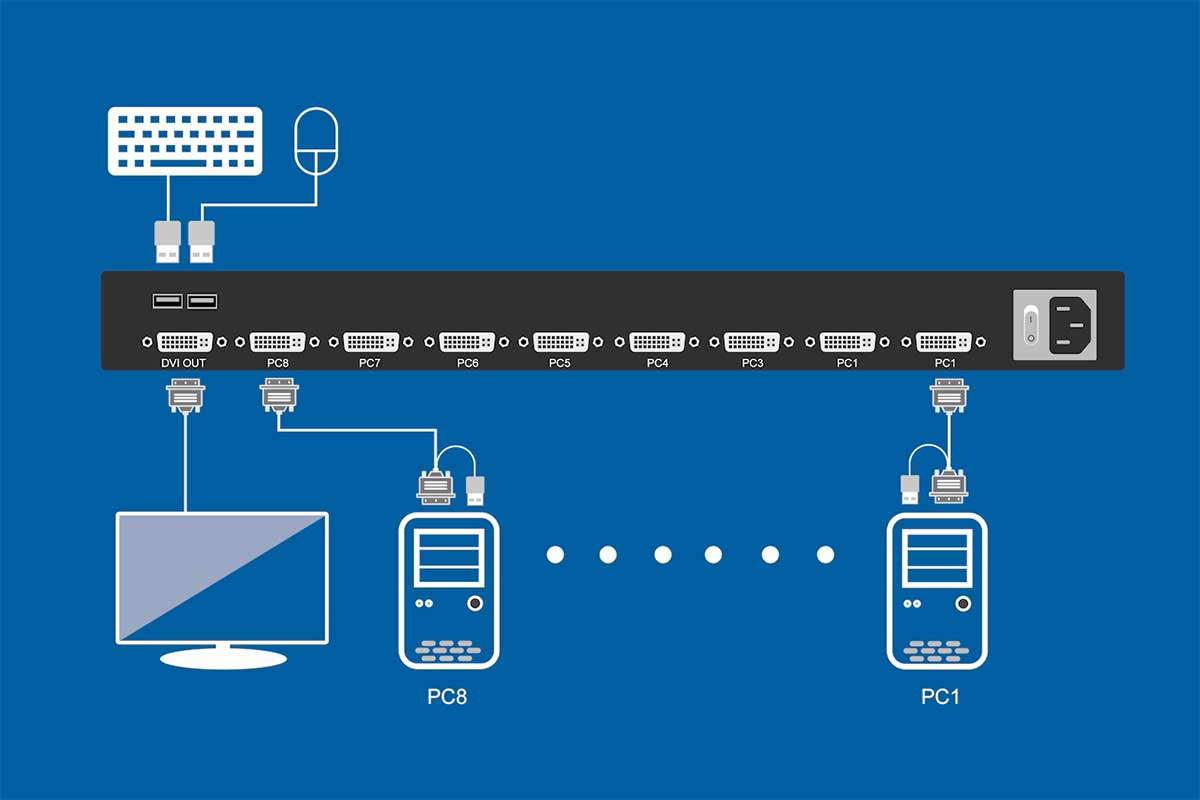

Diagram

Specification

Function		LD1808
Computer connections	Direct	8
Computer connections	Max	8
Port emulation	Keyboard, mouse	USB
LED monitor	LED model	FHD TFT
	View area	18.47″
	Optimum resolution	1920×1080@60Hz
	Display color	16.7 M
	Brightness	250cd/m²( T y p )
	Contrast ratio	1000: 1( T y p )
	Pixel pitch(mm)	0.213(H) × 0.213(W)
Mouse	X/Y resolution	>1000 points /inch, (40 points/mm)
Mouse	Roll wheel	Supports scroll wheel function
Keyboard		99 keys
Keyboard		(82 keys main keyboard +17 independent small numeric keyboard)
Port selection		pushbuttons, hotkeys, OSD menu
Input power		100V- 240Vac, 50-60Hz, <1.5A
Power consumption		28W
Mounting distance		686-770mm ( L=262mm)
		Mounting bracket can be customized for other
		mounting distance
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non-condensing
Net weight		11.8kg
Product dimension (W × D × H)		448mm×560mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
