18.5″ 8-Port Cat5 LCD KVM over IP Switch 1-Local/1-Remote Access

Model No.: HT1808

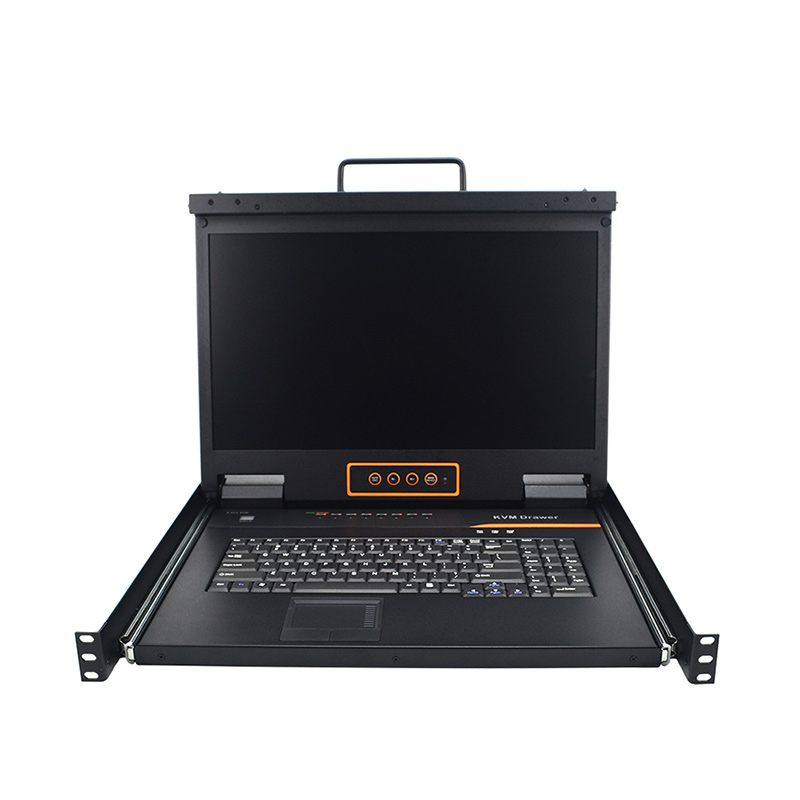

Hardware: Equipped with an 18.5” LCD monitor with high definition and high resolution, a built-in keyboard and a touch pad, occupying only 1U rack space.
Number of Computers: Up to 8 computers can be controlled from a single console.
Remote Access: 1 local user and 1 remote user can be supported, and the port share mode allows the users to gain access to a server simultaneously.
High Video Resolution: The max resolution of the local console is 1366 x 768@60Hz, and that of the remote console is 1920 x 1080@60Hz.
EDID Function: Achieve video synchronization.
Power Supply Redundancy: Make sure the switch is operating normally.
Hot Pluggable: Add or remove servers without the need to power down the switch.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

HT1808 is a KVM over IP switch that can control 8 computers or servers over a network (LAN/WAN) from a single console (keyboard, video, and mouse). Both the local user and the remote user can control servers conveniently. Equipped with an LCD monitor, this switch allows operators to monitor something directly. Because of that, the operators don’t need to go in and out of data centers frequently. Its friendly design occupies only 1U rack space, which can optimize space utilization.

Connect the cables to the right ports to finish the installation, which is convenient for users. The computers are connected with compact RJ-45 connectors and Cat5e/6/7 cables. And the transmission distance is up to 100m.

HT1808 can be used in data centers, remote control rooms, and some scenarios that need remote access to achieve remote and centralized management of multiple computers.

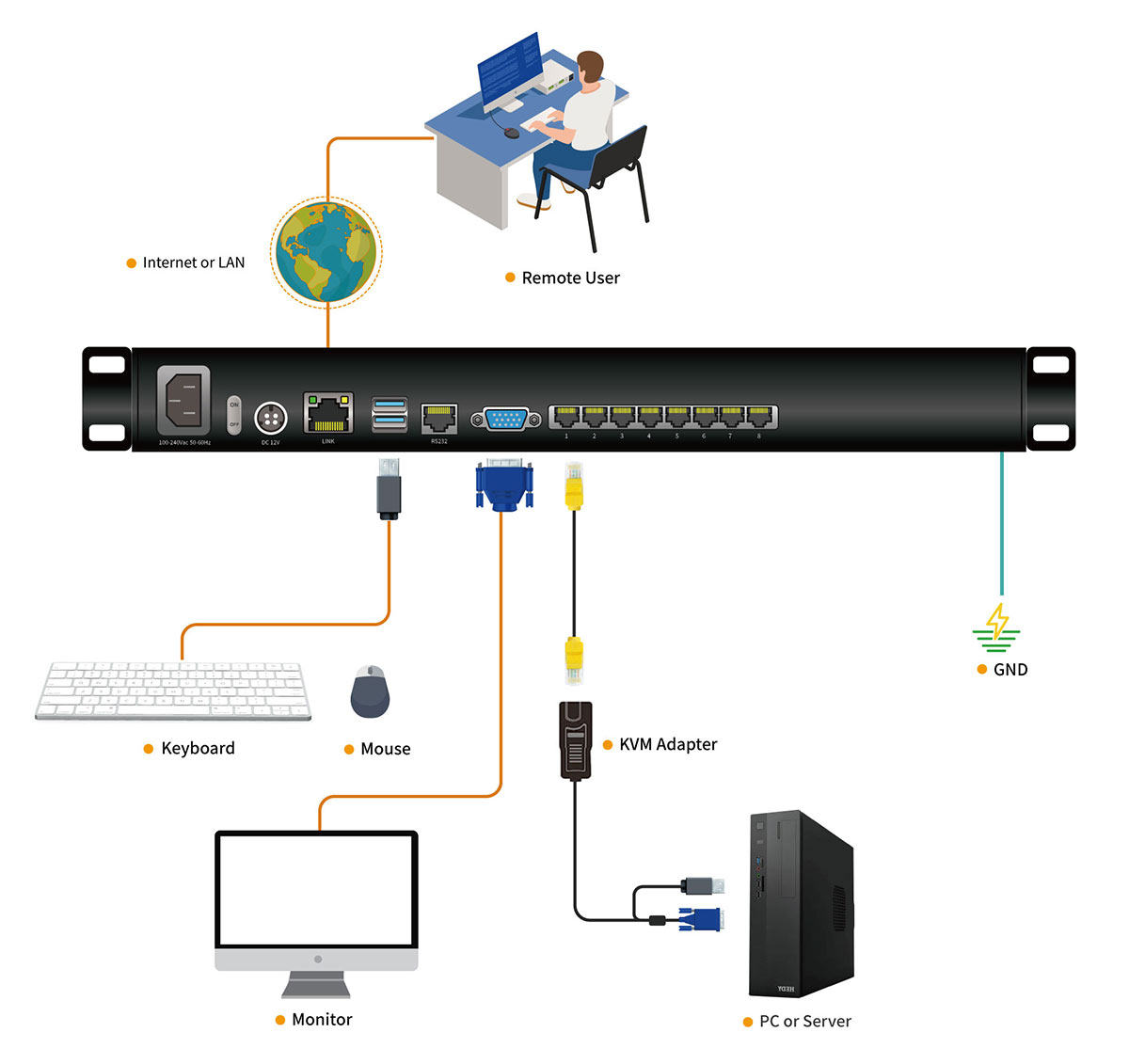

Diagram

Specification

Model		HT1808	HT1816	HT1824	HT1832
Computer Connections	Direct	8	16	24	32
	Max	8	16	24	32
Port Selection	Keyboard, Mouse	Button, UI, Web, Hotkey
LED Monitor	Model	WXGA TFT
	View Area	18.51”
	Optimum Resolution	1366×768@60Hz
	Color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast Ratio	1000 : 1 （ T y p ）
	Pixel Pitch(mm)	0.300(H) × 0.300(W)
Mouse	X/Y Resolution	>1000 points / inch, (40 points/mm)
	Scroll Wheel	Supports Scroll Wheel function
Keyboard		99 keys (82 keyboard + 17 number pad)
Remote	Remote Control	KVM Control (A9ctiveX)
	Management	Web
	Security	DES Encrypted
	Resolution	1920×1080@60Hz
Power Input		100V- 240Vac , 50-60Hz , <1.5A
Mounting distance		686-770mm ( L=262mm)
		Mounting bracket can be customized for othermounting distance
Power Consumption		25W	27W	29W	31W
Operating Temperature		0 — 50 ℃
Store Temperature		-20 —60 ℃
Humidity		0—80% RH, non-condensing
Net Weight		11.7 kg	11.7kg	11.9kg	11.9kg
Product Dimension (W × D × H)		448mm×560mm×42.5mm
Package Dimension (W × D × H)		765mm×615mm×185mm
