18.5인치 단일 레일 Cat5 LCD KVM 스위치(8포트)

모델 번호: KLC-1808

  • LED KVM 스위치로 8대의 컴퓨터 제어 가능
  • 19인치 1U 랙마운팅 가능
  • 최대 해상도 1366 x 768
  • Windows, Linux, Mac, Sun등 멀티플랫폼 지원
  • 전면 선택 버튼, 핫키, OSD를 이용한 포트 선택

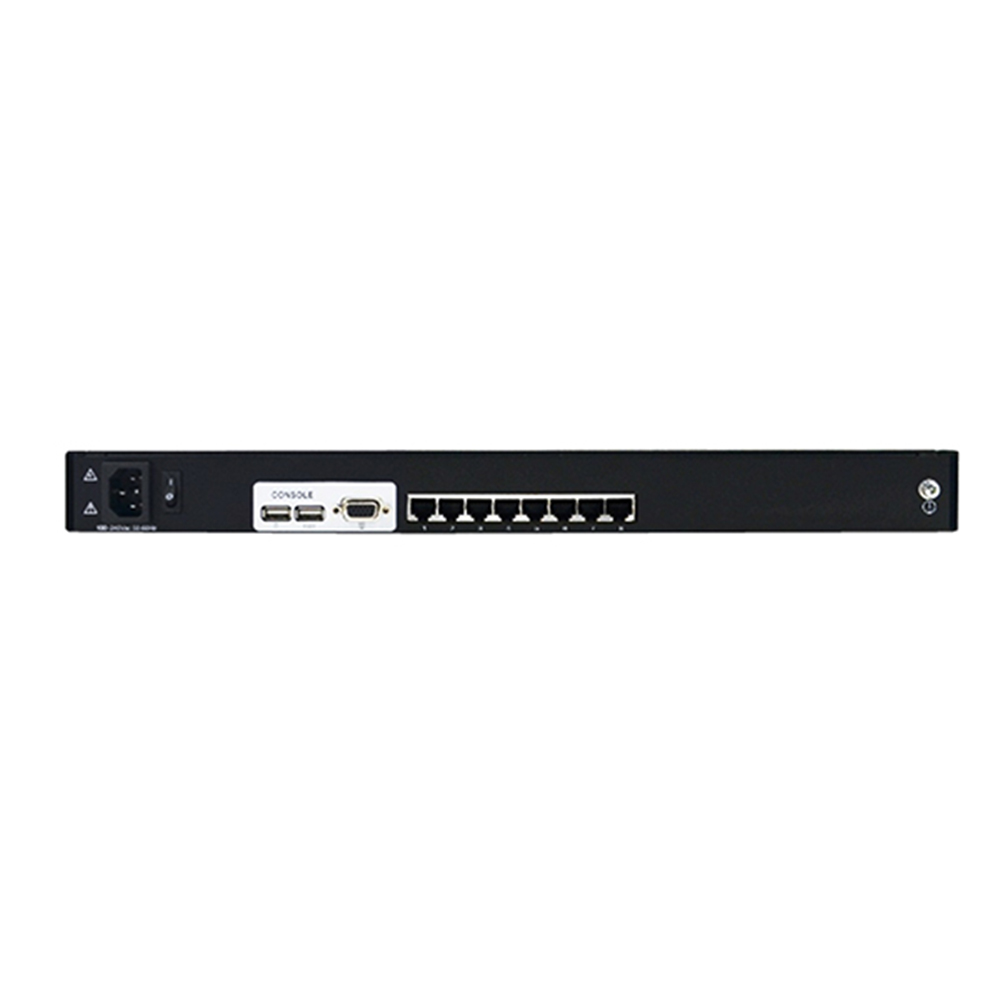

  • USB 키보드 / 마우스, VGA 콘솔 포트 제공
FCC
UKCA
RoHS
CE
특징
세부 사항
사양
종범
다운로드
관련 상품

개요

Kinan LC1808 is an outstanding device used to control up to 8 computers for centralized management with its 8 Cat5 ports. Its 1U space-saving design allows users to manage many computers easily from a single console (keyboard, video, and monitor). The 18.5-inch LCD screen and 1366×768@60Hz resolution make it convenient for users to enjoy an immersive viewing experience.

The LC1808 is easy to install and use. Users only need to install it by connecting the cables to the right ports, then use it easily after powering on the switch. The user-friendly design allows users to switch servers quickly by using hotkeys, front panel LEDs, and a visual menu.

This 8-port LCD KVM switch is widely used in the data center, which can optimize the layout and maximize space utilization. The servers can be placed in order, and the cabling system can be simpler. The operators can check the malfunctioning devices quickly and conveniently when they enter the data center.

Hardware Features

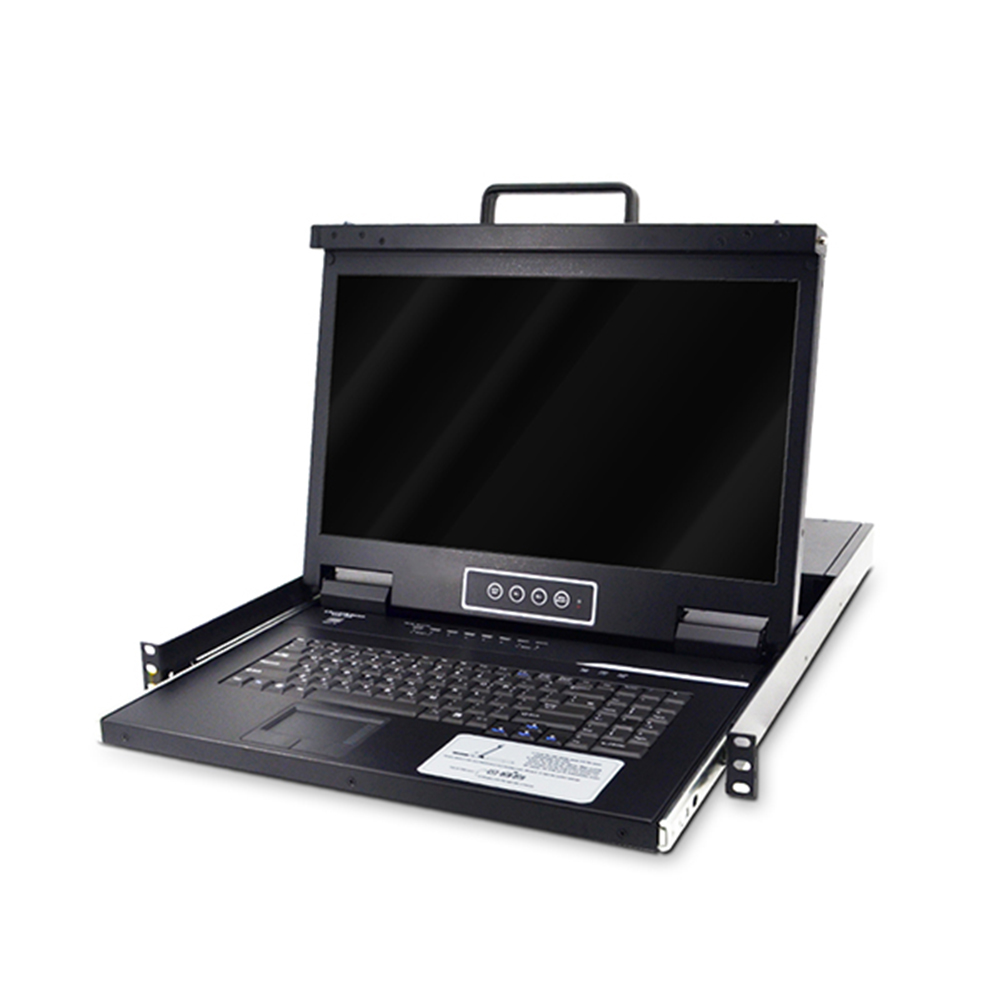

  • The 18.5-inch LCD monitor is flexible and can be opened up to 108 degrees.
  • The advanced keyboard (full size 99 keys) supports multiple languages including English, Russian, German, French, UK and Spanish, etc.
  • The touchpad is designed with 2 buttons and a scroll wheel, allowing users to control computers without latency.

Hardware Features

  • The 18.5-inch LCD monitor is flexible and can be opened up to 108 degrees.
  • The advanced keyboard (full size 99 keys) supports multiple languages including English, Russian, German, French, UK and Spanish, etc.
  • The touchpad is designed with 2 buttons and a scroll wheel, allowing users to control computers without latency.

Comfortable Experience

  • The 1366×768@60Hz resolution allows users to enjoy a smooth viewing experience..
  • Users can adjust the angle of the LCD module freely.
  • Operators don’t need to go in and out of the data center frequently because the LCD screen allows them to monitor something directly.
  • The convenient KVM switch is compatible with multiple platforms such as Windows, Sun, Unix, and Linux.

Comfortable Experience

  • The 1366×768@60Hz resolution allows users to enjoy a smooth viewing experience..
  • Users can adjust the angle of the LCD module freely.
  • Operators don’t need to go in and out of the data center frequently because the LCD screen allows them to monitor something directly.
  • The convenient KVM switch is compatible with multiple platforms such as Windows, Sun, Unix, and Linux.

Centralized Management

  • 8 computers can be controlled effortlessly through the LC1808 LCD KVM switch with 8 Cat5 ports.
  • The UI interface can provide users with an Intuitive visual experience.
  • Redundant USB peripheral devices are eliminated and then the workflow can be simplified.
  • The two-level password guarantees the security of the switch – only authorized users view and control computers (up to 4 users and 1 administrator).

Centralized Management

  • 8 computers can be controlled effortlessly through the LC1808 LCD KVM switch with 8 Cat5 ports.
  • The UI interface can provide users with an Intuitive visual experience.
  • Redundant USB peripheral devices are eliminated and then the workflow can be simplified.
  • The two-level password guarantees the security of the switch – only authorized users view and control computers (up to 4 users and 1 administrator).

세부 사항

사양

Model LC1808
Computer connections Direct 8
Max 256
Port emulation Keyboard, mouse PS/2, USB
LCD monitor LCD model WXGA TFT
View area 18.51”
Optimum resolution 1366×768@60Hz
Display color 16.7 M
Brightness 250cd/m²（ T y p ）
Contrast ratio 1000 : 1 （ T y p ）
Pixel pitch(mm) 0.300(H) × 0.300(W)
Mouse X/Y resolution >1000 points / inch,（ 40 points/mm ）
Roll wheel Supports scroll wheel function
Keyboard 99 keys (82 keys main keyboard +17 independent small number pad)
Port selection Front panel pushbuttons, hotkeys, OSD menu
Input power 100V- 240Vac , 50-60Hz , <1.5A
Power consumption 18W
Mounting distance 686-770mm ( L=262mm)
Mounting bracket can be customized for other mounting distance
Operating temperature 0 — 50 ℃
Store temperature -20 — 60 ℃
Humidity 0~80% RH, non-condensing
Net weight 11.8kg
Product dimension (W × D × H) 448mm×560mm×42.5mm
Package dimension (W × D × H) 765mm×615mm×185mm
Optional power input -36V~ -72V DC

패키지 내용물

  • 1x 8포트 LCD KVM 스위치 (KLC-1808)
  • 1x 전원 코드 (지역별)
  • 1x 빠른 시작 가이드
  • 2x 장착 레일
  • 1x Cat5 차폐 네트워크 케이블
  • 1x 접지선
