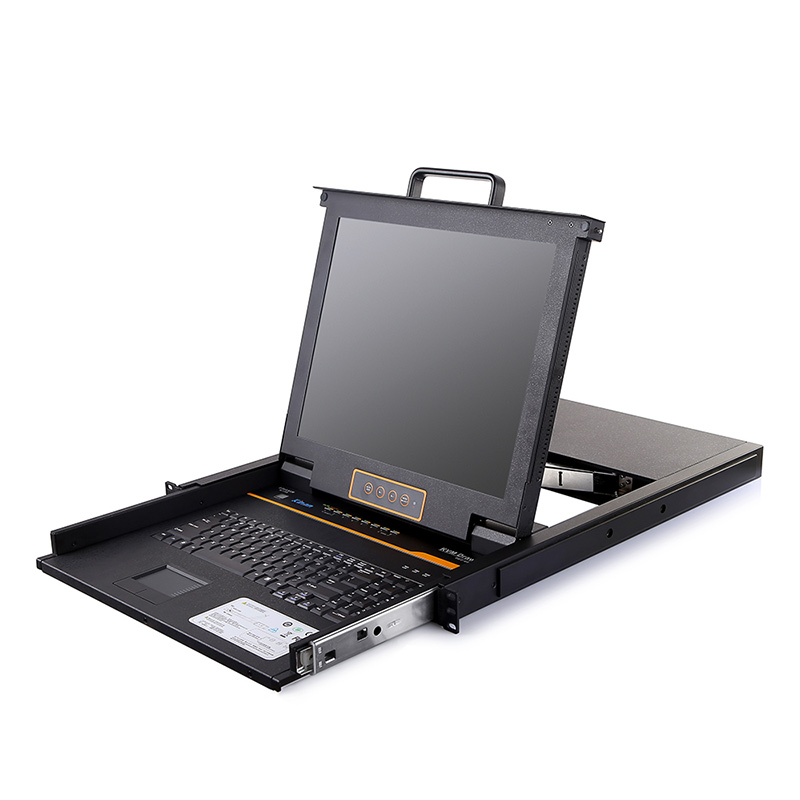

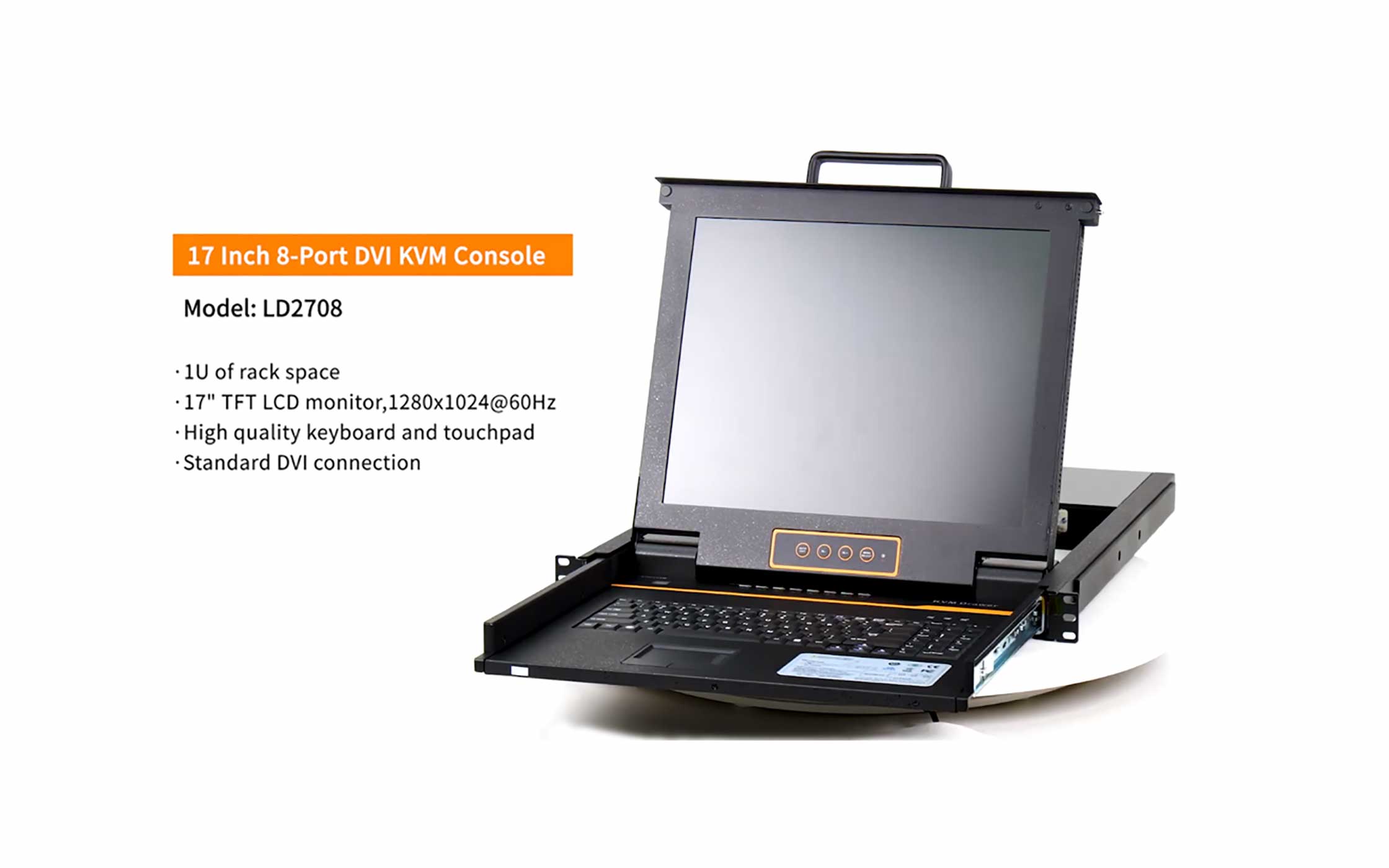

17″ Rackmount 8-Port DVI KVM Switch

Model No.: LD2708

Simple Hardware: Integrated KVM Console with a 17″ LCD monitor in 1U height space.
Unified Control of Computers: A single console controls up to 8 computers.
High Video Resolution: The Resolution is up to 1280 x 1024 @60Hz.
Optional Switching Ways: Switch computers via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD) menu.
Standard DVI connection: Connect to a server or computer via standard DVI connectors.
Space-saving Design: This DVI KVM switch can be set in a cabinet and occupy only 1U height space.
User-friendly LCD Module: It can be opened up to 108 degrees to provide a perfect viewing experience.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

The Kinan’s LD2708 DVI LCD KVM console features an integrated 17″ LCD monitor, keyboard and touchpad in a single console that occupies only 1U of rack space. It allows access and control up to 8 computers from a single console (keyboard, mouse and monitor).

The LD2708 rackmount lcd keyboard has a built-in LCD monitor that supports resolution up to 1280×1024@60Hz. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD).

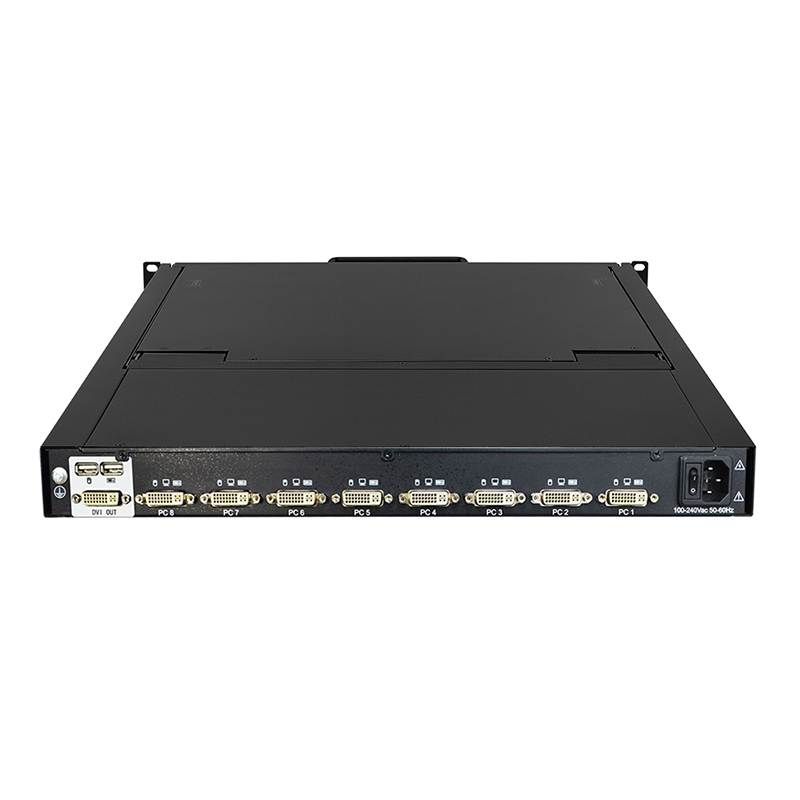

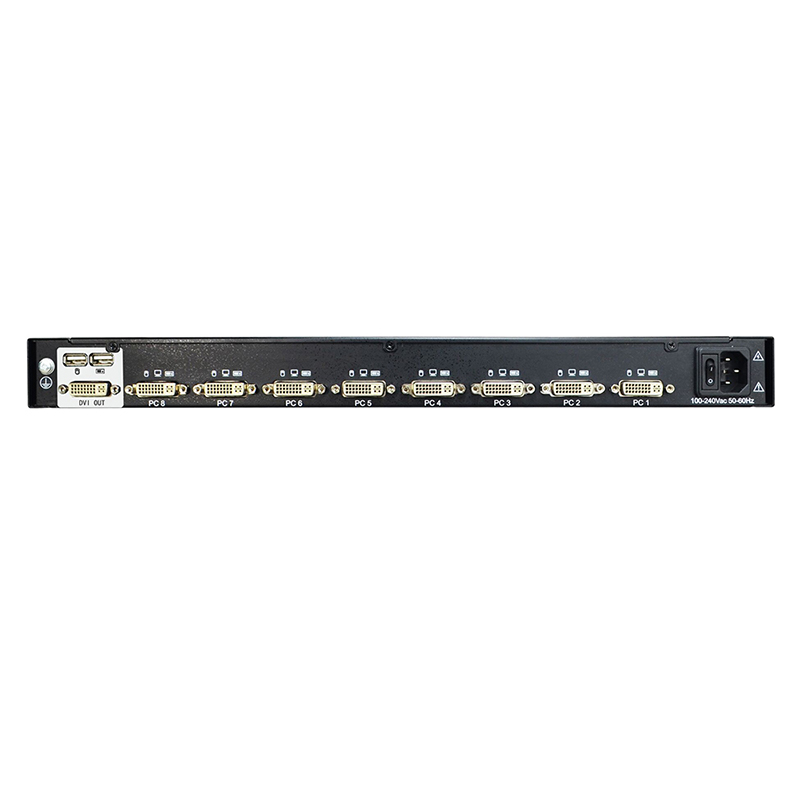

The KVM switch supports both USB connection for the computers. An extra DVI port allows an additional DVI monitor to be connected.

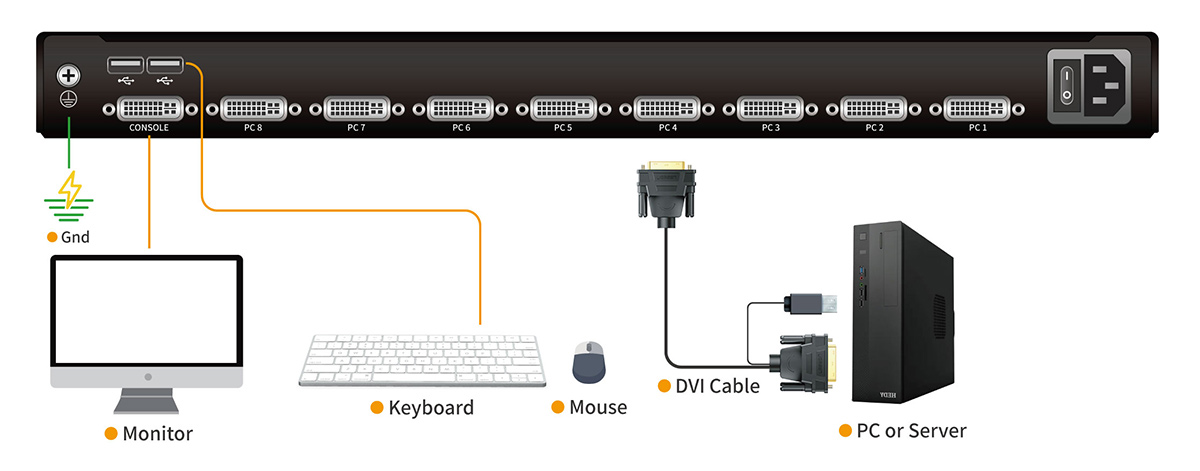

Diagram

Specification

Model		LD2708
Computer connections	Direct	8
Computer connections	Max	8
Port emulation	Keyboard, mouse	USB
LED monitor	LED model	SXGA TFT
	View area	17 “
	Optimum resolution	1280×1024@60Hz
	Display color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	1000 : 1 （ T y p ）
	Pixel pitch(mm)	0.264(H) × 0.264(W)
Mouse	X/Y resolution	>1000 points /inch, (40 points/mm)
Mouse	Roll wheel	Supports scroll wheel function
Keyboard		99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Port selection		Front panel pushbuttons, hotkeys, OSD menu
Input power		100V- 240Vac, 50-60Hz, <1.5A
Power consumption		22W
Mounting distance		600~850mm (L=420mm)
Mounting distance		Mounting rails can be customized for other mounting distance.
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non-condensing
Net weight		12.8 kg
Product dimension (W × D × H)		448mm×581mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
Optional power input		-36V— -72V DC
