17″ Rackmount 16-Port DVI KVM Switch

Model No.: LD2716

Simple KVM Hardware: Integrated KVM Console with a 17″ LCD monitor in 1U height space.
Control of Computers: A single console controls up to 16 computers.
High Video Resolution: Up to 1280 x 1024 @60Hz.
Convenient Computer Switching: front panel LEDs, keyboard hotkey combination or on-screen-display (OSD) menu.
Standard DVI Connection: Connect to a server or computer via standard DVI connectors.
Adjustable LCD Display Module: The LCD module of this DVI KVM switch can be opened up to 108 degrees.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

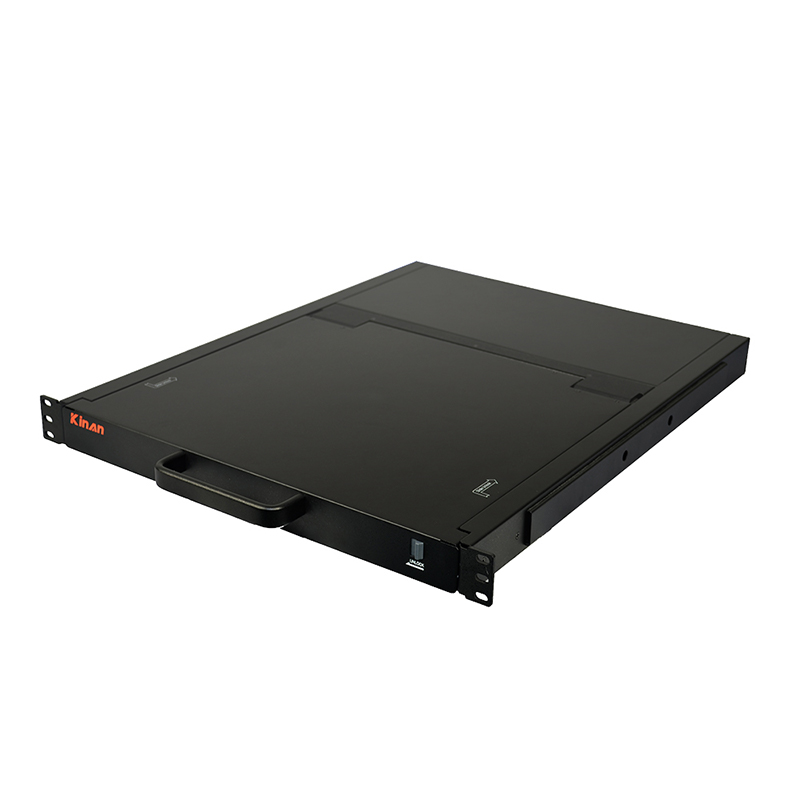

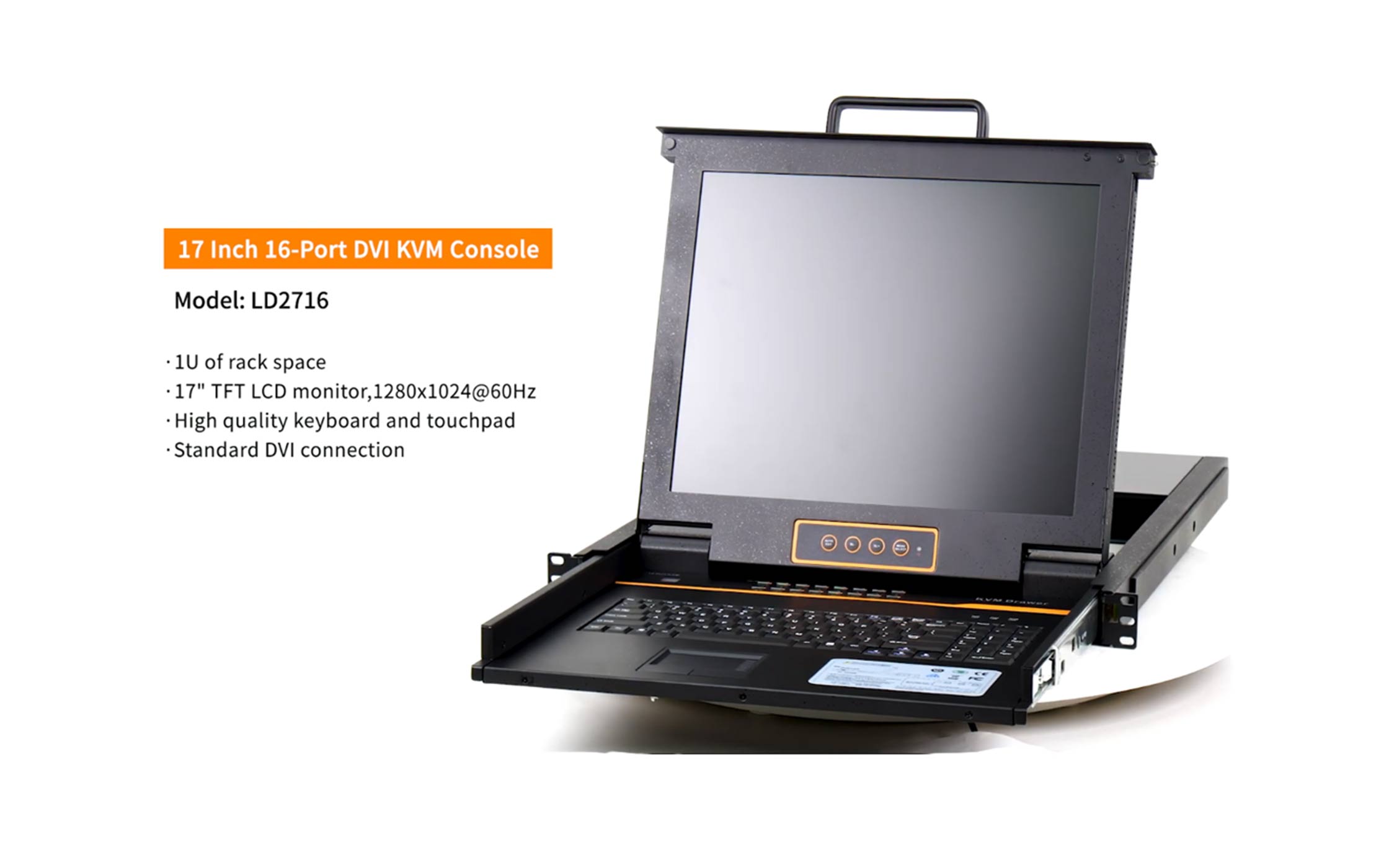

The Kinan’s LD2716 rackmount console drawer features an integrated 17″ LCD screen, keyboard and touchpad in a single console that occupies only 1U of rack space. It allows access and control up to 16 computers from a single console (keyboard, mouse and monitor).

The LD2716 LCD console drawer has a built-in LCD monitor that supports resolution up to 1280×1024@60Hz. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD).

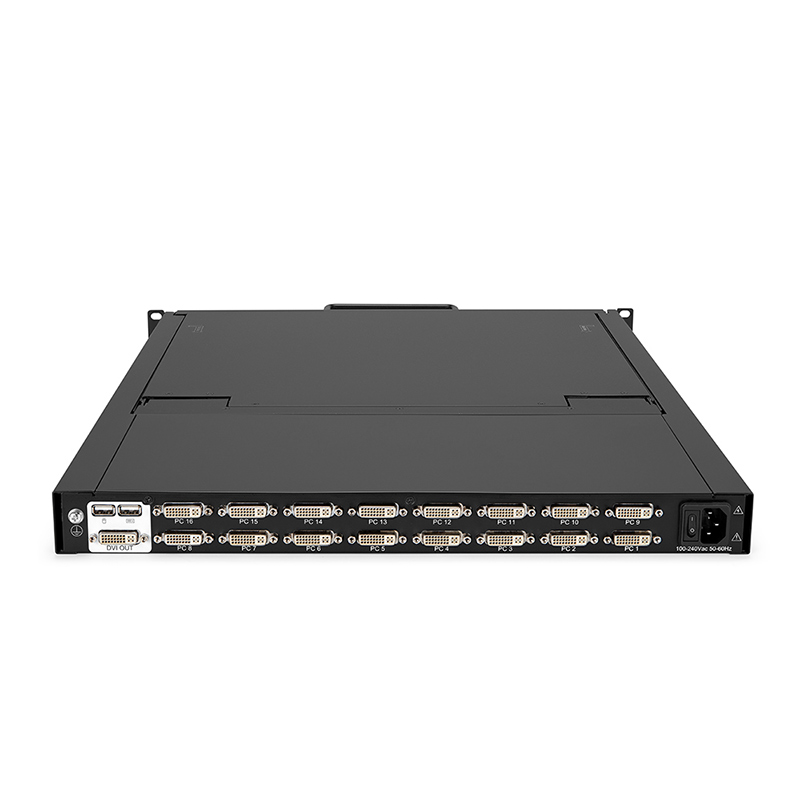

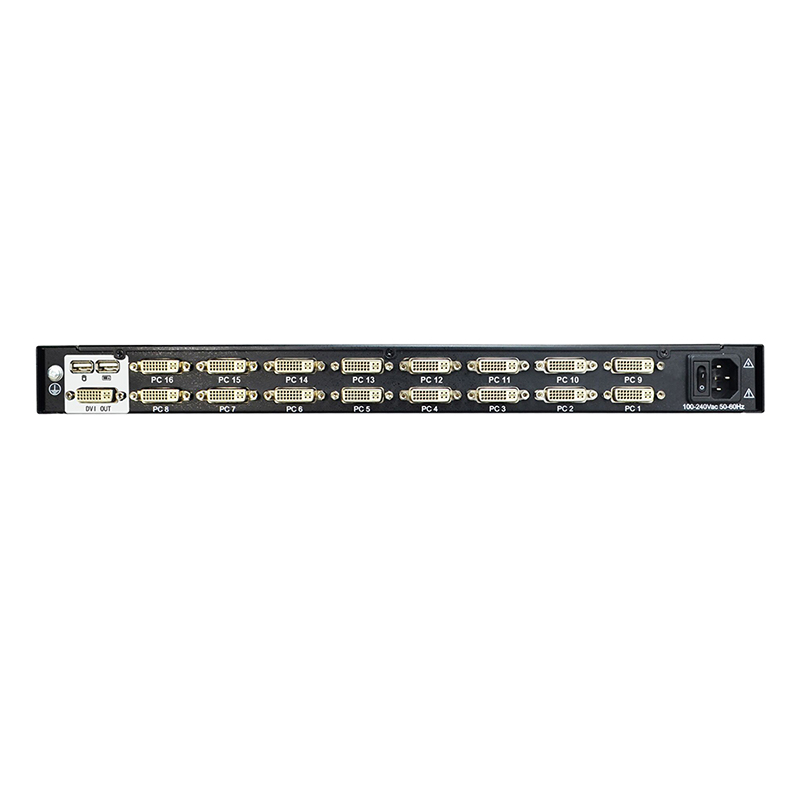

The KVM switch supports both USB and PS/2 connections for the computers. An extra DVI port allows an additional DVI monitor to be connected.

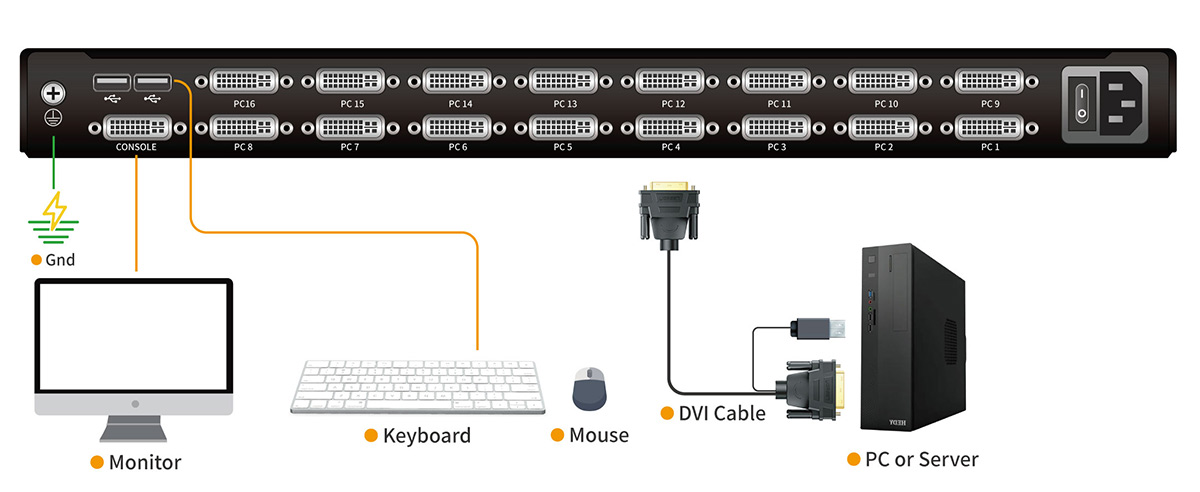

Diagram

Specification

Model		LD2716
Computer connections	Direct	16
Computer connections	Max	16
Port emulation	Keyboard, mouse	USB
LED monitor	LED model	SXGA TFT
	View area	17 “
	Optimum resolution	1280×1024@60Hz
	Display color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	1000 : 1 （ T y p ）
	Pixel pitch(mm)	0.264(H) × 0.264(W)
Mouse	X/Y resolution	>1000 points /inch, (40 points/mm)
Mouse	Roll wheel	Supports scroll wheel function
Keyboard		99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Port selection		Front panel pushbuttons, hotkeys, OSD menu
Input power		100V- 240Vac, 50-60Hz, <1.5A
Power consumption		24W
Mounting distance		600~850mm (L=420mm)
Mounting distance		Mounting rails can be customized for other mounting distance.
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non-condensing
Net weight		13kg
Product dimension (W × D × H)		448mm×581mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
Optional power input		-36V— -72V DC
