17″ FHD Widescreen 8 Port DVI KVM Switch

Model No.: LD1708

Distinguished Hardware: Integrated KVM Console with a 17.3″ widescreen LCD monitor in 1U height space.
Control of Computers: A single console controls up to 8 computers.
High Video Resolution: Up to 1920 x 1080 @60Hz.
Optional Switching Methods: Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD) menu.
Standard DVI connection: Connect to a server or computer via standard DVI connectors.
User-friendly Design: The LCD display module can be opened up to 108 degrees to give users a comfortable viewing experience.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

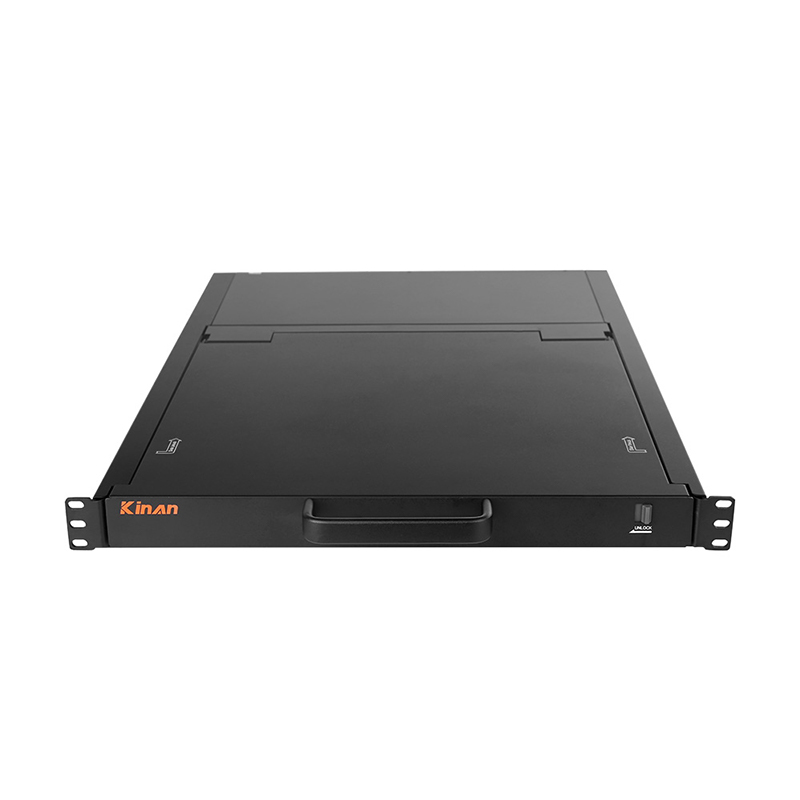

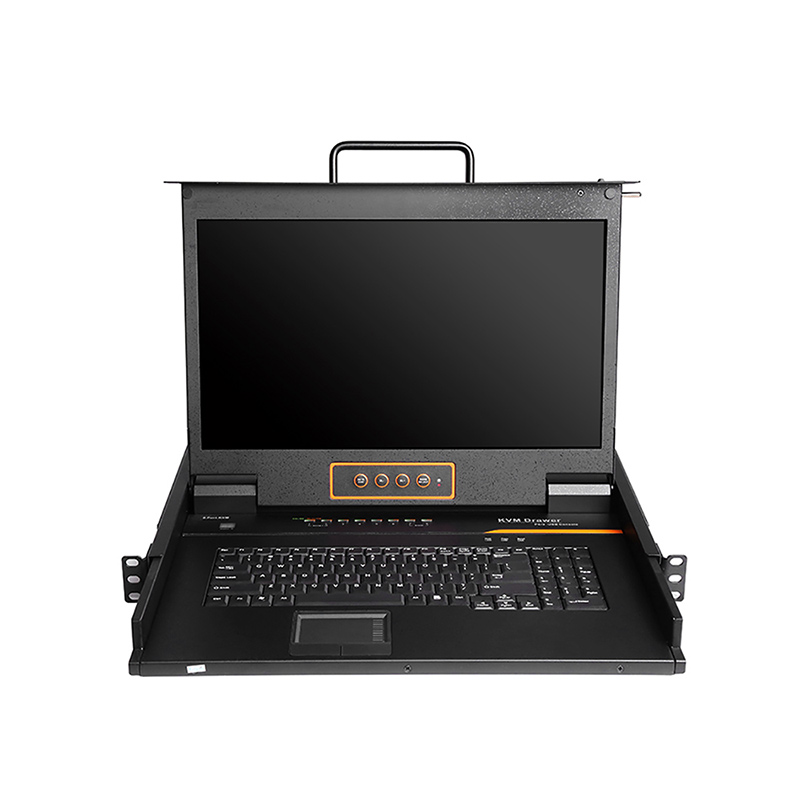

The Kinan’s LD1708 DVI LCD KVM Switch features an integrated 17.3″ widescreen LCD monitor, keyboard and touchpad in a single console that occupies only 1U of rack space. It allows access and control up to 8 computers from a single console (keyboard, mouse and monitor).

The LD1708 LCD KVM Switch has a built-in LCD monitor that supports resolution up to 1920×1080@60Hz. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD).

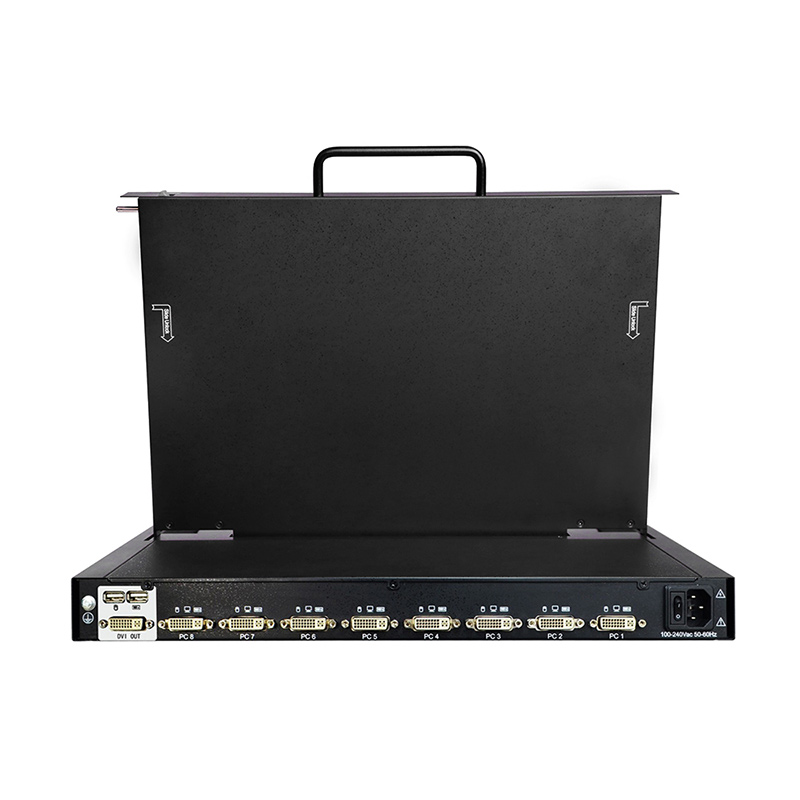

The KVM switch supports both USB and PS/2 connections for the computers. An extra DVI port allows an additional DVI monitor to be connected.

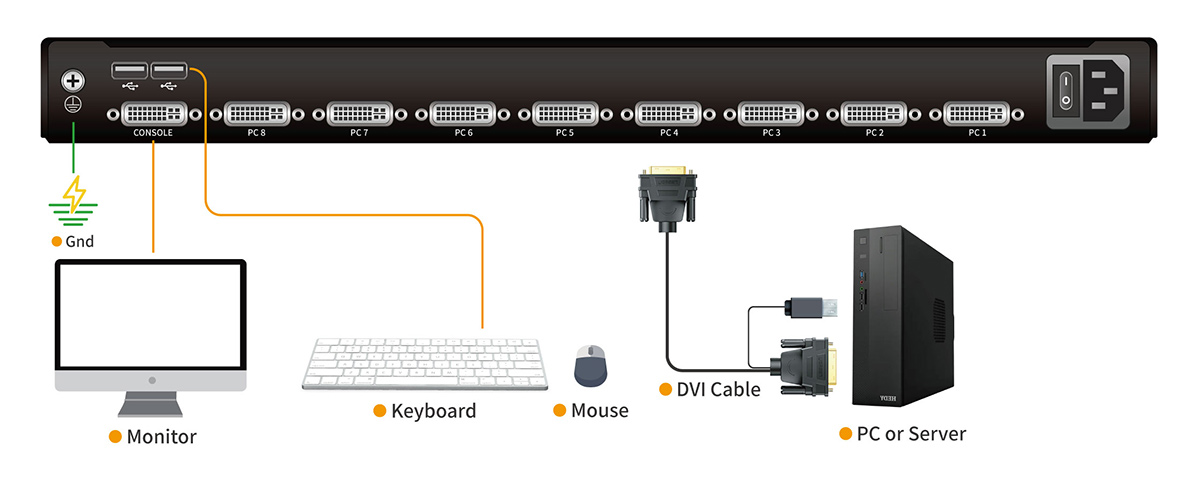

Diagram

Specification

Model		LD1708
Computer connections	Direct	8
Computer connections	Max	8
Port emulation	Keyboard, mouse	USB
LED monitor	LED model	FHD TFT
	View area	17.3″
	Optimum resolution	1920×1080@60Hz
	Display color	16.7 M
	Brightness	250cd/m² (T y p)
	Contrast ratio	800: 1(T y p)
	Pixel pitch(mm)	0.1989(H) × 0.1989(W)
Mouse	X/Y resolution	>1000 points /inch, (40 points/mm)
Mouse	Roll wheel	Supports scroll wheel function
Keyboard		99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Port selection		pushbuttons, hotkeys, OSD menu
Input power		100V- 240Vac, 50-60Hz, <1.5A
Power consumption		13W
Mounting distance		510-850mm (L=420mm)
Mounting distance		Mounting bracket can be customized for other mounting distance
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non-condensing
Net weight		11kg
Product dimension (W × D × H)		448mm×525.6 mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
