17″ 8 Port CAT5 LCD KVM over IP Switch 1-Local / 2-Remote Access

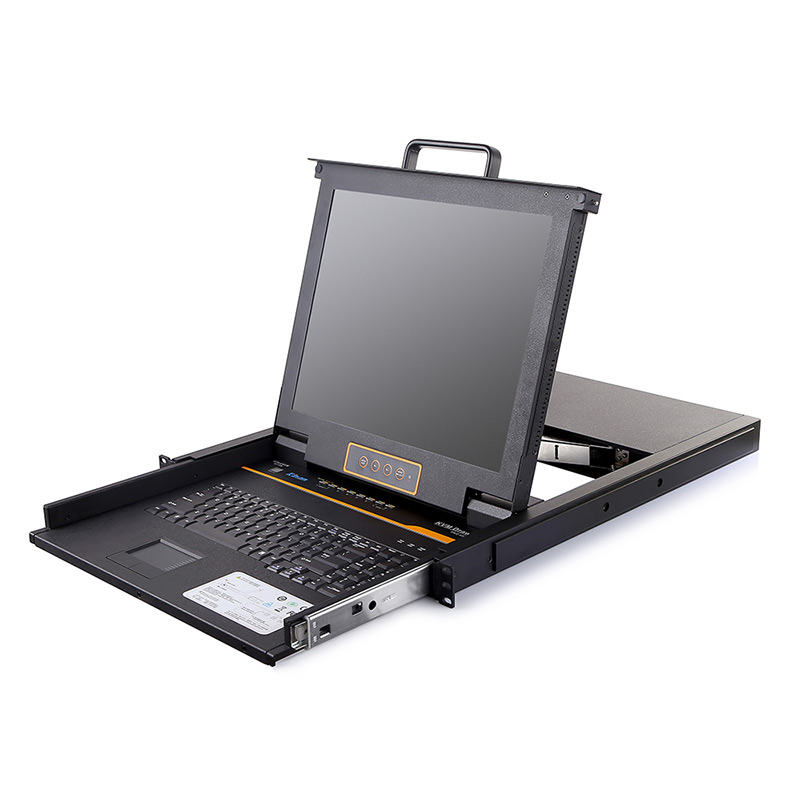

Kinan’s HT5708 8-port Cat5 IP KVM console features an integrated 17” LCD monitor and keyboard with a built-in touchpad in a 1U compact rack-mountable drawer. The HT5708 is the ideal solution for controlling up to 8 computers/servers locally, or remotely via LAN, WAN, or Internet.

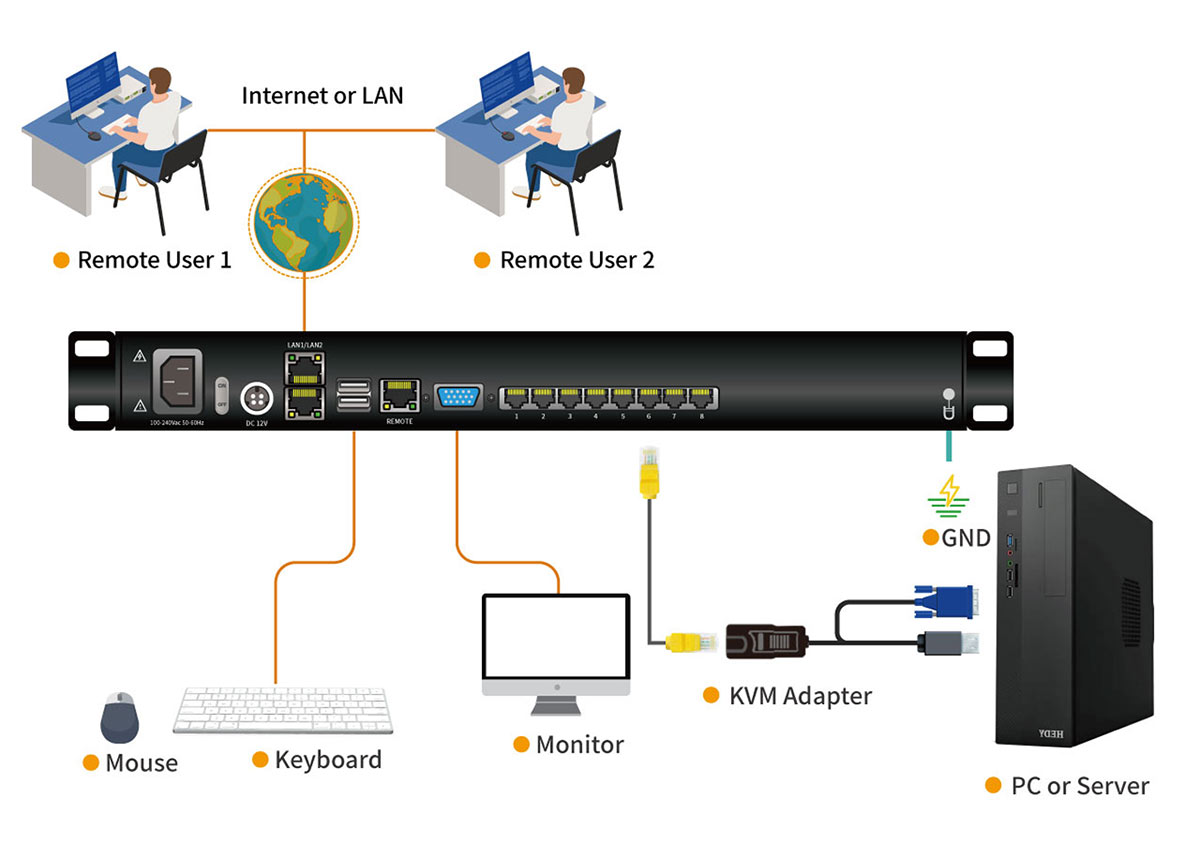

The HT5708 IP KVM switch can be accessed and controlled at the local console and remote over IP access using the web-based browser or windows-based client. In addition, Kinan also offers an IP receiver for remote access to the HT5708 directly, it supports freely switching between local and your remote computer, no need for remote access to the device via the web-based browser.

To help you control and manage an entire data center, the HT5708 KVM over IP switch comes with a Centralized Management Software – KCMS, allowing administrators to remotely manage and control all the devices on a network. The KCMS records all operations on servers accessed through the HT5708.

The HT5708 features dual Ethernet ports and dual power supplies; if one fails, the other takes over, keeping access uninterrupted. Switch easily between the 8 ports using an on-screen display (OSD), hotkey commands, or a remote toolbar. A local user and up to two remote users can each log on and access different ports simultaneously.

The built-in 17” LCD monitor support video resolutions up to 1280×1024@60Hz, up to 1920 x 1080@60Hz on the remote screen. VGA, DVI, HDMI, and DP adapters are available to suit your servers/computers with different video inputs.
