17″4 Port USB VGA LCD KVM Switch

Model No.: XL1704

Simple Hardware: Integrated KVM Console with a 17” LCD monitor.
Control of Computers: A single console controls up to 4 computers.
High Video Resolution: Resolution is up to 1280 x 1024 @60Hz.
Flexible Viewing Angles: LCD module can be opened up to 108 degrees to provide a comfortable viewing angle.
Optional Switching Methods: Convenient computer switching via front panel LEDs and keyboard hotkey combination.
Easy to Use: This USB VGA KVM switch is easy to install by connecting right cables to the ports of it properly.
Support Hot Plugging: No need to power off the switch when adding or removing servers/computers.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

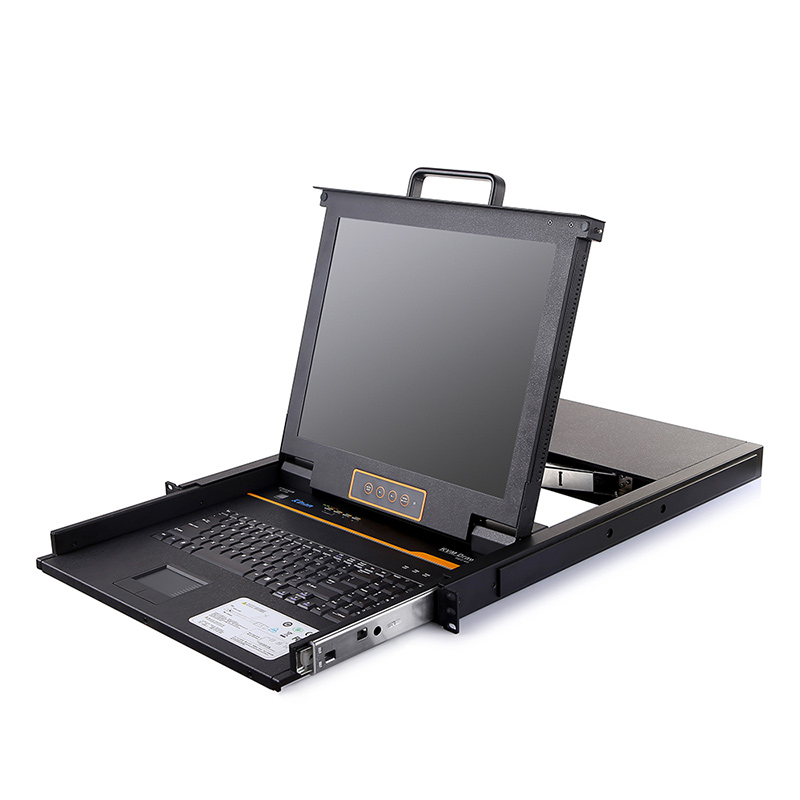

The Kinan’s XL1704 LCD KVM Switch features an integrated 17″ LCD screen, keyboard and touchpad in a single console that occupies only 1U of rack space. It allows access and control up to 4 computers from a single console (keyboard, mouse and monitor).

The XL1704 LCD KVM Console has a built-in LCD monitor that supports resolution up to 1280×1024@60Hz. Switching between computers can be easily accomplished by front panel pushbuttons and keyboard hotkeys. The LCD KVM monitor supports USB connection for the computers.

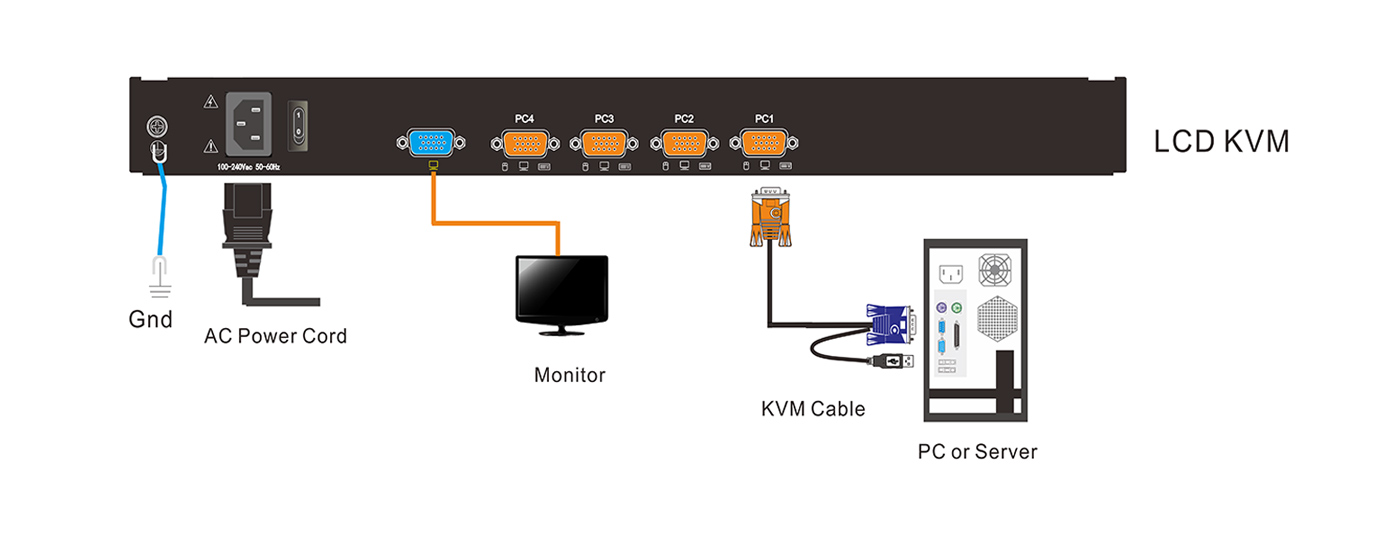

Diagram

Specification

Model		XL1704
Computer connections	Direct	4
Computer connections	Max	4
Port emulation	Keyboard, mouse	USB
LED monitor	LED model	SXGA TFT
	View area	17 “
	Optimum resolution	1280×1024@60Hz
	Display color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	1000 : 1 （ T y p ）
	Pixel pitch(mm)	0.264(H) × 0.264(W)
Mouse	X/Y resolution	>1000 points /inch, (40 points/mm)
Mouse	Roll wheel	Supports scroll wheel function
Keyboard		99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Port selection		Pushbuttons, hot keys
Input power		100V- 240Vac, 50-60Hz, <1.5A
Power consumption		15W
Mounting distance		450- 790mm (L=420mm)
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non-condensing
Net weight		11.7kg
Product dimension (W × D × H)		448mm×481mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
