17″ 32 Port CAT5 LCD KVM over IP Switch 1-Local / 2-Remote Access

Model No.: HT5732

Advanced KVM Switch: Integrated KVM Console with a 17″ LCD monitor in 1U height space.
High Video Resolution: 1920×1080@60Hz for remote console, 1280 x 1024@60Hz for local console.
Power Supply Redundancy: Run the KVM over IP switch normally with dual power supply.
Remote Control: Support 1 local user and 2 remote users, port share mode allows local and remote users to gain access to a server simultaneously.
Support Diverse Servers: Support servers with VGA/DVI/HDMI/DP ports.
Convenient LCD Screen: User can freely adjust the angles of the LCD module because it support up to 108 degrees.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

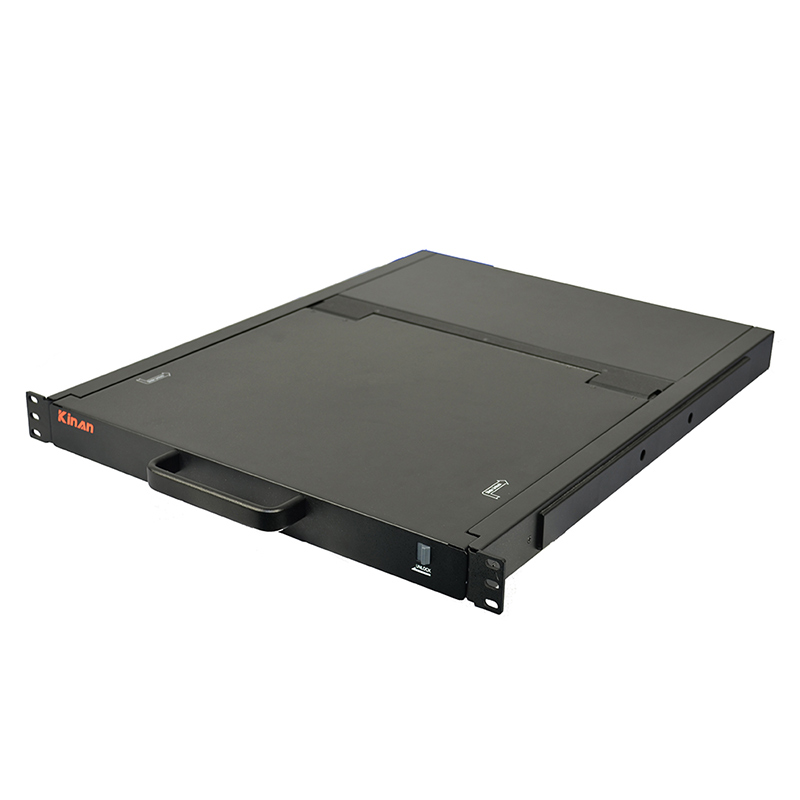

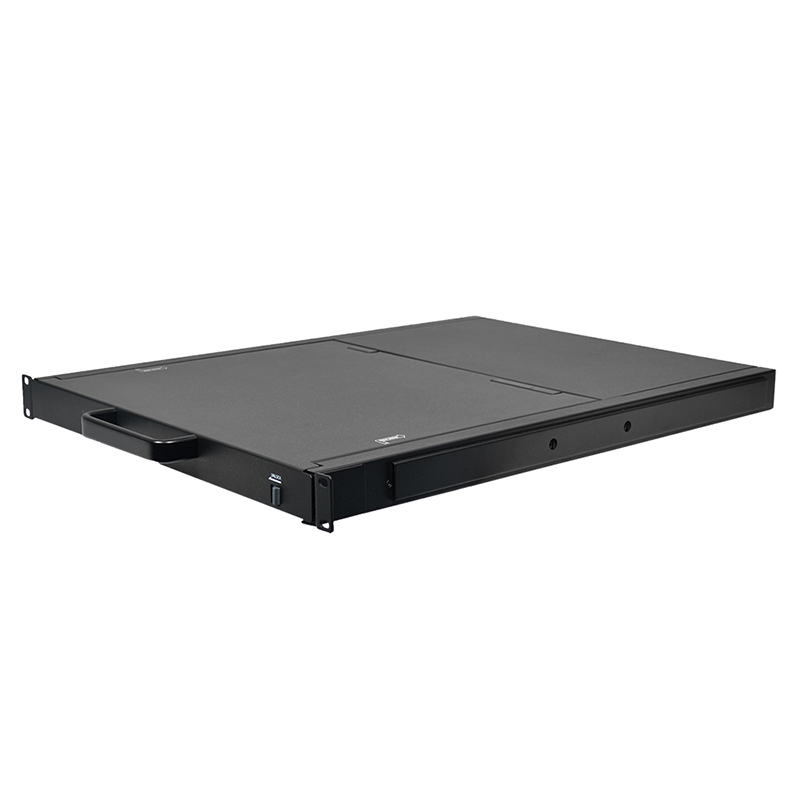

Kinan’s HT5732 is an LCD KVM switch with remote access, featuring an integrated 17” LCD monitor and keyboard with a built-in touchpad in a 1U space-saving drawer. The built-in 17” LCD display supports video resolutions up to 1280×1024@60Hz, up to 1920 x 1080@60Hz on the remote screen.

With HT5732 KVM switch and its own Centralized Management Software, users are allowed to access and control up to 32 computers/servers remotely via single IP KVM. VGA, DVI, HDMI, and DP adapters are available to suit your servers/computers with different video inputs. Switch between the 32 ports easily via an on-screen display (OSD), hotkey commands, or a remote toolbar. A local user and up to two remote users can each log on and access different ports simultaneously.

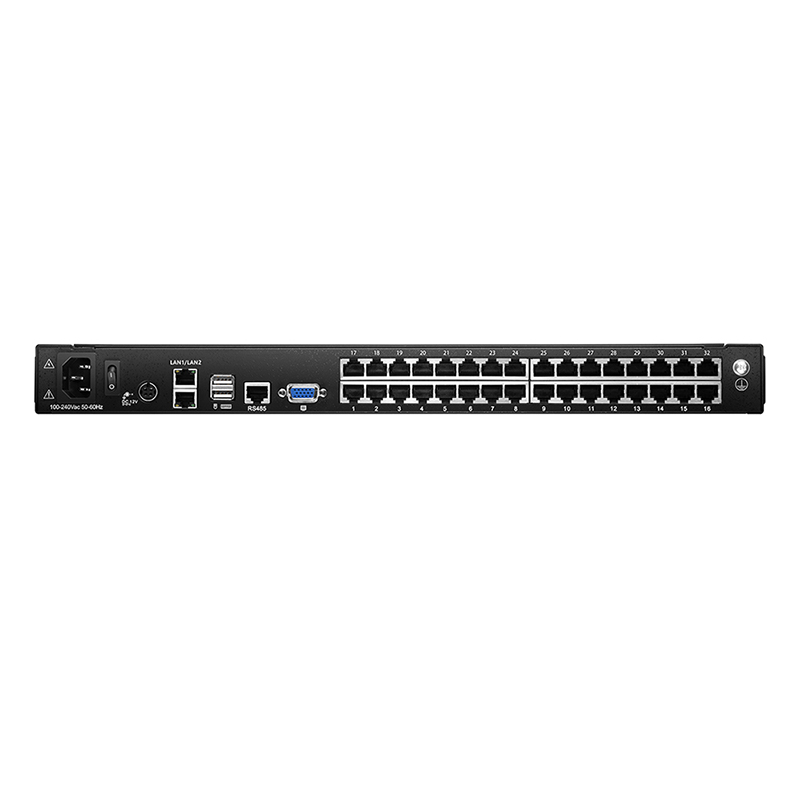

The HT5732 features dual Ethernet ports and dual power supplies; if one fails, the other takes over, keeping access uninterrupted.

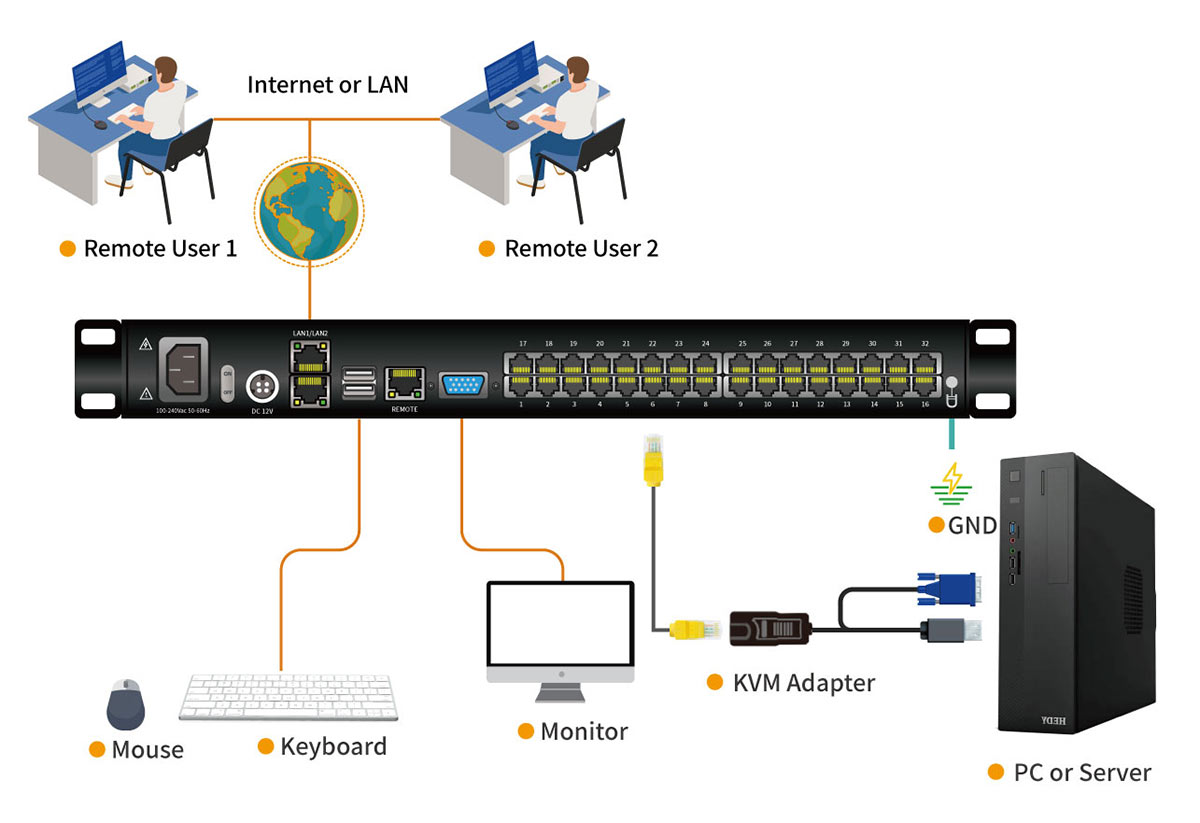

Diagram

Specification

Model		HT5732
Computer Connections	Direct	32
	Max	32
Port Selection	Keyboard, Mouse	Button, UI, Web, Hotkey
LCD Monitor	Model	SXGA TFT
	View Area	17″
	Optimum Resolution	1280×1024@60Hz
	Color	16.7 M (Typ)
	Brightness	250 cd/m² (Typ)
	Contrast Ratio	1000:01:00
	Pixel Pitch(mm)	0.264(H) × 0.264(W)
Mouse	X/Y Resolution	>1000 points / inch,（ 40 points/mm ）
	Scroll Wheel	Supports Scroll Wheel function
Keyboard		99 keys (82 keyboard + 17 number pad)
Remote	Remote Control	KVM Control (ActiveX)
	Management	Web
	Security	DES Encrypted
	Resolution	1920×1080@60Hz
Power Input		100V- 240Vac, 50-60Hz, <1.5A
Power Consumption		31W
Operating Temperature		0 — 50 ℃
Store Temperature		-20 —60 ℃
Humidity		0 —80% RH, non-condensing
Net Weight		13.2kg
Product Dimension (W × D × H)		448mm × 581mm × 42.5mm
Package Dimension (W × D × H)		765mm × 615mm × 185mm
