17″ 32 Port CAT5 LCD KVM over IP Switch 1-Local / 1-Remote Access

Model NO.: HT1732

Simple KVM Hardware: Integrated KVM Console with a 17″ LCD monitor in 1U height space.
High Video Resolution: The resolution is up to 1920×1080@60Hz for remote console, local console resolution is up to 1280 x 1024 60Hz.
Power Supply Redundancy: Dual power supply for normal operation.
Remote Control: Support 1 local user and 1 remote user, port share mode allows local and remote users to gain access to a server simultaneously.
Support Diverse Servers: Support servers with VGA/DVI/HDMI/DP ports.
Flexible LCD Module: Up to 108 degrees for a comfortable viewing experince.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

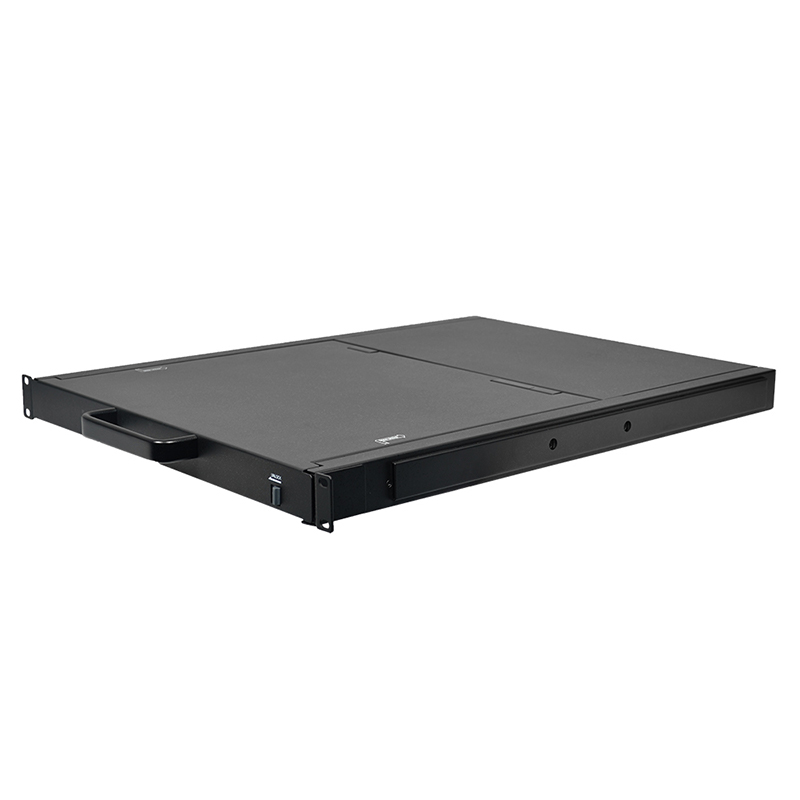

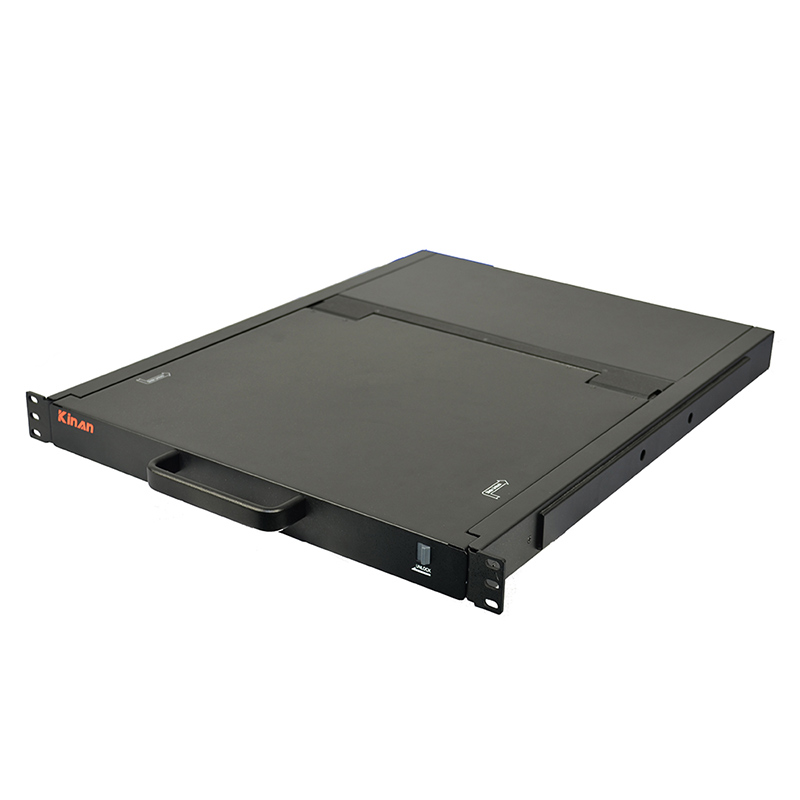

The HT1732 CAT5 LCD KVM over IP Switch 1-Local / 1-Remote Access integrated KVM Console with 17″ LCD monitor, keyboard and touchpad in a 1U rack mountable housing.

The HT1732 IP-based connectivity that allows local and remote operators to monitor and access the computers independently and simultaneously. With TCP/IP communications protocol, you can access to the connected servers from any computer on the LAN, WAN or Internet. The mouse synchronization mode automatically synchronizes the local and remote mouse movements.

Our kvm over IP switch connects computers with compact RJ-45 connectors and Cat 5e/6 cable up to 100m. In addition, the VGA/DVI/HDMI/DP adapter are available. The Video quality and video tolerance can be adjusted to optimize the data transfer speed up to 30 FPS. The video resolution is up to 1280 x 1024 @60Hz for local console and remote console resolution is up to 1920×1080@60Hz.

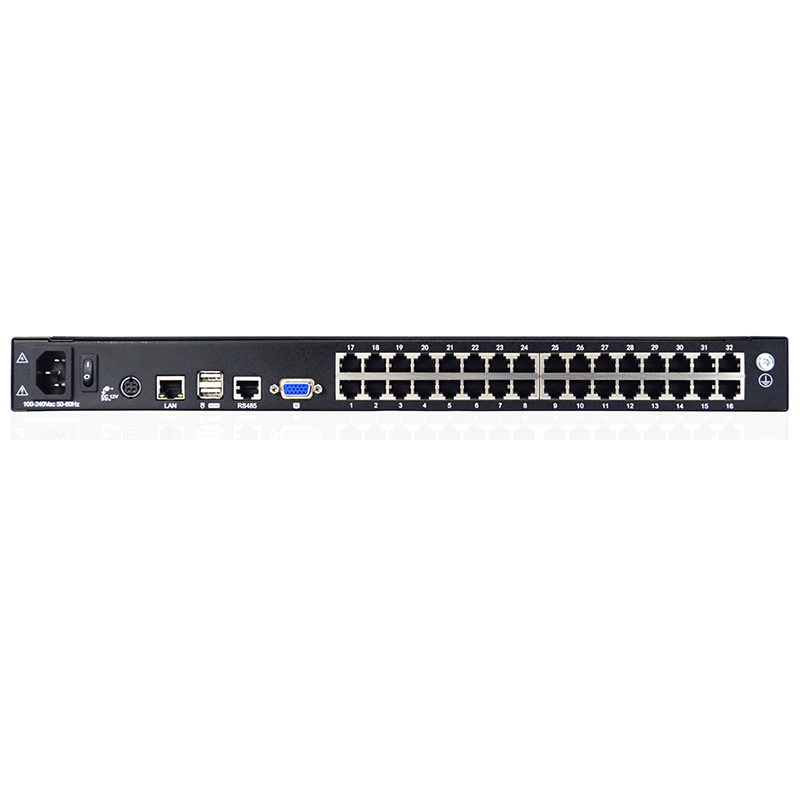

The IP KVM Console supports both USB and PS/2 connections for the computers. An extra HDB15 port allows an additional VGA monitor to be connected. It’s easy to set up the remote kvm, just plug the cable into the appropriate port, no software needed, no complicated installation procedures, and no compatibility issues.

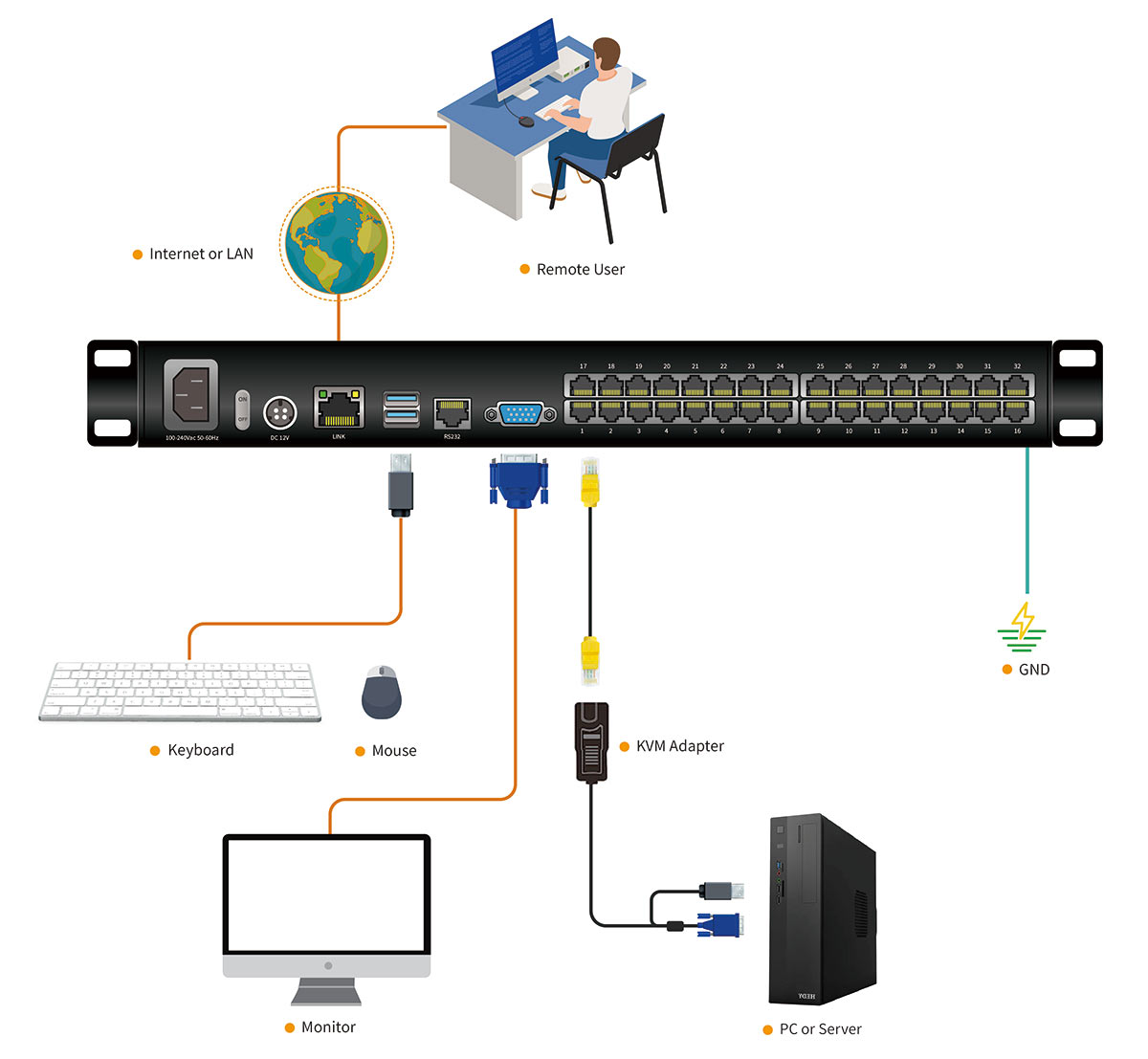

Diagram

Specification

Model		HT1732
Computer Connections	Direct	32
	Max	32
Port Selection	Keyboard, Mouse	Button, UI, Web, Hotkey
LED Monitor	Model	SXGA TFT
	View Area	17″
	Optimum Resolution	1280×1024@60Hz
	Color	16.7 M
	Brightness	250 cd/m²
	Contrast Ratio	1000:01:00
	Pixel Pitch(mm)	0.264(H) × 0.264(W)
Mouse	X/Y Resolution	>1000 points / inch,（ 40 points/mm ）
	Scroll Wheel	Supports Scroll Wheel function
Keyboard		99 keys (82 keyboard + 17 number pad)
Remote	Remote Control	KVM Control (ActiveX)
	Management	Web
	Security	DES Encrypted
	Resolution	1920×1080@60Hz
Power Input		100V- 240Vac, 50-60Hz, <1.5A
Power Consumption		27W
Operating Temperature		0 — 50 ℃
Store Temperature		-20 —60 ℃
Humidity		0~80% RH, non-condensing
Net Weight		13.2kg
Product Dimension (W × D × H)		448mm × 581mm × 42.5mm
Package Dimension (W × D × H)		765mm × 615mm × 185mm
