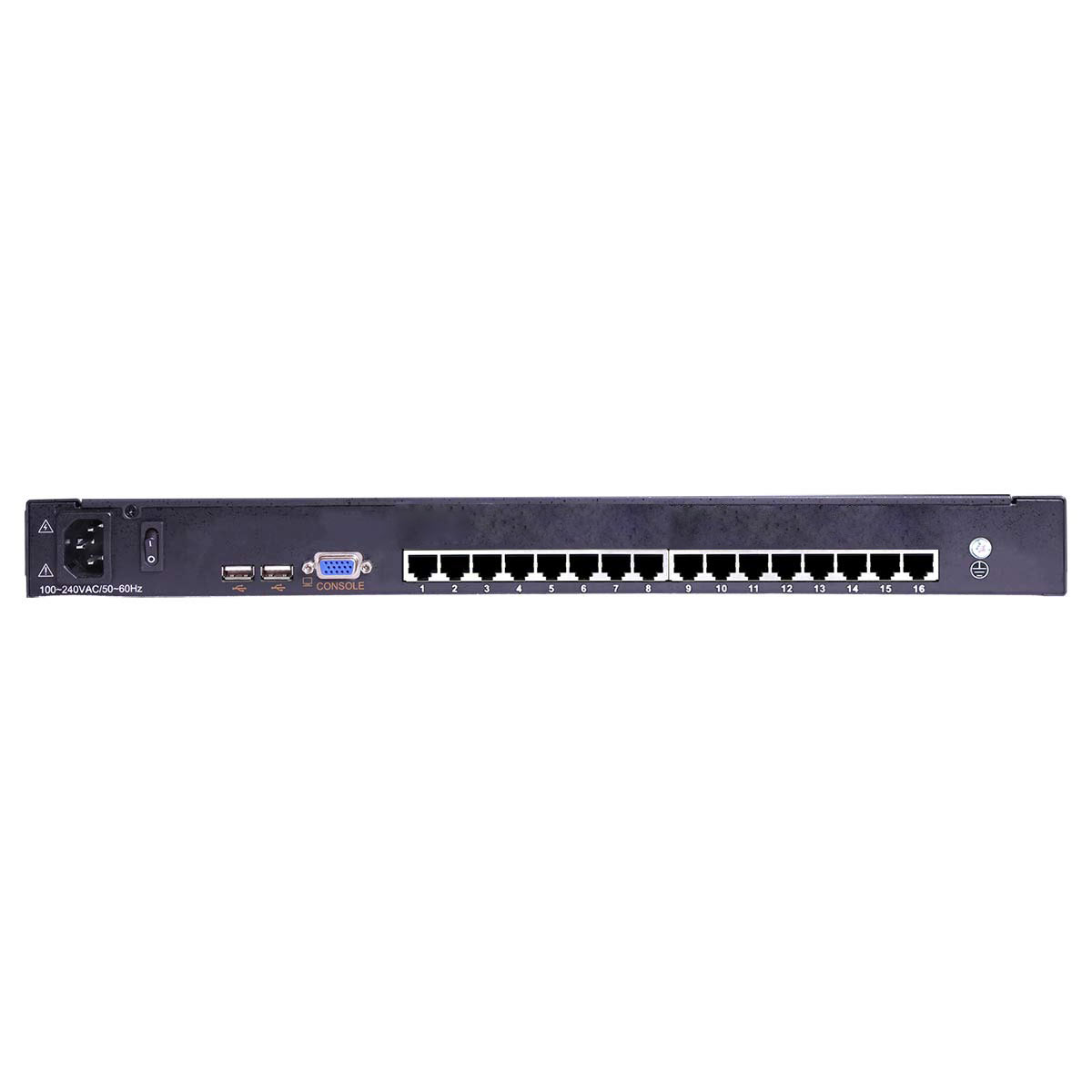

17.3" 16-Port Short Depth Cat5 LCD KVM Switch-rear view

17.3″ 16-Port Short Depth Cat5 LCD KVM Switch

Model No.: CW1716

Compact All-in-One Console: Integrates a 17.3-inch widescreen LCD display with a built-in KVM console, delivering a unified, space-efficient solution.
Centralized 16-Device Management: Control up to 16 computers from a single control, streamlining oversight of multi-system environments.
Full HD Display: Delivers 1920 × 1080 resolution at 60Hz for vivid, lifelike visuals and smooth operation.
Intuitive Switching Options: Seamlessly transition between devices via front-panel LED indicators, programmable keyboard shortcuts, or an easy-to-navigate on-screen menu.
Ergonomic Adjustment: The LCD module can be opened up to 108 degrees to minimize screen glare and optimize comfort during prolonged use.
Hot-Pluggable Flexibility: Add or replace servers freely without powering down the system, maintaining continuous operations.
Universal RJ-45 Connectivity: Link devices effortlessly using standard RJ-45 ports and Cat5e/Cat6 cables for quick, plug-and-play setup.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

The Kinan CW1716 merges a 17.3-inch LCD monitor, keyboard/touchpad, and a Cat5 KVM switch into a sleek, space-saving 1U rack-mounted design. This unified system offers direct control of up to 16 computers from a single console, with scalability to manage up to 512 devices by connecting 31 additional KVM switches. The integrated 17.3-inch LCD delivers vibrant Full HD resolution (1920×1080 at 60Hz), ensuring crisp, lag-free visuals for precise monitoring.

Two rear USB ports enable versatile peripheral connectivity, supporting external keyboards, mice, or secondary displays. Switching between systems is effortless, with options for front-panel controls, keyboard shortcuts, or an intuitive on-screen interface (OSD). Robust security is maintained through dual-layer password protection, while RJ-45 ports and Cat5e/6 cables ensure stable, long-range connectivity up to 100 meters.

Designed for plug-and-play simplicity, the Cat5 KVM switch requires minimal setup—just connect cables to the designated ports, bypassing the need for complex software installations. Perfect for enterprise settings, this solution enhances efficiency in data centers and control rooms by centralizing server management and optimizing workflows. Its streamlined design reduces clutter, empowering operators to manage multiple systems seamlessly while boosting productivity in demanding environments.

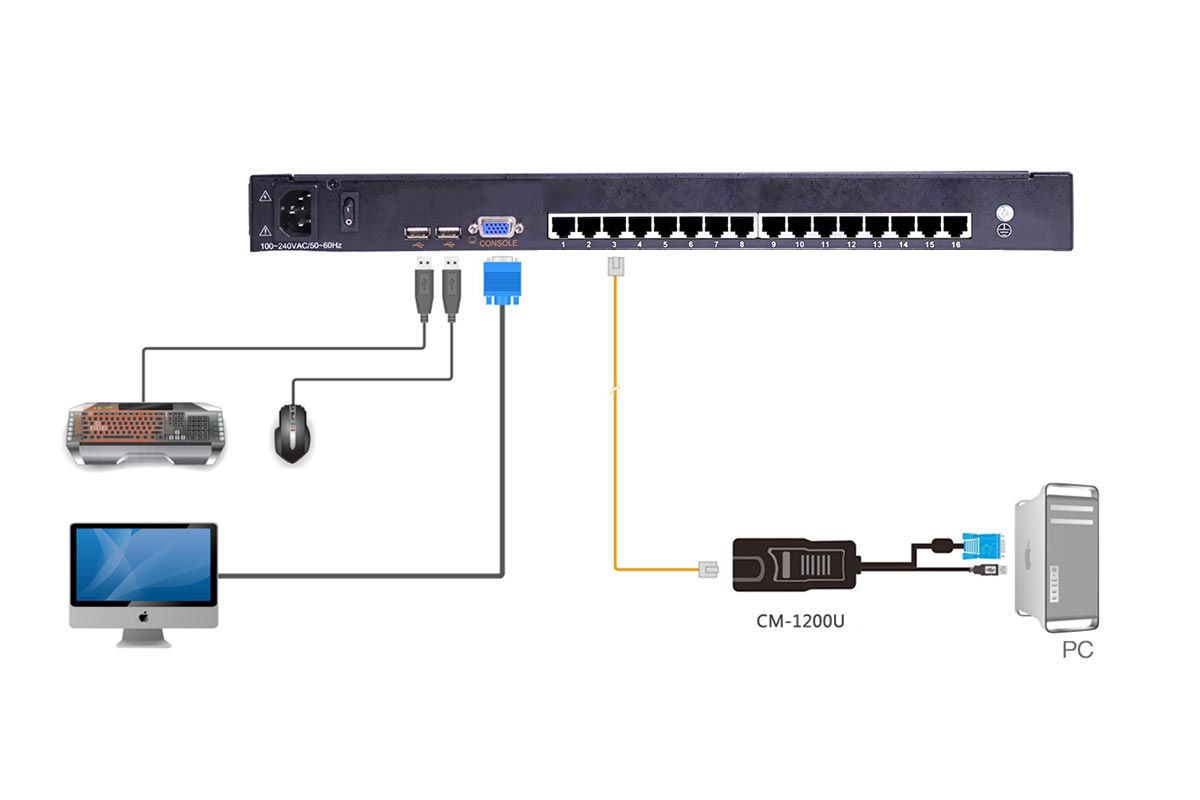

Diagram

Specification

Model		CW1716
Computer connections	Direct	16
	Max	512
Port emulation	Keyboard, mouse	PS/2, USB
LCD monitor	LCD model	FHD TFT
	View area	17.3″
	Optimum resolution	1920×1080@60Hz
	Display color	262K
	Brightness	300cd/m²( T y p )
	Contrast ratio	800 : 1( T y p )
	Pixel pitch(mm)	0.1989(H) × 0.1989(W)
Mouse	X/Y resolution	>1000 points / inch,（ 40 points/mm ）
	Roll wheel	Supports scroll wheel function
Keyboard		99 keys (82 keys main keyboard +17 independent small number pad)
Port selection		Front panel pushbuttons, hotkeys, OSD menu
Input power		100V‐ 240Vac , 50‐60Hz , <1.5A
Power consumption		19W
Mounting distance		686‐770mm ( L=262mm)
		Mounting bracket can be customized for other mounting distance
Operating temperature		0 — 50 ℃
Store temperature		‐20 — 60 ℃
Humidity		0—80% RH, non‐condensing
Net weight		11.6kg
Product dimension (W × D × H)		448mm×560mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
Optional power input		‐36V~ ‐72V DC
