Home » KVM Over IP Switches » 17.3″ 16 Port Cat5 LCD IP KVM Switch 1-Local / 1-Remote Access

17.3″ 16 Port Cat5 LCD IP KVM Switch 1-Local / 1-Remote Access

Model No.: HT2716

Hardware Composition: The IP KVM switch is designed with a 17.3” widescreen monitor.
Number of Computers: Control up to 16 computers.
High Video Resolution: The local and remote resolution is up to 1920 x 1080@60Hz.
Power Supply Redundancy: It is designed with dual power supply to ensure the normal operation of the switch.
Real-time Remote Access: 1 local user and 1 remote user can access and control this KVM switch conveniently.
Support Diverse Servers: Support servers with VGA/DVI/HDMI/DP ports.
Support Hot Plugging: Add or remove computers without having to power off the remote KVM switch.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

Kinan’s HT2716 Cat5 LCD IP KVM Switch is the best KVM device for the users to ccontrol up to 16 computers remotely over the Internet from a single KVM console. This switch can be integrated in a 1U rackmount housing with an 17.3″ LCD monitor, keyboard, and touchpad together.

The IP-based connectivity of the HT2716 allows 1 local and 1 remote users to monitor and control the computers simultaneously. In addition, with TCP/IP communications protocol, the users can aacees to the connected servers from any computer on the LAN, WAN, or the Internet.

The installation of this Cat5 IP KVM switch is user-friendly. The users just need to plug the cables into the ports of the servers properly without any software, complicated procedures, and compatibility issues. Also, with compact RJ-45 connectors and Cat5e/6 cables connected to the computers, the transmitting distance can be up to 100m.

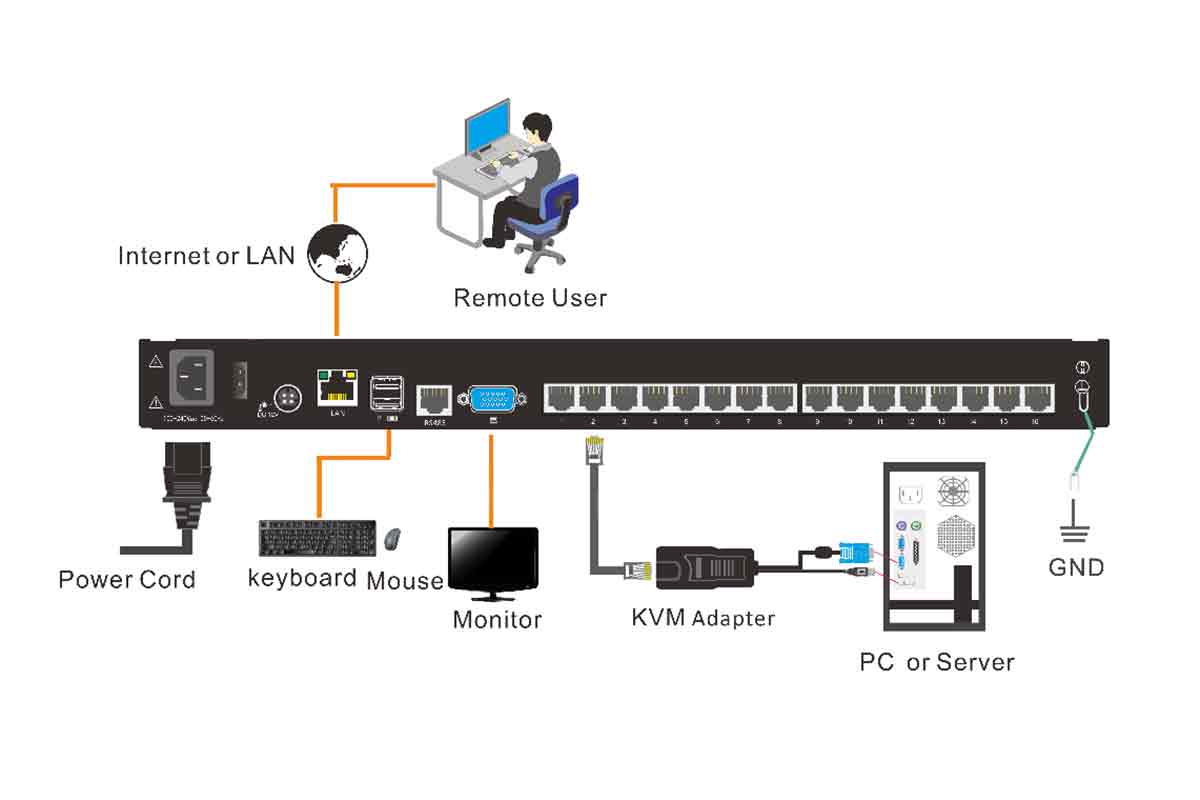

Diagram

Specification

Model		HT2716
Computer Connections	Direct	16
	Max	16
Port Selection	Keyboard, Mouse	Button, UI, Web, Hotkey
LED Monitor	Model	FHD TFT
	View Area	17.3″
	Optimum Resolution	1920×1080@60Hz
	Color	16.7M
	Brightness	250cd/m²( T y p )
	Contrast Ratio	800 : 1( T y p )
	Pixel Pitch(mm)	0.1989(H) × 0.1989(W)
Mouse	X/Y Resolution	>1000 points / inch, (40 points/mm)
	Scroll Wheel	Supports Scroll Wheel function
Keyboard		99 keys (82 keyboard + 17 number pad)
Remote	Remote Control	KVM Control (ActiveX)
	Management	Web
	Security	DES Encrypted
	Resolution	1920×1080@60Hz
Power Input		100V- 240Vac , 50-60Hz , <1.5A
Mounting distance		510-850mm ( L=420mm)
		Mounting bracket can be customized for Other mounting distance
Power Consumption		25W
Operating Temperature		0 — 50 ℃
Store Temperature		-20 —60 ℃
Humidity		0—80% RH, non-condensing
Net Weight		11.2kg
Product Dimension (W × D × H)		448mm×525.6mm mm×42.5mm
Package Dimension (W × D × H)		765mm×615mm×185mm
