17″ 24 Port CAT5 LCD KVM over IP Switch 1-Local / 2-Remote Access

Model No.: HT5724

Advanced KVM Hardware: Integrated KVM Console with a 17″ LCD monitor in 1U height space.
High Video Resolution: Resolution is up to 1920×1080@60Hz for remote console, local console resolution is up to 1280 x 1024@60Hz
Power Supply Redundancy: Allows the KVM over IP switch run normally.
Remote Control: Support 1 local user and 2 remote users, port share mode allows local and remote users to gain access to a server simultaneously.
Support Diverse Servers: Support servers with VGA/DVI/HDMI/DP ports.
Flexible LCD Screen Module: Provids users with a comfrotable viewing experience becasue it can be adjusted to any angle. (Max angle is 108 degrees).

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

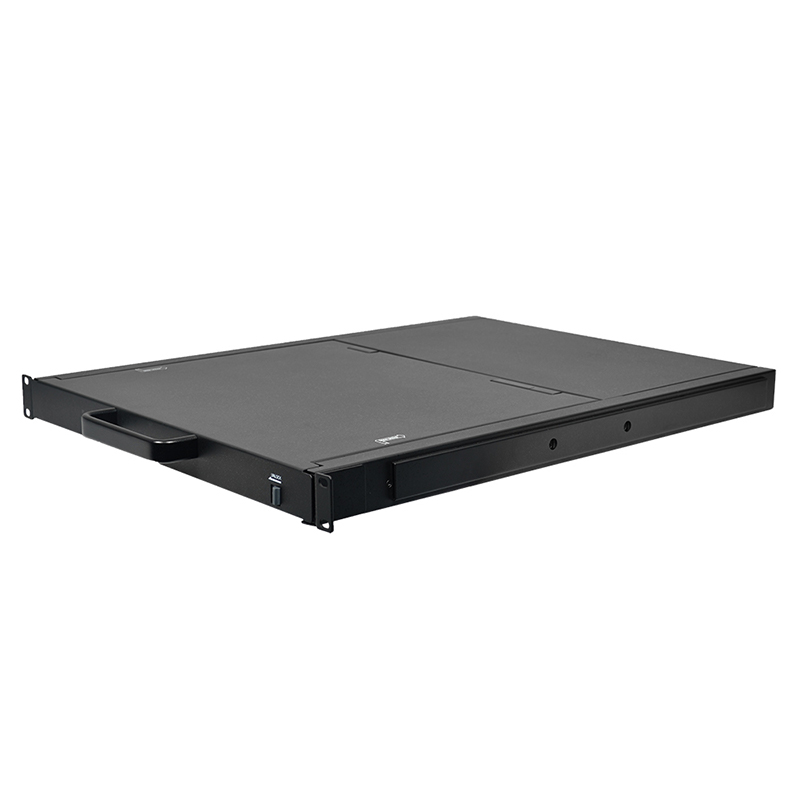

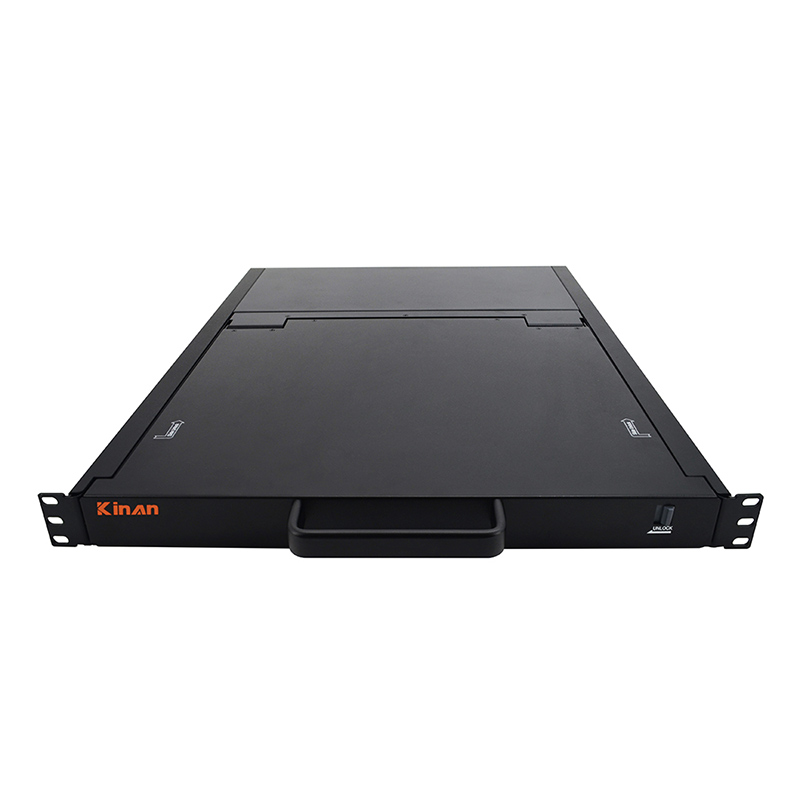

Kinan’s HT5724 kvm switch over IP features an integrated 17” LCD monitor and keyboard with a built-in touchpad in a 1U compact rack-mountable drawer. The HT5724 is the ideal solution for controlling up to 24 computers/servers locally, or remotely via IE browser or Centralized Management Software.

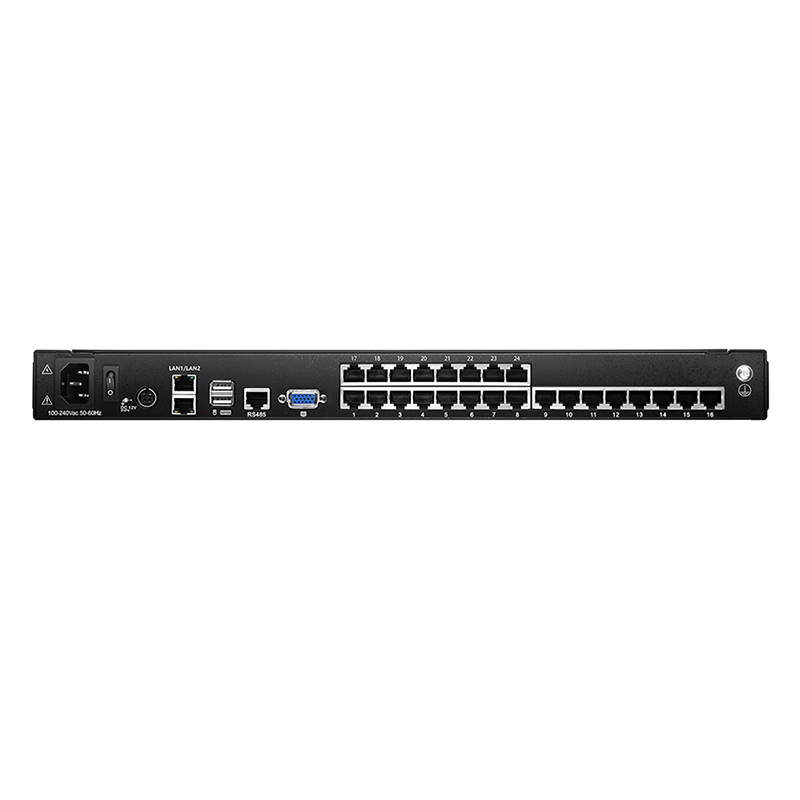

The HT5724 features dual Ethernet ports and dual power supplies; if one fails, the other takes over, keeping access uninterrupted. Switch between the 24 ports easily via an on-screen display (OSD), hotkey commands, or a remote toolbar. A local user and up to two remote users can each log on and access different ports simultaneously.

The built-in 17” LCD monitor supports video resolutions up to 1280×1024@60Hz, up to 1920 x 1080@60Hz on the remote screen. VGA, DVI, HDMI, and DP adapters are available to suit your servers/computers with different video inputs.

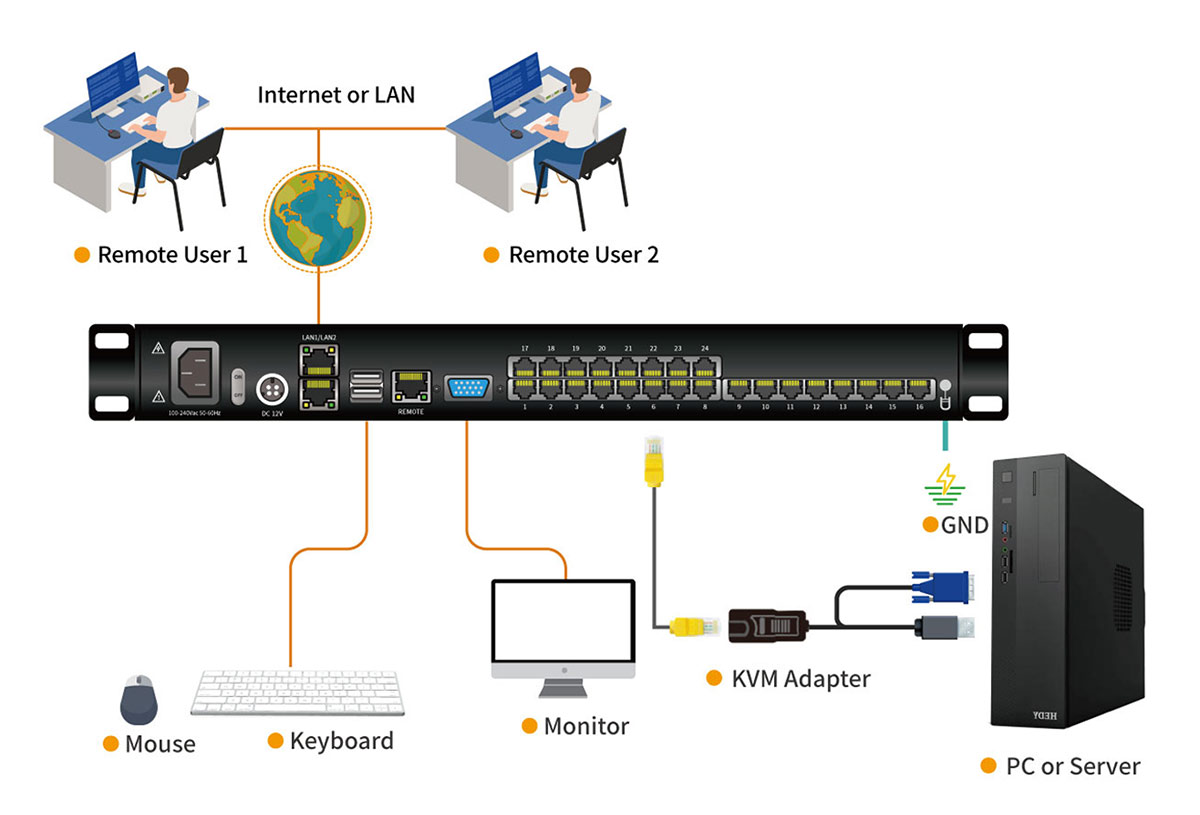

Diagram

Specification

Model		HT5724
Computer Connections	Direct	24
	Max	24
Port Selection	Keyboard, Mouse	Button, UI, Web, Hotkey
LCD Monitor	Model	SXGA TFT
	View Area	17″
	Optimum Resolution	1280×1024@60Hz
	Color	16.7 M (Typ)
	Brightness	250 cd/m² (Typ)
	Contrast Ratio	1000:01:00
	Pixel Pitch(mm)	0.264(H) × 0.264(W)
Mouse	X/Y Resolution	>1000 points / inch,（ 40 points/mm ）
	Scroll Wheel	Supports Scroll Wheel function
Keyboard		99 keys (82 keyboard + 17 number pad)
Remote	Remote Control	KVM Control (ActiveX)
	Management	Web
	Security	DES Encrypted
	Resolution	1920×1080@60Hz
Power Input		100V- 240Vac, 50-60Hz, <1.5A
Power Consumption		29W
Operating Temperature		0 — 50 ℃
Store Temperature		-20 —60 ℃
Humidity		0 —80% RH, non-condensing
Net Weight		13.2kg
Product Dimension (W × D × H)		448mm × 581mm × 42.5mm
Package Dimension (W × D × H)		765mm × 615mm × 185mm
