17″ 16 Port FHD Rackmount LCD KVM Switch 1080P

Model No.: XW1716

Advanced Hardware: Integrated KVM Console with a 17.3” widescreen LCD monitor in 1U height space.
Number of Computers: A single console controls up to 16 computers.
Optimum Resolution: The LCD screen can support up to 1920 x 1080 @60Hz.
Easy to Use: Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD) menu.
Daisy-chain Connection: Support daisy-chain connection and control up to 512 computers.
Enjoyable Viewing Experience: The flexible LCD module can support up to 108 degrees.
Wide Compatibility: Windows, Sun, Unix and Linux.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

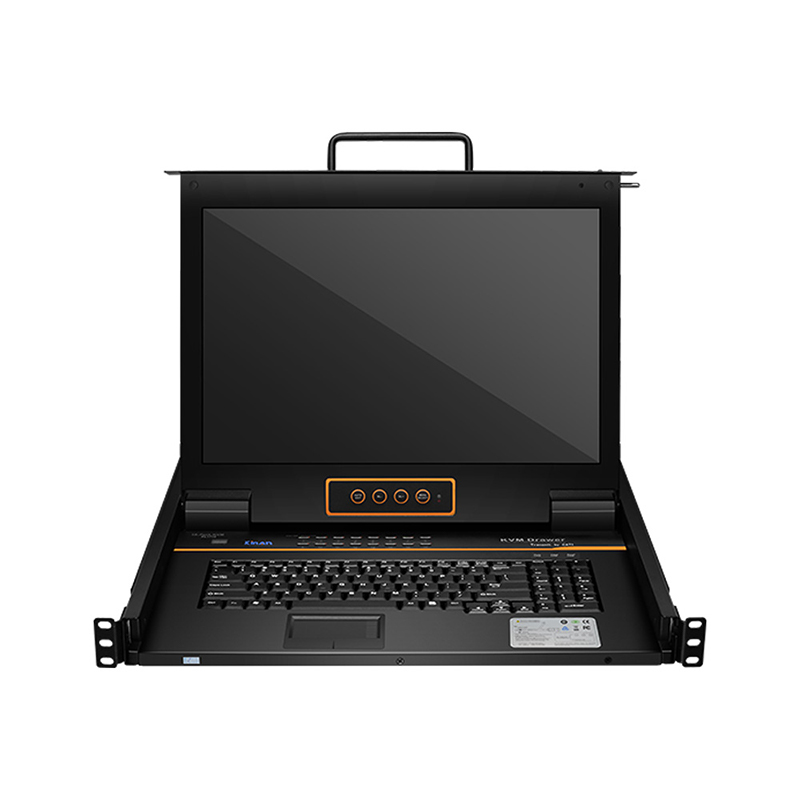

The Kinan’s XW1716 rack kvm with monitor features an integrated 17.3″ LCD monitor, keyboard and touchpad in only 1U height rack mountable drawer. It allows access and control up to 16 computers from a single console (keyboard, mouse and monitor). The number of connected computers can be increased up to 512 by daisy-chaining up to 31 XM0108 KVM Switches.

The XW1716 rack screen and keyboard has a built-in LCD monitor that supports resolution up to 1920 x 1080@60Hz. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD).

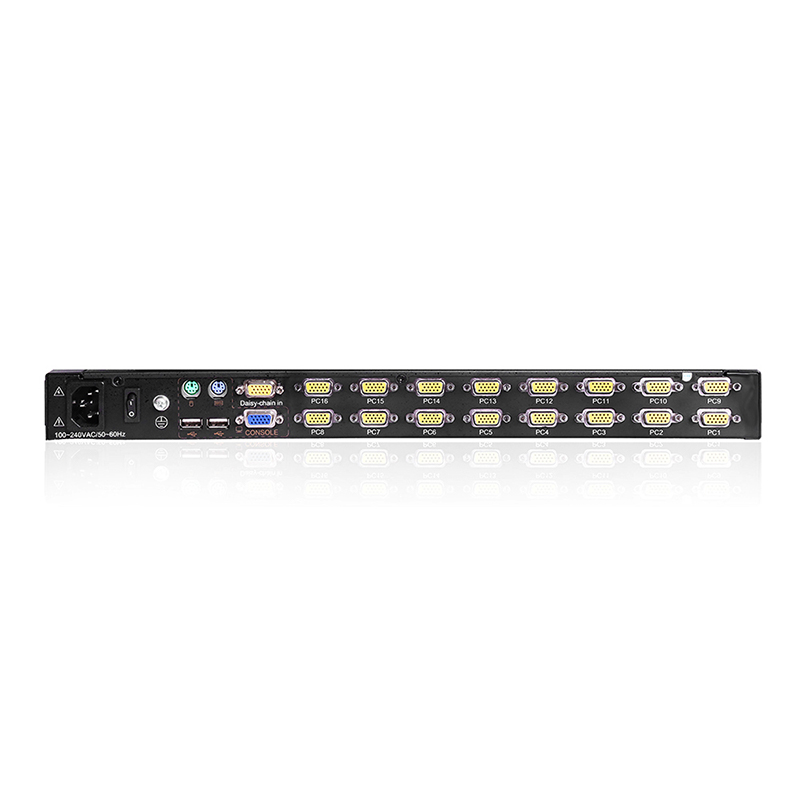

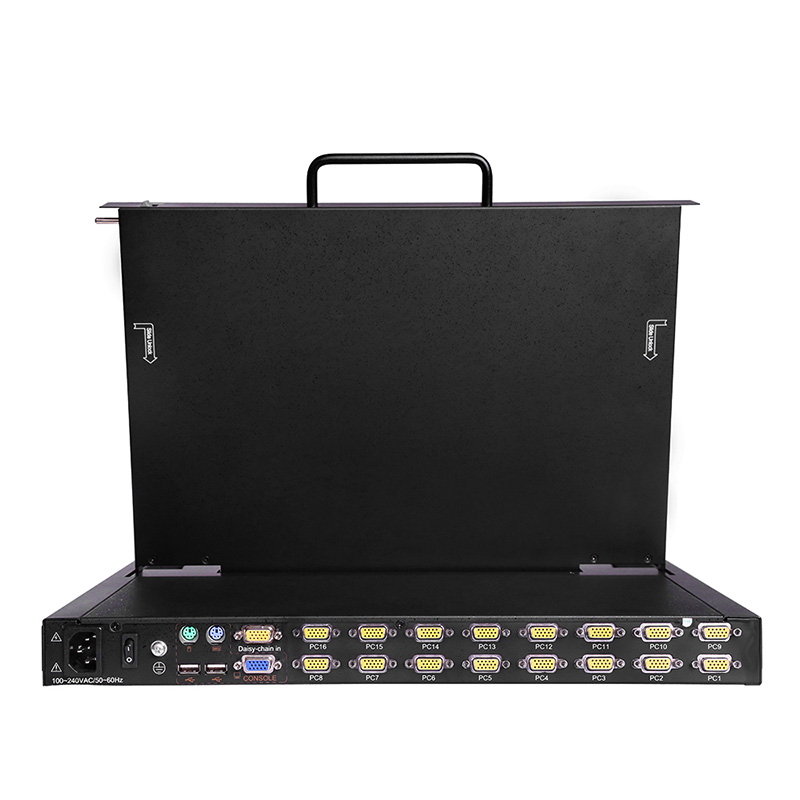

The LCD KVM switch supports USB connection for the computers. An extra HDB15 port allows an additional VGA monitor to be connected.

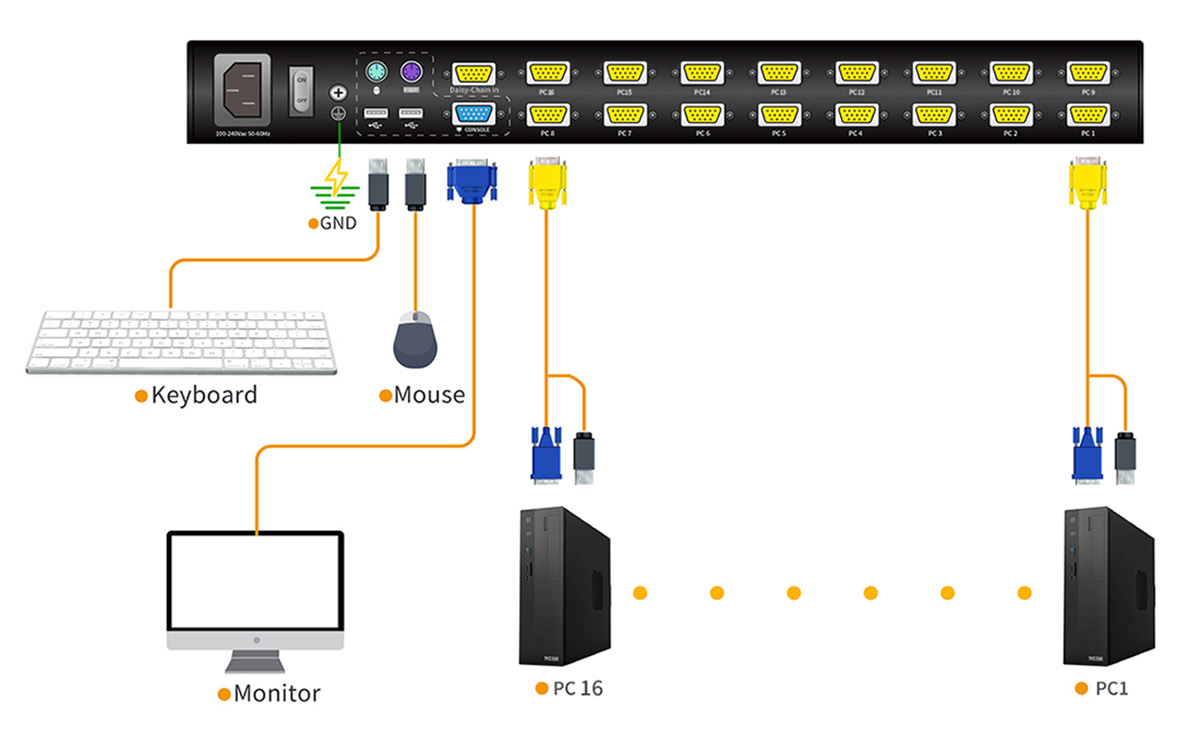

Diagram

Specification

Model		XW1716
Computer connections	Direct	16
Computer connections	Max	512
Port emulation	Keyboard, mouse	USB
LCD monitor	LCD model	FHD TFT
	View area	17.3″
	Optimum resolution	1920×1080@60Hz
	Display color	16.7 M
	Brightness	250cd/m² (T y p)
	Contrast ratio	800: 1(T y p)
	Pixel pitch(mm)	0.1989(H) × 0.1989(W)
Mouse	X/Y resolution	>1000 points /inch, (40 points/mm)
Mouse	Roll wheel	Supports scroll wheel function
Keyboard		99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Port selection		Front panel pushbuttons, hotkeys, OSD menu
Input power		100V- 240Vac, 50-60Hz, <1.5A
Power consumption		15W
Mounting distance		510-850mm (L=420mm)
Mounting distance		Mounting bracket can be customized for other mounting distance
Operating temperature		0—50 ℃
Store temperature		-20— 60 ℃
Humidity		0—80% RH, non-condensing
Net weight		11kg
Product dimension (W × D × H)		448mm×525.6mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
Optional power input		-36V— -72V DC
