16 Port USB HDMI® KVM Switch with An 18.5″ LCD Monitor

Model No.: LH1816

User-friendly Hardware: A USB HDMI KVM switch with an 18.5″ monitor and 16 ports.
Number of Computers: Support up to 16 computers from a single console.
High Resolution: The maxium resolution is 1920 x 1080 @60Hz.
Multiple Switching Methods: Allow users to switch computers easily via front panel LEDs, keyboard hotkey combination and on-screen-display (OSD) menu.
Standard HDMI Connection: Connect to a server or computer via standard HDMI connectors.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

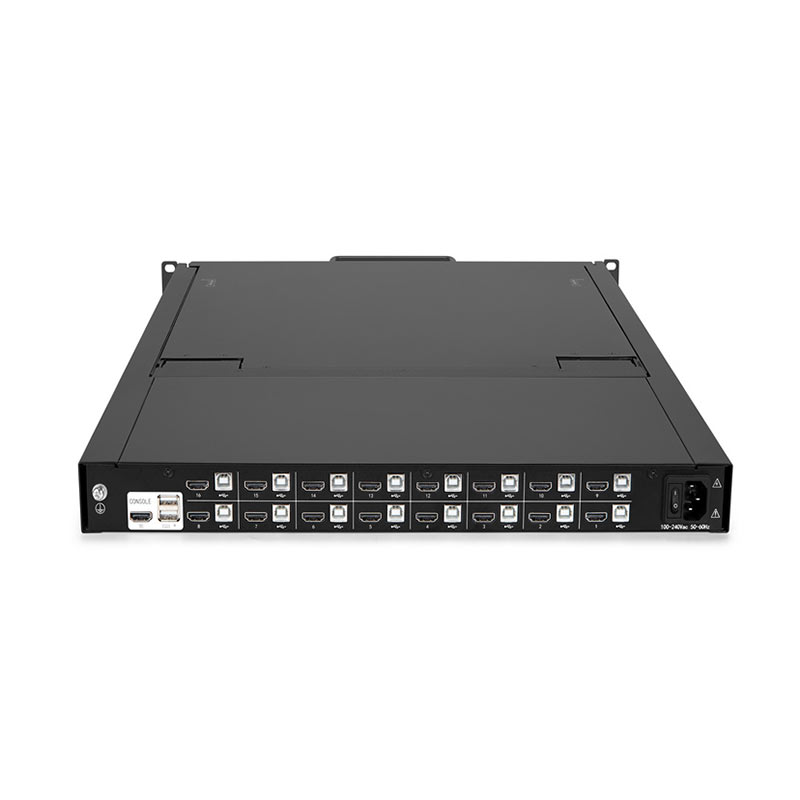

Kinan LH1816 is hardware with 16 USB and HDMI ports and a 18.5″ monitor used for controlling up to 16 computers simultaneously. The users can easily switch the computers via front panel buttons, hotkeys, and on-screen-display (OSD) menu. It allows the users to add or remove computers without need to power off the switch.

Also, it is easy to install in the cabinet with two mounting rails with its user-friendly design. The angle of the LCD module can reach up to 108 degrees, which can provide a comfortable viewing experience for users. And this switch occupies only 1U height space. The users just need to plug the cables into right ports following the user manual. This 16-port KVM switch is compatible with multiple uperating systems and no software is required.

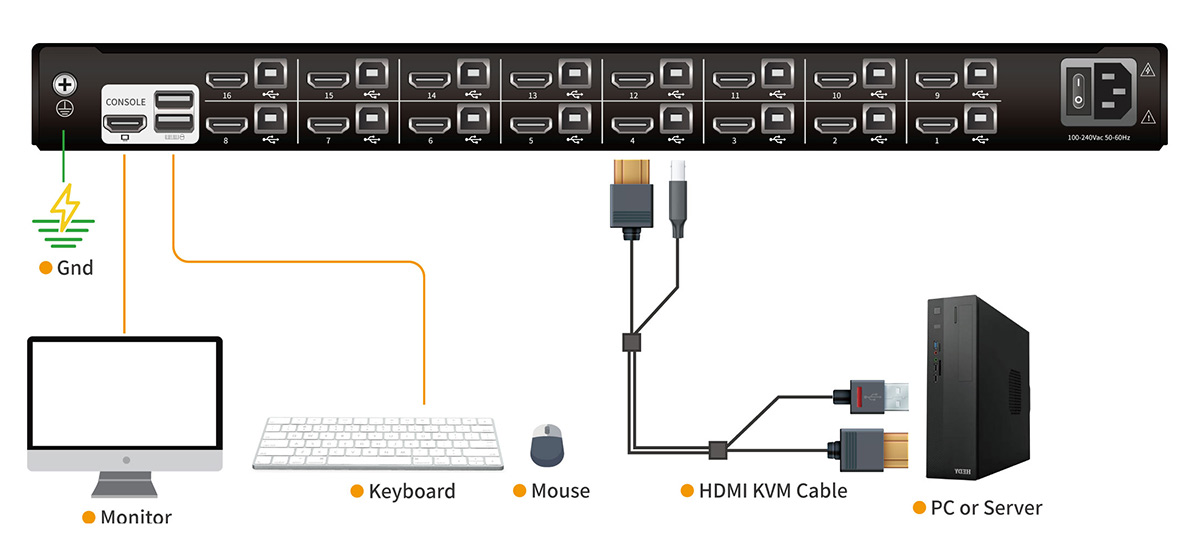

Diagram

Specification

Function		LH1816
Computer connections	Direct	16
Computer connections	Max	16
Port emulation	Keyboard, mouse	USB
LED monitor	LED model	FHD TFT
	View area	18.47″
	Optimum resolution	1920×1080@60Hz
	Display color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	1000 : 1 （ T y p ）
	Pixel pitch(mm)	0.213(H) × 0.213(W)
Mouse	X/Y resolution	>1000 points /inch, (40 points/mm)
Mouse	Roll wheel	Supports scroll wheel function
Keyboard		99 keys
Keyboard		(82 keys main keyboard +17 independent small numeric keyboard)
Port selection		pushbuttons, hotkeys, OSD menu
Input power		100V- 240Vac, 50-60Hz, <1.5A
Power consumption		30W
Mounting distance		686-770mm ( L=262mm)
Mounting distance		Mounting bracket can be customized for other mounting distance
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non-condensing
Net weight		12kg
Product dimension (W × D × H)		448mm×560mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
