16-Port 18.5″ VGA LCD KVM Switch

Model No.: XL1816

User-friendly Hardware: Integrated KVM Console with 18.5″ LCD monitor.
Number of Computers: A single console controls up to 16 computers.
High Resolution: Resolution is up to 1366 x 768 @60Hz.
Convenient Computer Switching: Front panel LEDs, keyboard hotkey combination or on-screen-display (OSD) menu.
Daisy-chain Connection: Support daisy-chain connection and control up to 512 computers.
Comfortable View: The Flexible LCD module can be opened up to 108 degrees.
Wide Compatibility: Compatible with Windows, Sun, Unix and Linux.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

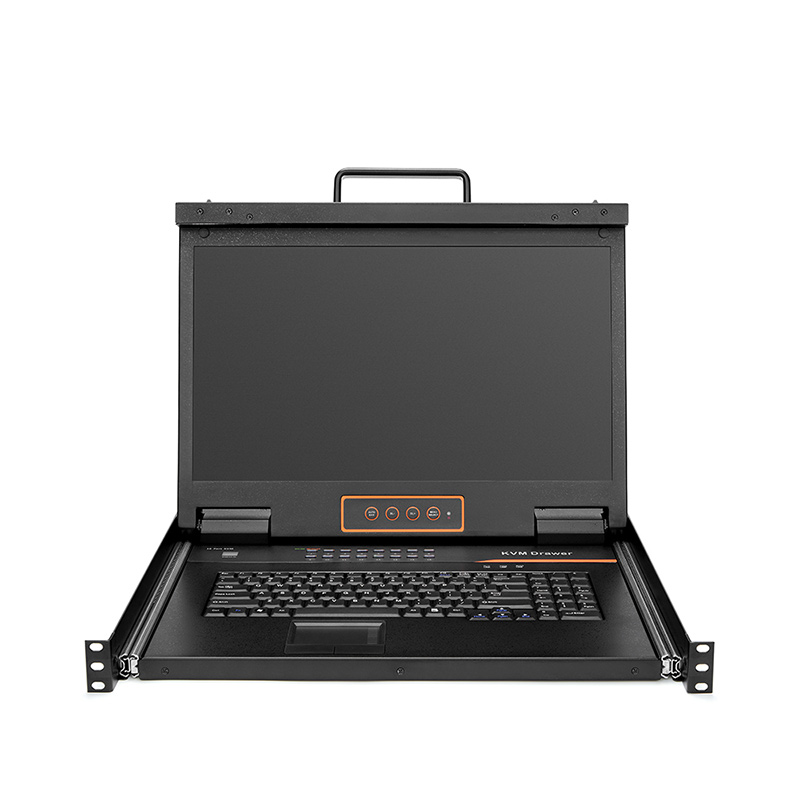

The Kinan XL1816 LCD KVM Switch features an integrated 18.5″ LCD screen, keyboard and touchpad in a single console that occupies only 1U of rack space. It allows access and control up to 16 computers from a single console (keyboard, mouse and monitor). The number of connected computers can be increased up to 512 by daisy-chaining up to 31 XM0108 KVM Switches.

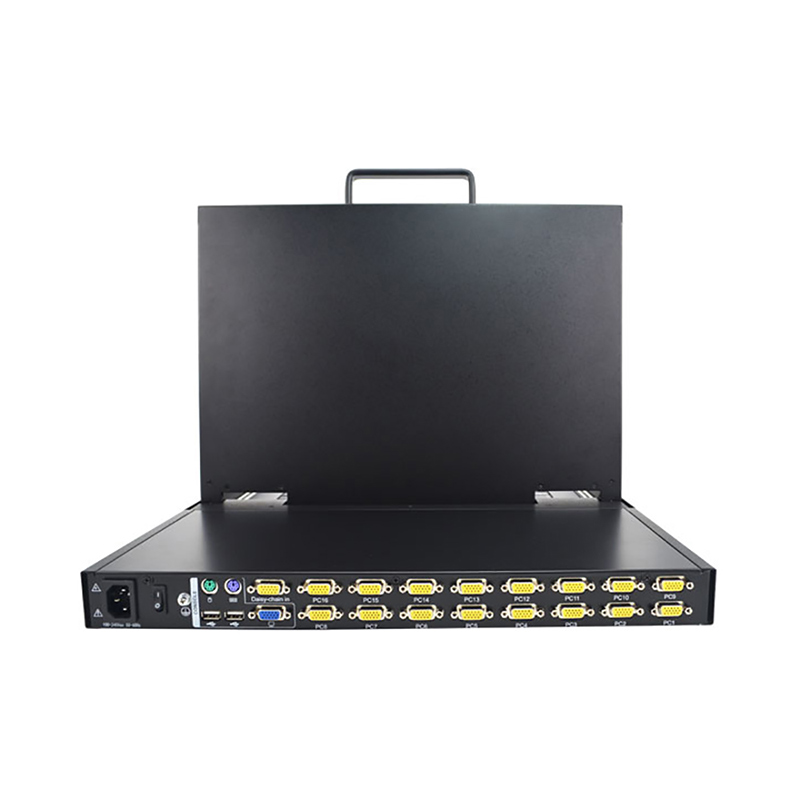

The XL1816 LCD KVM Switch has a built-in LCD monitor that supports resolution up to 1366×768@60Hz. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD). The KVM switch supports both USB and PS/2 connections for the computers. An extra HDB15 port allows an additional VGA monitor to be connected.

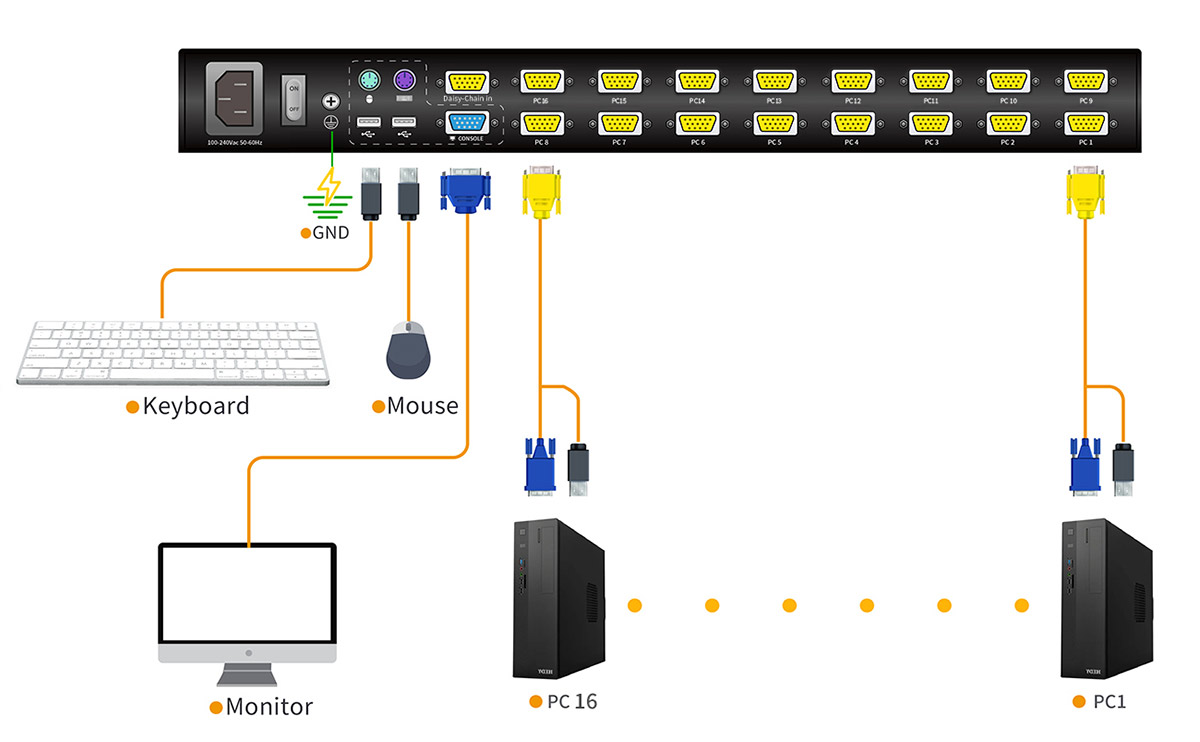

Diagram

Specification

Model		XL1816
Computer connections	Direct	16
Computer connections	Max	512
Port emulation	Keyboard, mouse	USB
LED monitor	LED model	WXGA TFT
	View area	18.51”
	Optimum resolution	1366×768@60Hz
	Display color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	1000 : 1 （ T y p ）
	Pixel pitch(mm)	0.300(H) × 0.300(W)
Mouse	X/Y resolution	>1000 points /inch, (40 points/mm)
Mouse	Roll wheel	Supports scroll wheel function
Keyboard		99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Port selection		pushbuttons, hotkeys, OSD menu
Input power		100V- 240Vac, 50-60Hz, <1.5A
Power consumption		18W
Mounting distance		686-770mm (L=262mm)
Mounting distance		Mounting bracket can be customized for other mounting distance
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non-condensing
Net weight		12kg
Product dimension (W × D × H)		448mm×560mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
