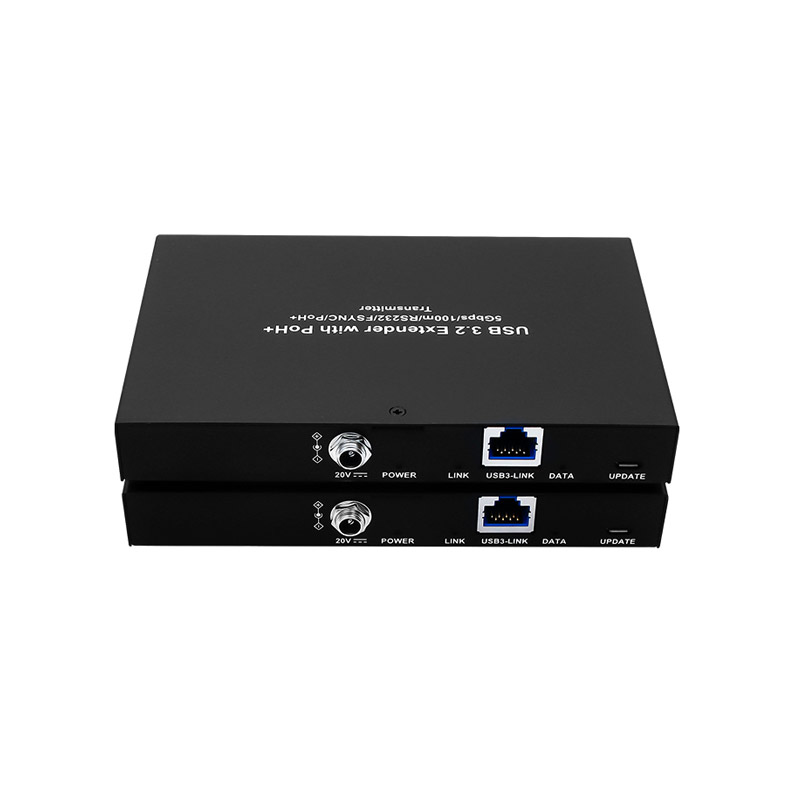

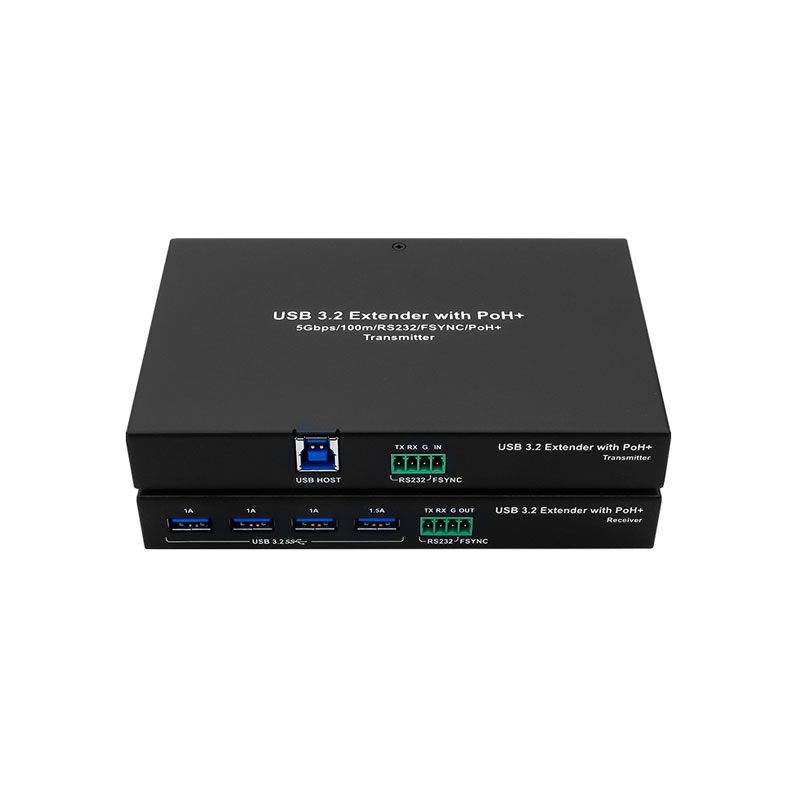

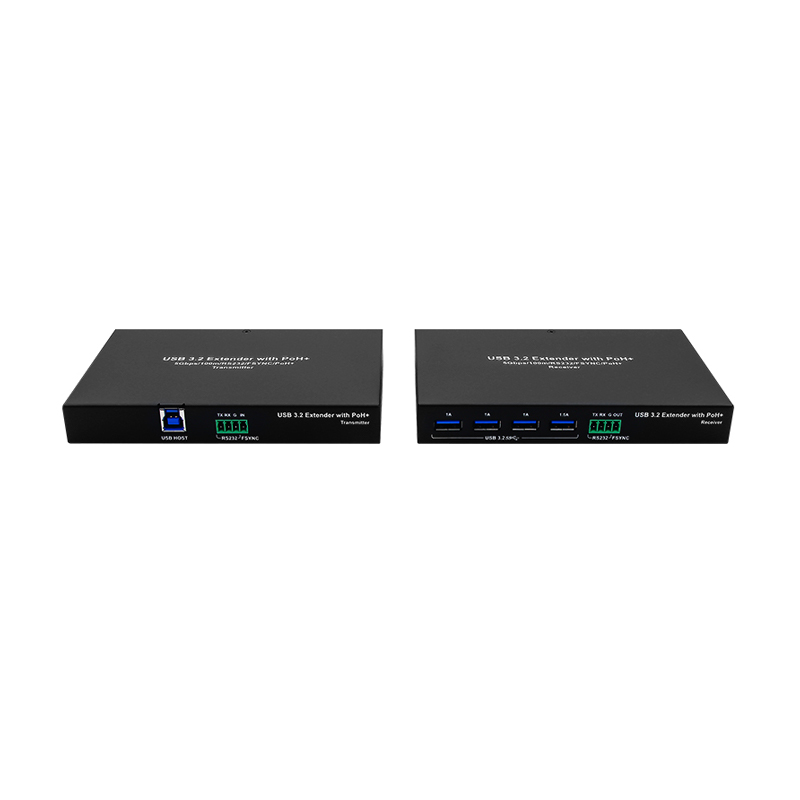

100m USB 3.2&3.0 Extender

Model No.: KEU200

Fast Data Transmission: The transmitting rata is up to 5Gbit/s.
Two-way PoH+Function: Use one power supply to control the transmitter and the recevier
High Bandwidth: Support 4k Devices
User-friendly Design: Support hot plugging- Use the extender directly by plugging cables
Wide Compatibility: Support multiple operating systems
Boost Connectivity: Built-in 4-port USB hub in the receiver (USB3.2/USB3.0)
Pure Hardware Architecture: compatible with Control/Bulk/Interrupt/Isochronous transmission protocols.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

Kinan USB 3.0 extender supports USB 3.2 Gen 1 standard with up to 5Gbit/s USB data transmission rate, and is backward compatible with USB 3.0, USB 2.0 and USB1.1 specifications.

With high transmission speed, it provides high-quality connection with USB standard. This USB extender can extend the USB 3.2 & USB 3.0 data up to 100m/330ft via a single Cat 6a/7 F/FTP or U/FTP cable. It has a built-in 4-port USB hub in the receiver, which can be connected with multiple USB devices.

With two-way PoH + function, the USB extender can only need one power supply to be connected to the transmitter or receiver to power both units, which is especially suitable for scenarios where the receiver can’t be connected to a power supply (such as in outdoor monitoring scenario).

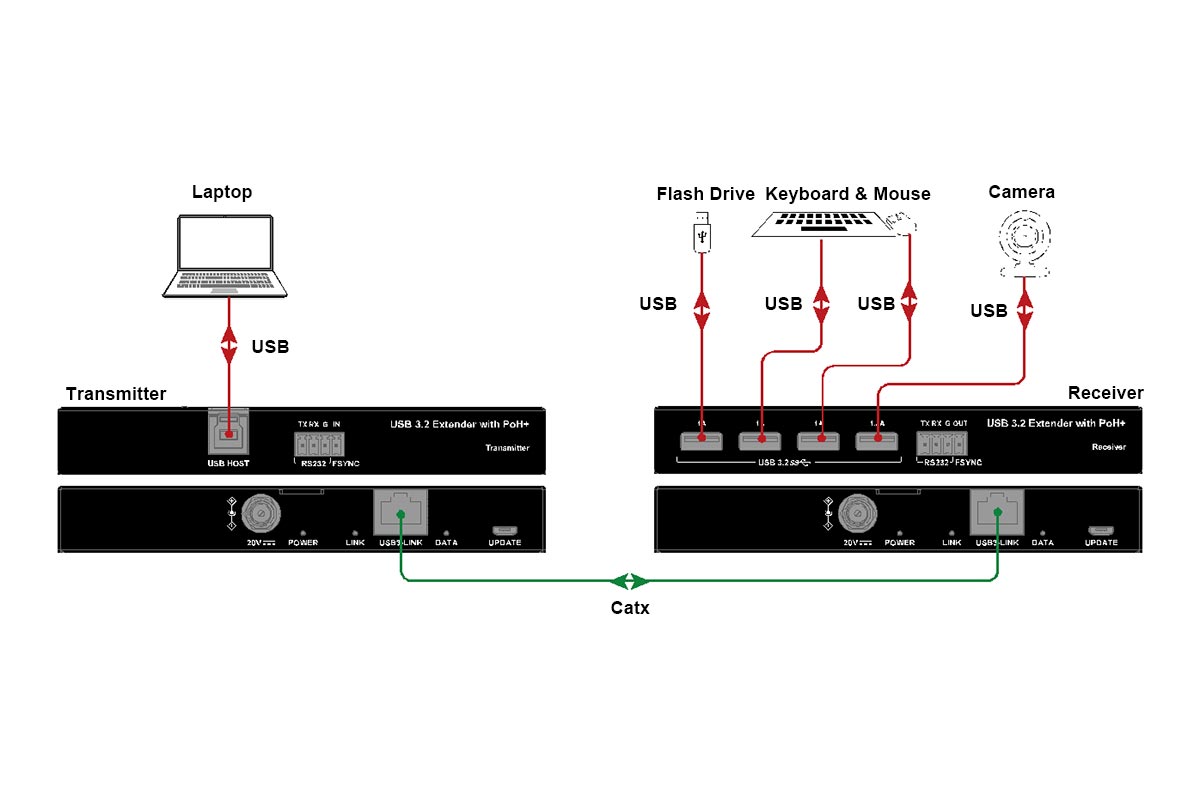

Diagram

Specification

Technical
Input/Output Port	Transmitter	1 x USB HOST (USB Type-B)
		1 x RS232 & FSYNC (3.5mm, 4-Pin Phoenix Connector)
		1 X USB3-LINK (RJ45)
		1 x POWER
		1 x FW (Micro-USB)
	Receiver	4 x USB DEVICE (USB Type-A)
		1 x RS232 & FSYNC (3.5mm, 4-Pin Phoenix Connector)
		1 X USB3-LINK (RJ45)
		1 x POWER
		1 x FW (Micro-USB)
USB Standard	USB 3.2 Gen1, and backward compatible with USB 3.0, USB 2.0, and USB 1.1 standards
Data Rate	Up to 5Gbit/s
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Humidity	10% to 90%, non-condensing
ESD Protection	Human-body Model:±8kV (Air-gap discharge)/±4kV (Contact discharge)
Power Supply	20V/3A
Power Consumption (Max)	31.28W (Pair, USB fully loaded)
Device Dimension(W x H x D)	Transmitter/Receiver: 150mm x 20.5mm x 100mm / 5.9” x 0.81” x 3.94”
Product Weight	Transmitter: 0.35kg/0.77lb, Receiver: 0.34kg/0.75lb
