1-Local / 2-Remote Access 8 Port Cat5 KVM over IP Switch

Model No.: HT1208

High Resolution: The resolution of this remote access KVM switch is up to 1920×1080@60Hz.
Space-saving Design: Rack-mountable in 1U system rack.
Stable Power: Dual power supply redundancy.
Remote Control: Supports 1 local user and 2 remote user, port share mode allows local and remote users to gain access to a server simultaneously.
Diverse Servers: Supports servers with VGA/DVI/HDMI/DP port.
Flexible Settings: Configurable user and group permissions for server access and control.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

Kinan HT1208 1-Local/2-Remote Access Cat5 8 port KVM over IP Switch is an ideal solution for your IT systems, no software needed, no complicated installation procedures, and no compatibility issues.

This remote access KVM switch uses TCP/IP communications protocol, it can be accessed by its IP address through IE browser or a windows-based client from anywhere on the LAN, WAN or Internet. The KVM Switch allows 1 local user and 2 remote users to monitor and access 8 servers from a single console. Connect servers with Cat 5e/6 cable, it supports servers with VGA, DVI, HDMI, and DP port. The 8 port KVM over IP switch can be installed in a 1U rack.

It allows for centralized management on the computer/server from anywhere, a Windows client is available for remote access. In addition, Kinan also offers an IP receiver for remote access to the HT1208 directly, it supports freely switching between local and remote computer, no need for remote access to the device via the web-based browser.

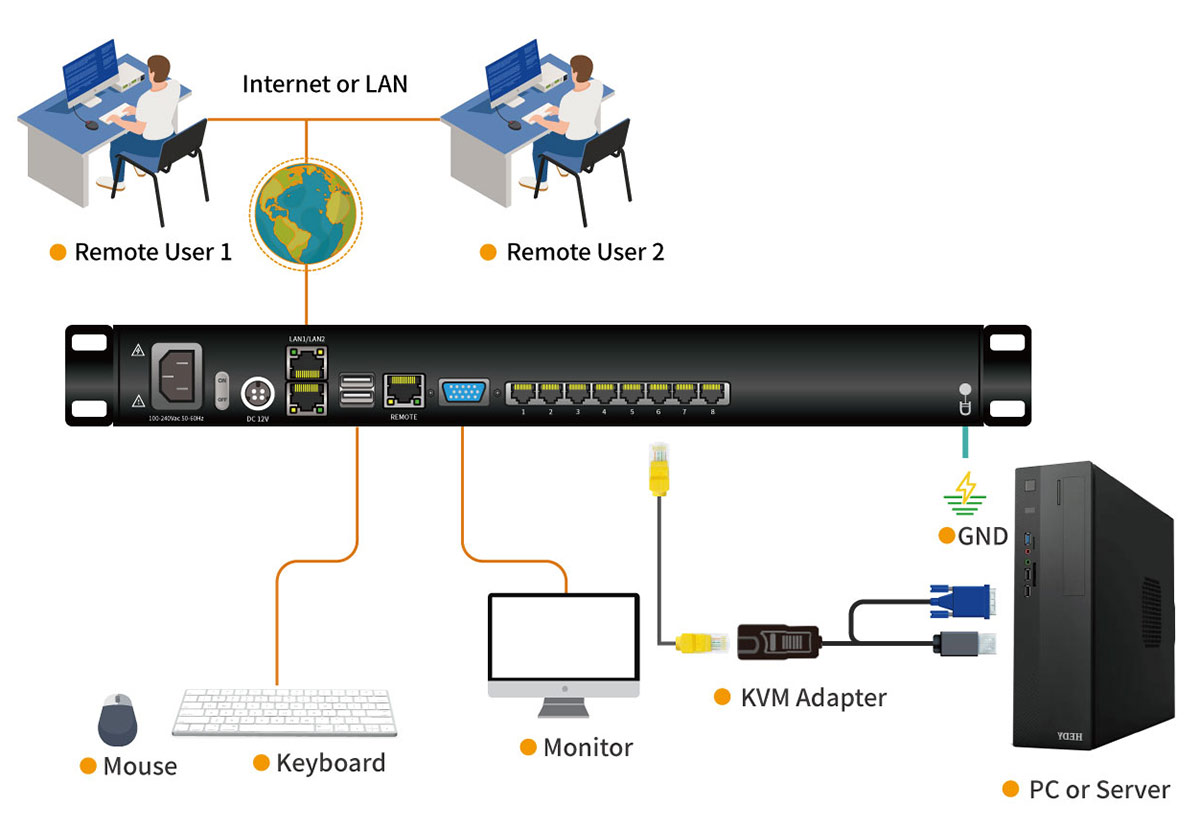

Diagram

Specification

Model			HT1208
Computer Connection			8
Port selection			8
Port selection			Pushbutton, UI, Web, Hotkey
Connector	Console	Keyboard	2x USB TYPE A
		Mouse
		Monitor	1-HDB-15 Female(blue)
	KVM Port (RJ-45)		8
	Upgrading switch		1x RJ11 Female
	Power		3-Prong AC socket
Switch	Port Selection		8
	Reset		1x touch-button
	Upgrading switch		1x toggle switch
	Power		1x rocker switch
LEDs	Online (Green)		8
	Selected (Orange)		8
	Power		1(blue)
	Cascade display		2x 7- Segment (orange)
	Remote control		KVM control (ActiveX control)
Remote	Management way		Web
	Security		DES encryption
	Resolution		1920×1080@60Hz
I/R Value			100V-240Vac, 50-60Hz, <1.5A
Power Consumption			17W
Environment Requirements	Operating Temperature		0 — 50 ℃
	Store Temperature		-20— 60 ℃
	Humidity		0—80%RH, Non-condensing
Physical Features	Material		Metal
	Weight		3kg
	Dimension		433x171x44.5mm
