Home » KVM Over IP Switches » 1-Local / 1-Remote Access 8 Port CAT5 KVM over IP Switch

1-Local / 1-Remote Access 8 Port CAT5 KVM over IP Switch

Model No.: HT1108

High Resolution: Both local and remote console support up to 1920 x 1080@60Hz.
Space-saving Design: This KVM over IP switch accupies only 1U rack height in a cabinet.
Power Supply Redundancy: It is equipped with dual power supply to ensure normal operation.
Synchronous Operation: 1 local and 1 remote users are allows to access and control a selected server simultaneously.
Support Diverse Servers: VGA/DVI/HDMI/DP-port servers can be connected to this switch.
Flexible Settings: Configurable user and group permissions for server access and control.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

The HT1108 1-Local/1-Remote Access Cat5 8 port KVM over IP Switch is an ideal device for your centralized management system. It allows 1 local and 1 remote user to control up to 8 computers simultaneously. The TCP/IP communications protocol allows HT1108 to be accessed by its IP address through IE browser or a windows-based client from anywhere on the LAN, WAN or Internet. It is easy to install without needed software, complicated installation procedures, and compatibility issues.

The HT1108 uses TCP/IP communications protocol, it can be accessed by its IP address through IE browser or a windows-based client from anywhere on the LAN, WAN or Internet. The KVM Switch allows 1 local and 1 remote user to monitor and access 8 servers from a single console.

Connect servers with Cat 5e/6 cable, it supports servers with VGA, DVI, HDMI, and DP port. The 8 port KVM over IP switch can be installed in a 1U rack space.

The HT1108 allows for centralized management on the computer/server from anywhere, a Windows client is available for remote access. In addition, Kinan also offers an IP receiver for remote access to the HT1108 directly, it supports freely switching between local and remote computer, no need for remote access to the device via the web-based browser.

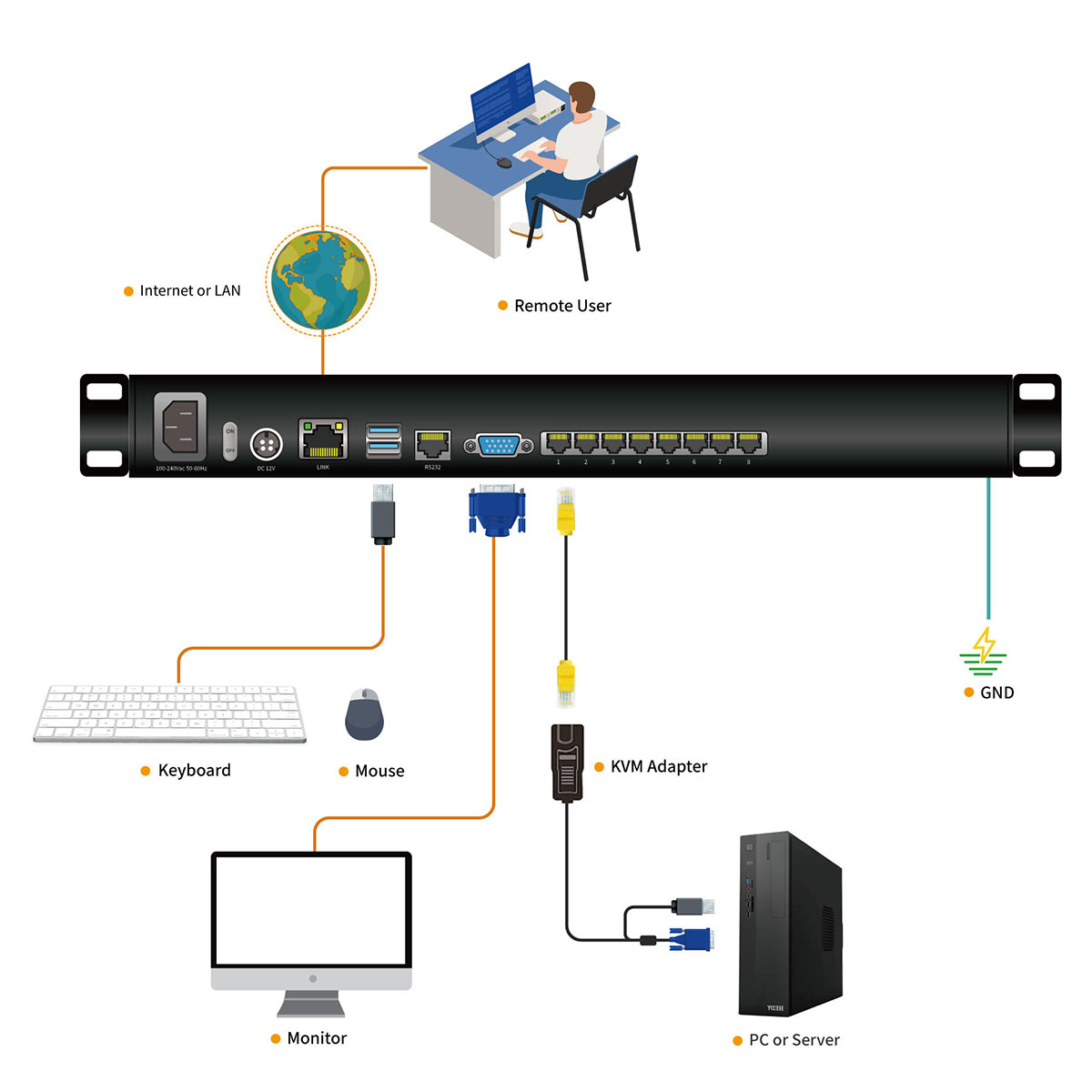

Diagram

Specification

Model			HT1108
Computer Connection			8
Port selection			8
Port selection			Pushbutton, UI, Web, Hotkey
Connector	Console	Keyboard	2x USB TYPE A
		Mouse
		Monitor	1-HDB-15 Female(blue)
	KVM Port (RJ-45)		8
	Upgrading switch		1x RJ11 Female
	Power		3-Prong AC socket
Switch	Port Selection		8
	Reset		1x touch-button
	Upgrading switch		1x toggle switch
	Power		1x rocker switch
LEDs	Online (Green)		8
	Selected (Orange)		8
	Power		1(blue)
	Cascade display		2x 7- Segment (orange)
	Remote control		KVM control (ActiveX control)
Remote	Management way		Web
	Security		DES encryption
	Resolution		1920×1080@60Hz
I/R Value			100V-240Vac, 50-60Hz, <1.5A
Power Consumption			8W
Environment Requirements	Operating Temperature		0 — 50 ℃
	Store Temperature		-20— 60 ℃
	Humidity		0—80%RH, Non-condensing
Physical Features	Material		Metal
	Weight		2.9kg
	Dimension		433x171x44.5mm
