Home » KVM Over IP Switches » 1-Local / 1-Remote Access 32 Port CAT5 KVM over IP Switch

1-Local / 1-Remote Access 32 Port CAT5 KVM over IP Switch

Model No.: HT1132

High Video Resolution: Resolution is up to 1920×1080@60Hz for local and remote console.
Space-saving Design: Rack-mountable in 1U system rack.
Power Supply Redundancy:Ensure the normal operation of the KVM over IP switch.
Synchronous Operation: Support 1 local and 1 remote user to control servers simultaneously.
Support Diverse Servers: Support servers with VGA/DVI/HDMI/DP port.
Flexible Settings: Configurable user and group permissions for server access and control.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

The HT1132 1-Local/1-Remote Access Cat5 32 port KVM over IP is an ideal solution for your IT systems, no software needed, no complicated installation procedures, and no compatibility issues.

Boasting TCP/IP communications protocol, HT1132 kvm over ethernet can be accessed by its IP address through IE browser or a windows-based client from anywhere on the LAN, WAN or Internet. The IP KVM 32 port allows 1 local and 1 remote user to monitor and access 32 servers from a single kvm over ip.

Connect servers with Cat 5e/6 cable, it supports servers with VGA, DVI, HDMI, and DP port. The 32-port remote ip kvm can be installed in a 1U rack.

The HT1132 allows for centralized management on the computer/server from anywhere, a Windows client is available for remote access. In addition, Kinan also offers an IP receiver for remote access to the HT1132 directly, which supports freely switching between local and remote computer, no need for remote access to the device via the web-based browser.

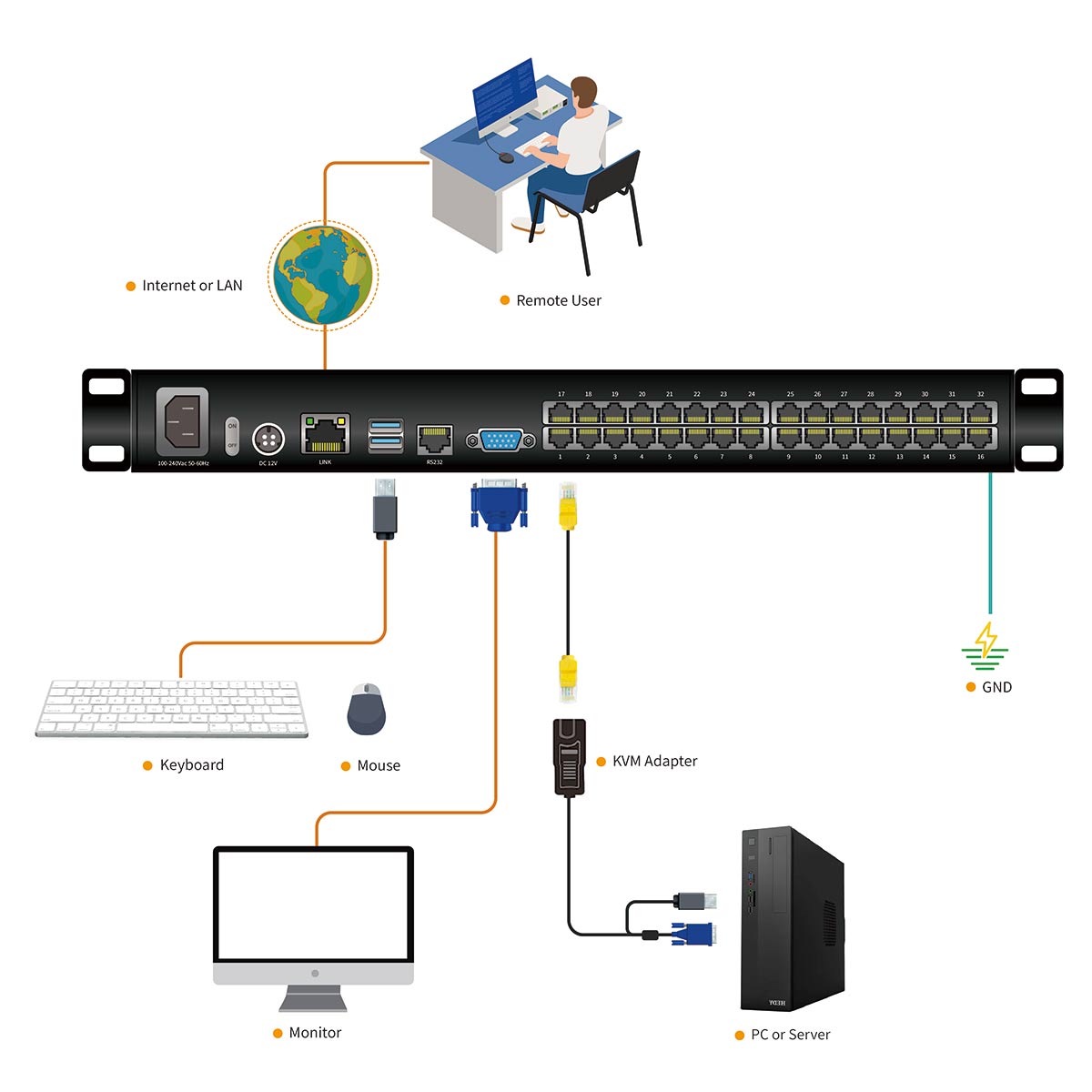

Diagram

Specification

Model			HT1116
Computer Connection			16
Port selection			16
Port selection			Pushbutton, UI, Web, Hotkey
Connector	Console	Keyboard	2x USB TYPE A
		Mouse
		Monitor	1-HDB-15 Female(blue)
	KVM Port (RJ-45)		16
	Upgrading switch		1x RJ11 Female
	Power		3-Prong AC socket
Switch	Port Selection		16
	Reset		1x touch-button
	Upgrading switch		1x toggle switch
	Power		1x rocker switch
LEDs	Online (Green)		16
	Selected (Orange)		16
	Power		1(blue)
	Cascade display		2x 7- Segment (orange)
	Remote control		KVM control (ActiveX control)
Remote	Management way		Web
	Security		DES encryption
	Resolution		1920×1080@60Hz
I/R Value			100V-240Vac, 50-60Hz, <1.5A
Power Consumption			9W
Environment Requirements	Operating Temperature		0 — 50 ℃
	Store Temperature		-20— 60 ℃
	Humidity		0—80%RH, Non-condensing
Physical Features	Material		Metal
	Weight		2.9kg
	Dimension		433x171x44.5mm
