싱글 레일 19인치 16포트 USB VGA LCD KVM 스위치

모델 번호: KXL-1916

  • LCD KVM 스위치로 16대의 컴퓨터 제어 가능
  • 19인치 1U 랙마운팅 가능
  • 최대 해상도 1280 x 1024 지원
  • Windows, Linux, Mac, Sun등 멀티플랫폼 지원
  • 전면 선택 버튼, 핫키, OSD를 이용한 포트 선택
  • USB 키보드 / 마우스, VGA 콘솔 포트 제공
CE
FCC
UKCA
RoHS
UL
특징
세부 사항
사양
종범
다운로드
관련 상품

개요

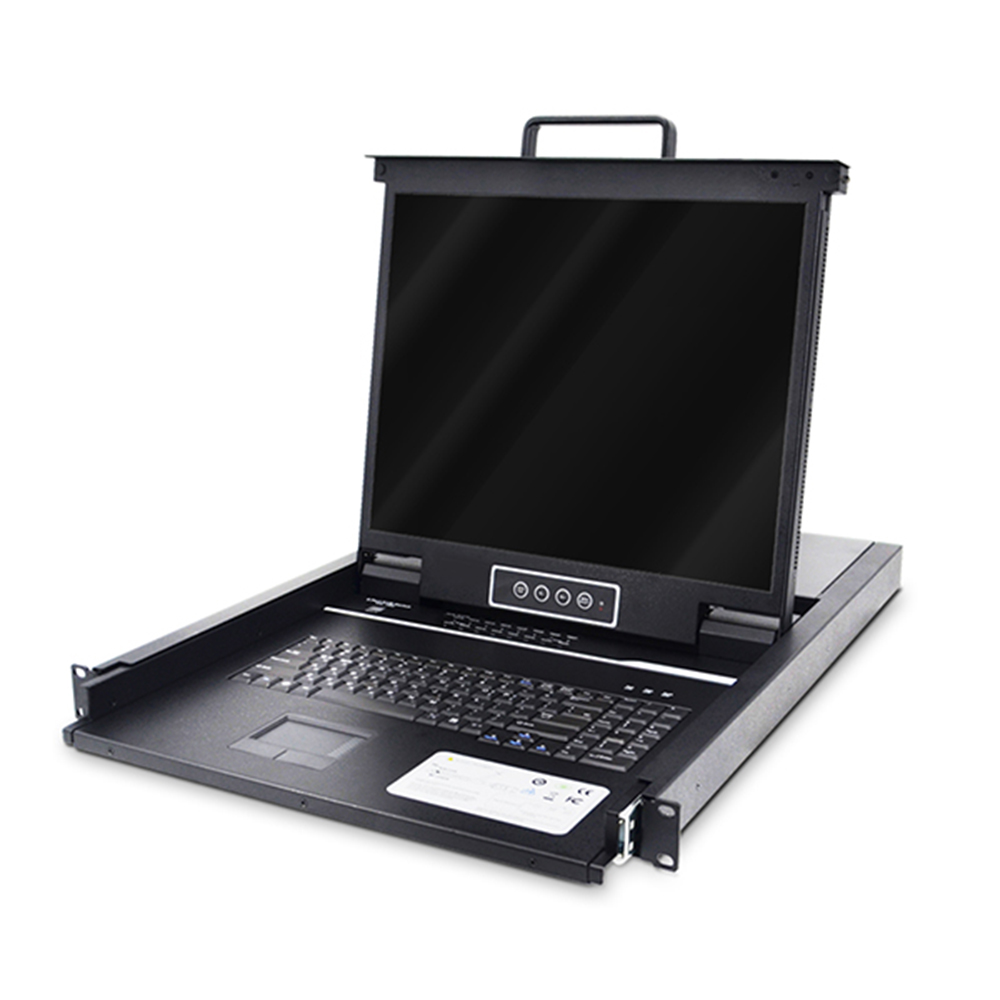

Kinan XL1916 LCD KVM switch is outstanding for its 19″ widescreen monitor, keyboard, and touchpad in a singal console that occupies only 1U height space. With 16 ports, it allows users to control up to 16 computers or servers from a single console (keyboard, mouse and monitor). Additionally, the daisy-chain connection allows this switch to support up to 512 computers. Its built-in LCD monitor supports resolution up to 1280 x 1024@60Hz.

This switch is designed with a sigle rail, which allows users to install it in the cabinet, and the height can be adjusted according to the client’s requirement. And the LCD module can be opened up to 108 degrees so that the users can have an enjoyable viewing experience.

Hardware Features

  • LCD KVM switch occupies 1 U height with a 19″ LCD monitor,  a keyboard/touchpad and 16 port KVM switch

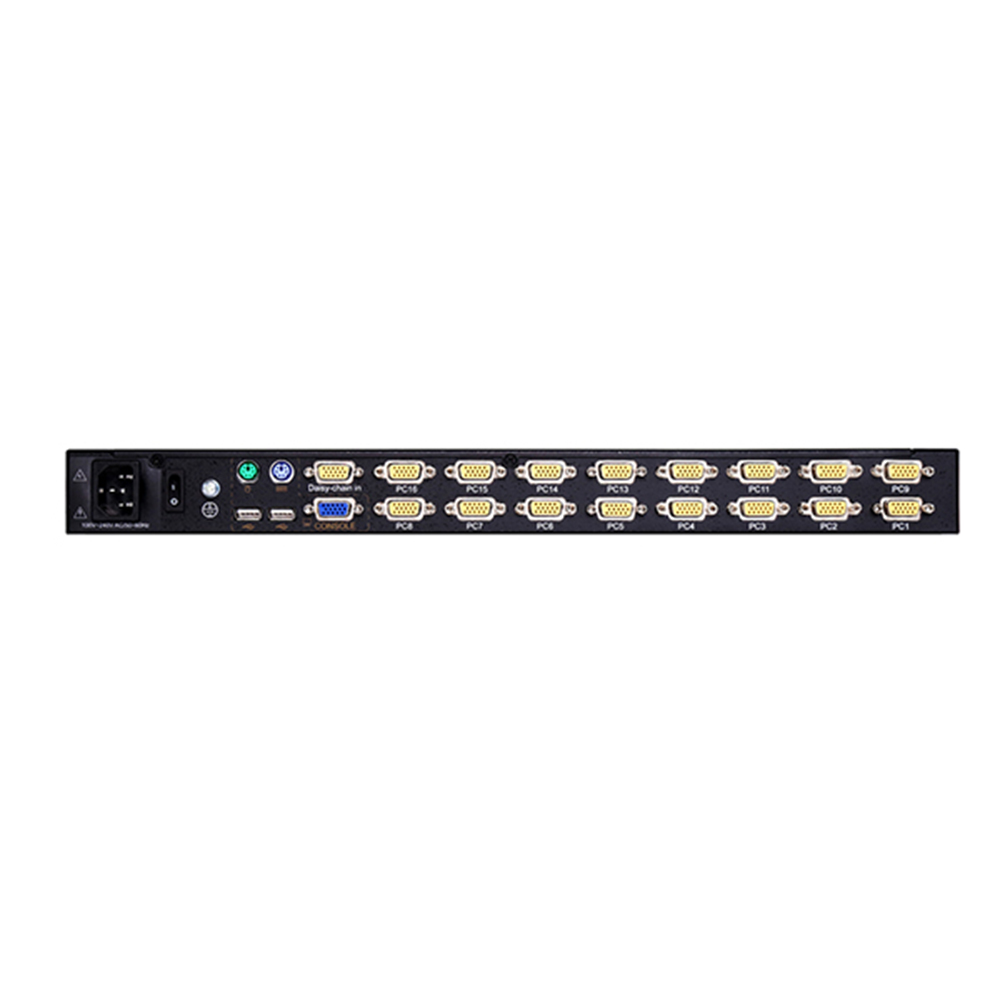

  • Standard VGA connection – Connect to a server or computer via standard VGA connectors
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing experience
  • Support computers with USB and PS/2 keyboard and mouse

Hardware Features

  • LCD KVM switch occupies 1 U height with a 19″ LCD monitor,  a keyboard/touchpad and 16 port KVM switch
  • Standard VGA connection – Connect to a server or computer via standard VGA connectors
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing experience
  • Support computers with USB and PS/2 keyboard and mouse

High Resolution

  • 19″ TFT LCD KVM monitor with highlight, high definition and high resolution
  • Optimum resolution is up to 1280 x 1024 @60Hz

High Resolution

  • 19″ TFT LCD KVM monitor with highlight, high definition and high resolution
  • Optimum resolution is up to 1280 x 1024 @60Hz

Daisy-Chain Connection

  • By daisy-chaining up to another 31 switches, as many as 512 servers can be controlled from a single console

Daisy-Chain Connection

  • By daisy-chaining up to another 31 switches, as many as 512 servers can be controlled from a single console

Security

  • Two level password security – only authorized users view and control computers
  • Supports one administrator and four user accounts with a separate profile for each

Security

  • Two level password security – only authorized users view and control computers
  • Supports one administrator and four user accounts with a separate profile for each

Wide Compatibility

  • Supports multiple platforms including Compatible with Windows, Sun, Unix and Linux
  • Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Wide Compatibility

  • Supports multiple platforms including Compatible with Windows, Sun, Unix and Linux
  • Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Keyboard

  • Support multiple languages – English, Russian, German, French, UK and Spanish, etc.
  • Full size 99 keys keyboard with integrated number pad

Keyboard

  • Support multiple languages – English, Russian, German, French, UK and Spanish, etc.
  • Full size 99 keys keyboard with integrated number pad

세부 사항

사양

Function XL1916
Computer connections Direct 16
Max 512
Port emulation Keyboard, mouse USB
LED monitor LED model SXGA TFT
View area 19″
Optimum resolution 1280×1024@60Hz
Display color 16.7 M
Brightness 250cd/m²（ T y p ）
Contrast ratio 1000 : 1 （ T y p ）
Pixel pitch(mm) 0.2928(H) × 0.2928(W)
Mouse X/Y resolution >1000 points /inch,( 40 points/mm )
Roll wheel Supports scroll wheel function
Keyboard 99 keys
(82 keys main keyboard +17 independent small numeric keyboard)
Port selection Front panel pushbuttons, hotkeys, OSD menu
Input power 100V- 240Vac , 50-60Hz , <1.5A
Power consumption 23W
Mounting distance 716~825mm ( L=262mm)
Mounting rails can be customized for other mounting distance.
Operating temperature 0—50 ℃
Store temperature -20—60 ℃
Humidity 0—80% RH, non condensing
Net weight 13.5kg
Product dimension (W × D × H) 448mm×605mm×42.5mm
Package dimension (W × D × H) 765mm×615mm×185mm
Optional power input -36V— -72V DC

패키지 내용물

  • 1x LCD KVM 스위치 (KXL-1916)
  • 1x 전원 코드 (지역별)
  • 1x 빠른 시작 가이드
  • 2x 장착 레일
  • 16x USB+VGA KVM 케이블 (1.8m/6ft)
