32포트 숏 뎁스 CAT5 18.5인치 와이드스크린 LCD KVM 스위치

모델 번호: KLC-2832

  • LED KVM 스위치로 32대의 컴퓨터 제어 가능
  • 19인치 1U 랙마운팅 가능
  • 최대 해상도 1920 x 1080 Full HD 지원
  • Windows, Linux, Mac, Sun등 멀티플랫폼 지원
  • 전면 선택 버튼, 핫키, OSD를 이용한 포트 선택
  • USB 키보드 / 마우스, VGA 콘솔 포트 제공
UKCA
FCC
CE
RoHS
특징
세부 사항
사양
종범
다운로드
관련 상품

개요

Kinan’s LC2832 integrates an 18.5” LCD monitor, keyboard/touchpad and a Cat5 KVM switch in a 1U rack mount housing. The LC2832 allows access and control up to 32 computers from a single console (keyboard, mouse, and monitor). When cascading to another 31 KVM Switches, a single LC2832 can control up to 1024 computers.

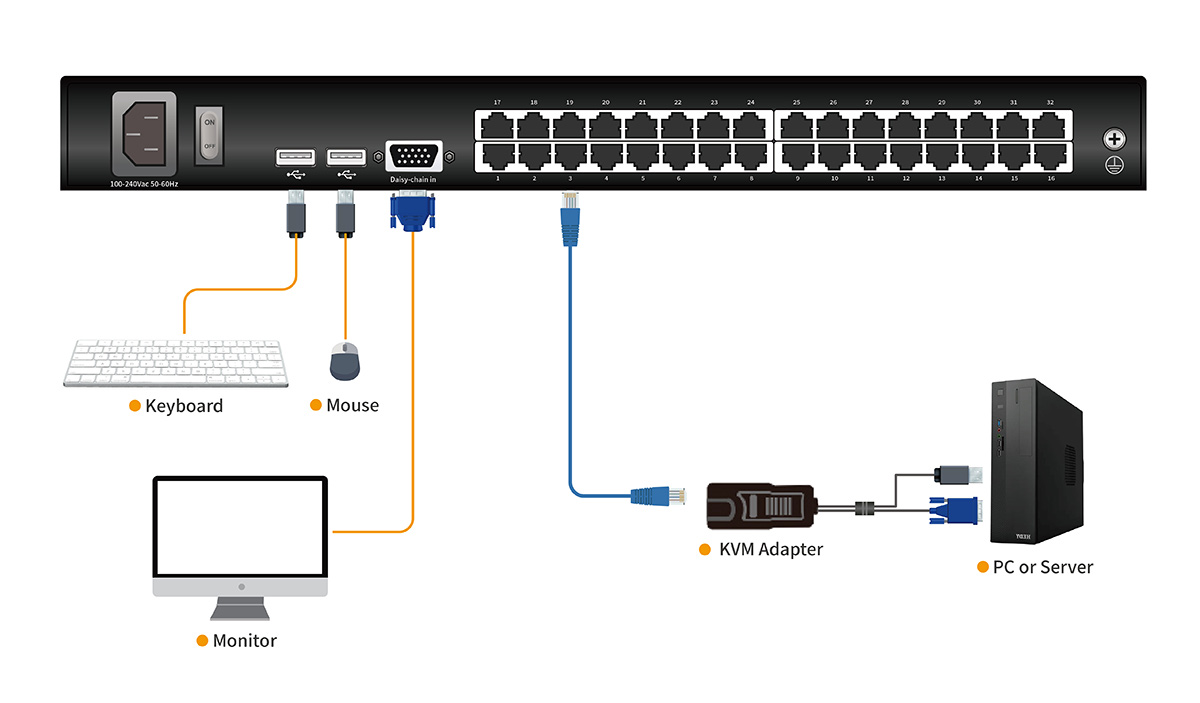

The LC2832 has a built-in 18.5” LCD monitor that supports resolution up to 1920×1080@60Hz. For added convenience, two USB ports and one VGA port are included in the rear of the KVM unit to allow for connection of keyboard/mouse and external display.

With the LC2832, you can switch easily between computers by front panel pushbuttons, OSD (on-screen display) or keyboard hotkey command. To enhance security, the LC2832 provides two-level password security which prevents unauthorized users to viewing and controlling the connected computers. With RJ-45 connectors and Cat5e/6 cables connected to computers, the LC2832 helps extend the distance to the servers up to 100m.

Hardware Features

  • Integrated kvm console switch with 18.5’’ LCD monitor, keyboard/touchpad and 32 port CAT5 kvm in a 1U height console
  • Standard Cat5 connection-Connect to a server or computer via standard RJ-45 connectors and Cat5e/6 cables
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
  • Support computers with USB keyboard and mouse

Hardware Features

  • Integrated kvm console switch with 18.5’’ LCD monitor, keyboard/touchpad and 32 port CAT5 kvm in a 1U height console
  • Standard Cat5 connection-Connect to a server or computer via standard RJ-45 connectors and Cat5e/6 cables
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
  • Support computers with USB keyboard and mouse

Management

  • Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
  • Auto scan feature for monitoring user-selected computer
  • Broadcast mode–operations simultaneously performed on all selected computers
  • Hot pluggable –add or remove computers without having to power down the switch
  • Quickly select your computer by naming the server or inputting SN number of the server
  • On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, and menu

Management

  • Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
  • Auto scan feature for monitoring user-selected computer
  • Broadcast mode–operations simultaneously performed on all selected computers
  • Hot pluggable –add or remove computers without having to power down the switch
  • Quickly select your computer by naming the server or inputting SN number of the server
  • On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, and menu

High Resolution

  • 18.5” TFT LCD monitor with highlight, high definition and high resolution
  • Resolution is up to 1920 x 1080 @60Hz

High Resolution

  • 18.5” TFT LCD monitor with highlight, high definition and high resolution
  • Resolution is up to 1920 x 1080 @60Hz

Security

  • Two level password security–only authorized users view and control computers
  • Supports one administrator and four user accounts with a separate profile for each

Security

  • Two level password security–only authorized users view and control computers
  • Supports one administrator and four user accounts with a separate profile for each

High Performance Touchpad

  • Touchpad with scroll wheel – Eliminates the need for a separate, external mouse

High Performance Touchpad

  • Touchpad with scroll wheel – Eliminates the need for a separate, external mouse

Keyboard

  • Multi-language support–English, Russian, German, French, UK and Spanish, etc.
  • Full size 99 keys keyboard with integrated number pad

Keyboard

  • Multi-language support–English, Russian, German, French, UK and Spanish, etc.
  • Full size 99 keys keyboard with integrated number pad

Wide Compatibility

  • Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
  • Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Wide Compatibility

  • Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
  • Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

세부 사항

사양

Model LC2832
Computer connections Direct 32
Max 1024
Port emulation Keyboard, mouse PS/2, USB
LCD monitor LCD model FHD TFT
View area 18.47″
Optimum resolution 1920×1080@60Hz
Display color 16.7 M
Brightness 250cd/m²（ T y p ）
Contrast ratio 1000 : 1 （ T y p ）
Pixel pitch(mm) 0.213(H) × 0.213(W)
Mouse X/Y resolution >1000 points / inch,（ 40 points/mm ）
Roll wheel Supports scroll wheel function
Keyboard 99 keys (82 keys main keyboard +17 independent small number pad)
Port selection Front panel pushbuttons, hotkeys, OSD menu
Input power 100V- 240Vac, 50-60Hz, <1.5A
Power consumption 32W
Mounting distance 686-770mm (L=262mm)
Mounting bracket can be customized for other mounting distance
Operating temperature 0 — 50 ℃
Store temperature -20 — 60 ℃
Humidity 0~80% RH, non-condensing
Net weight 12kg
Product dimension (W × D × H) 448mm×560mm×42.5mm
Package dimension (W × D × H) 765mm×615mm×185mm
Optional power input -36V~ -72V DC

패키지 내용물

  • 1x LCD KVM 스위치 (KLC-2832)
  • 1x 전원 코드 (지역별)
  • 1x 빠른 시작 가이드
  • 2x 장착 레일
  • 1x Cat5e 차폐 네트워크 케이블
  • 1x 접지선
